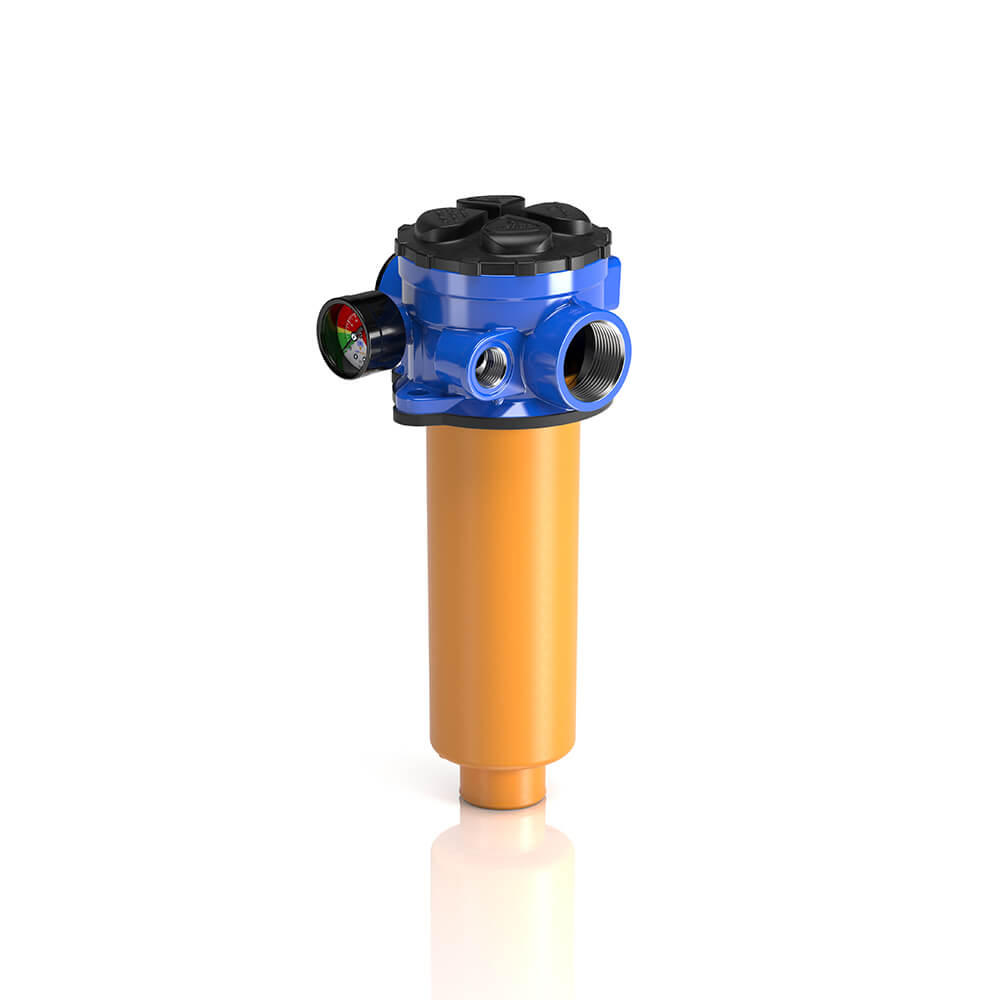

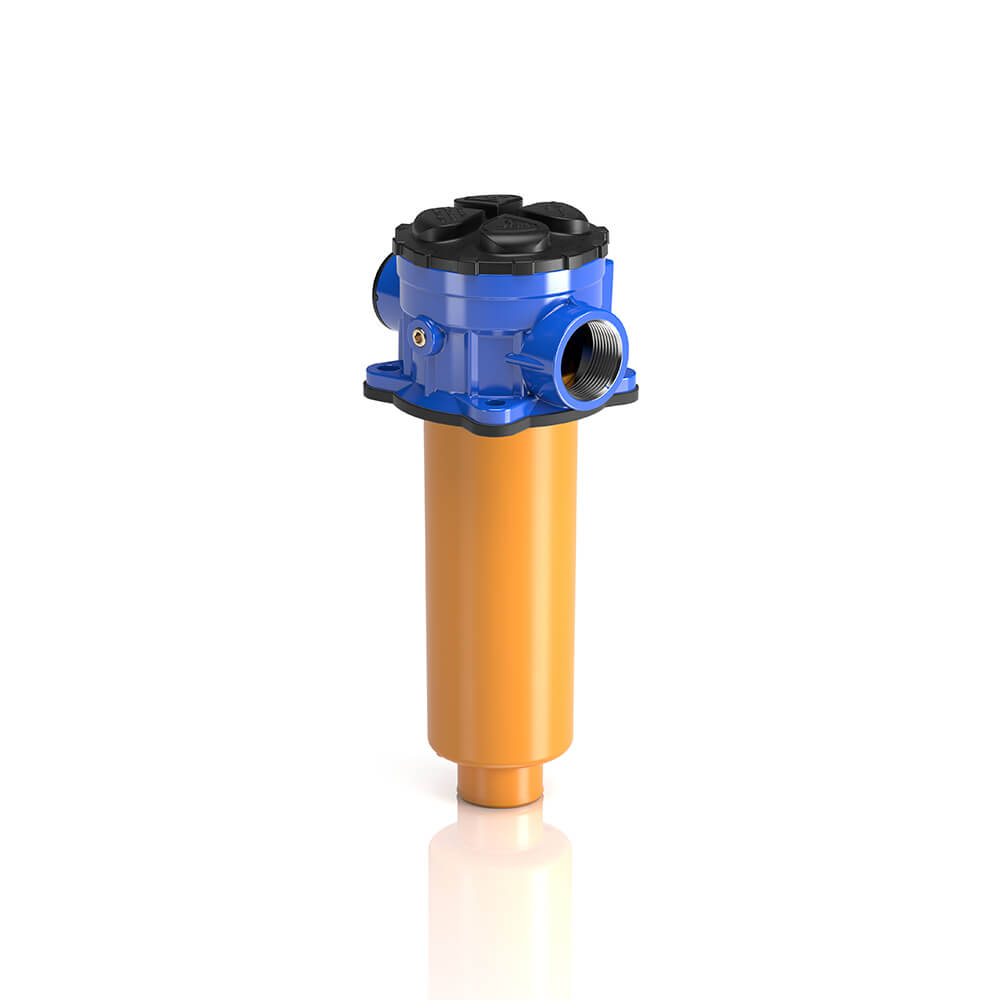

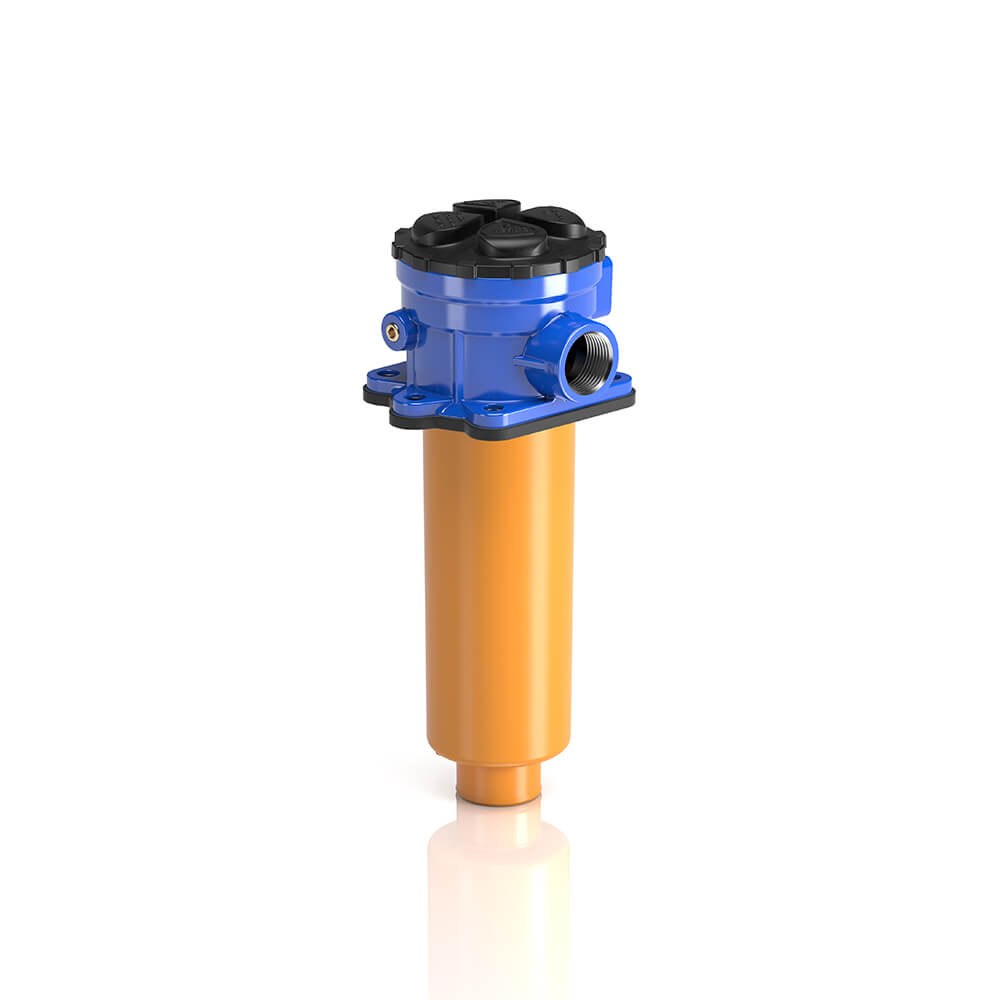

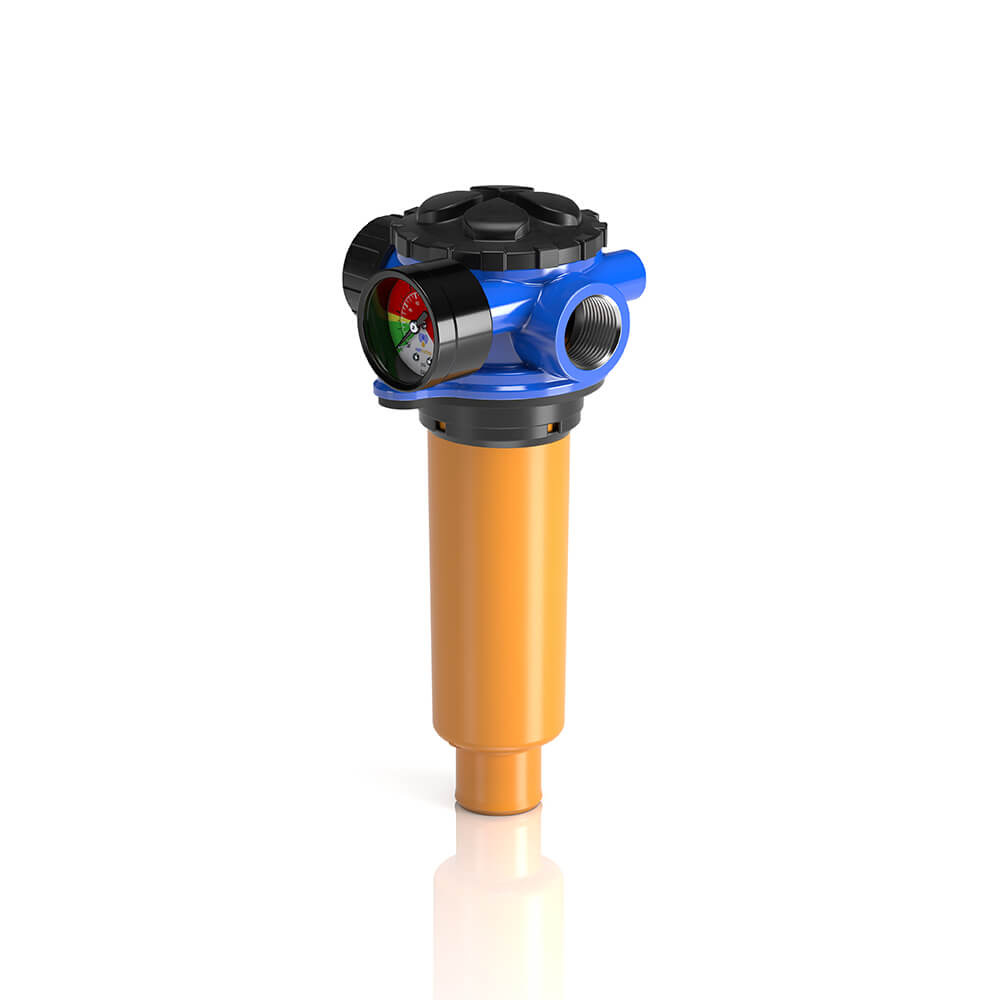

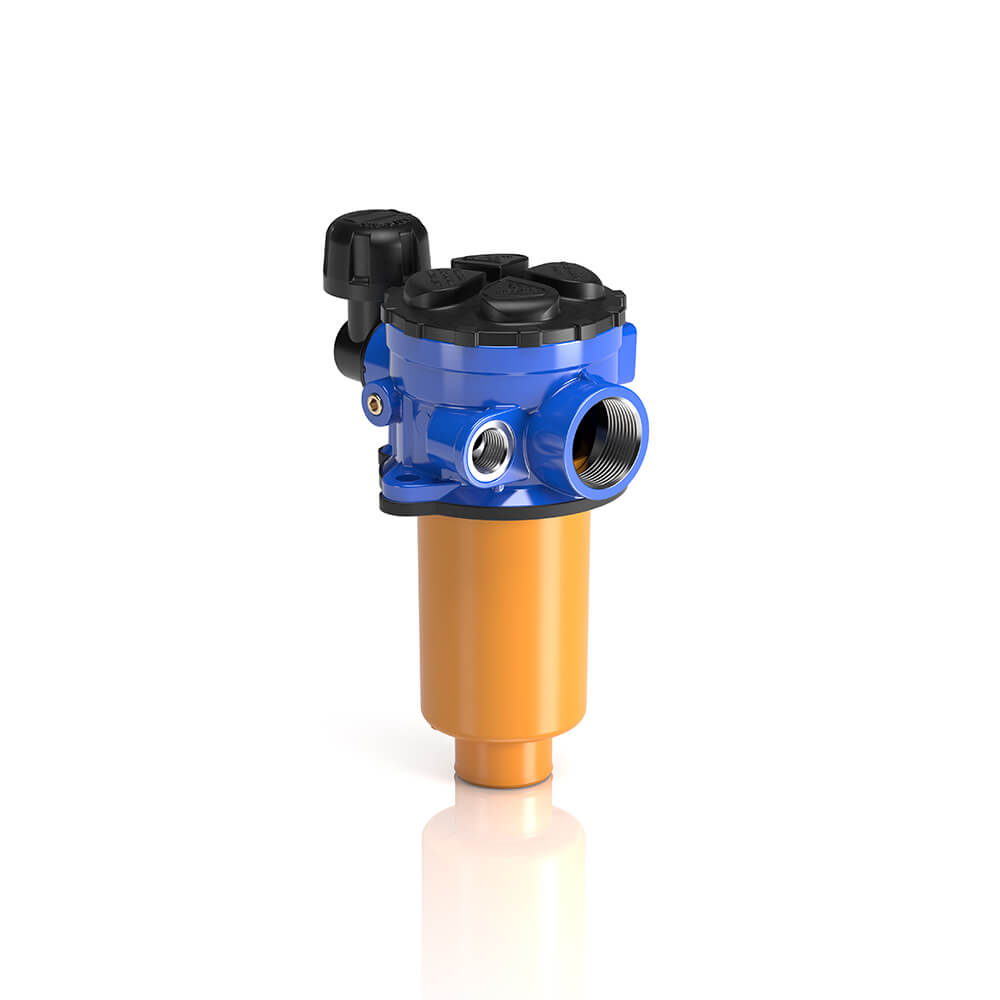

MPTX

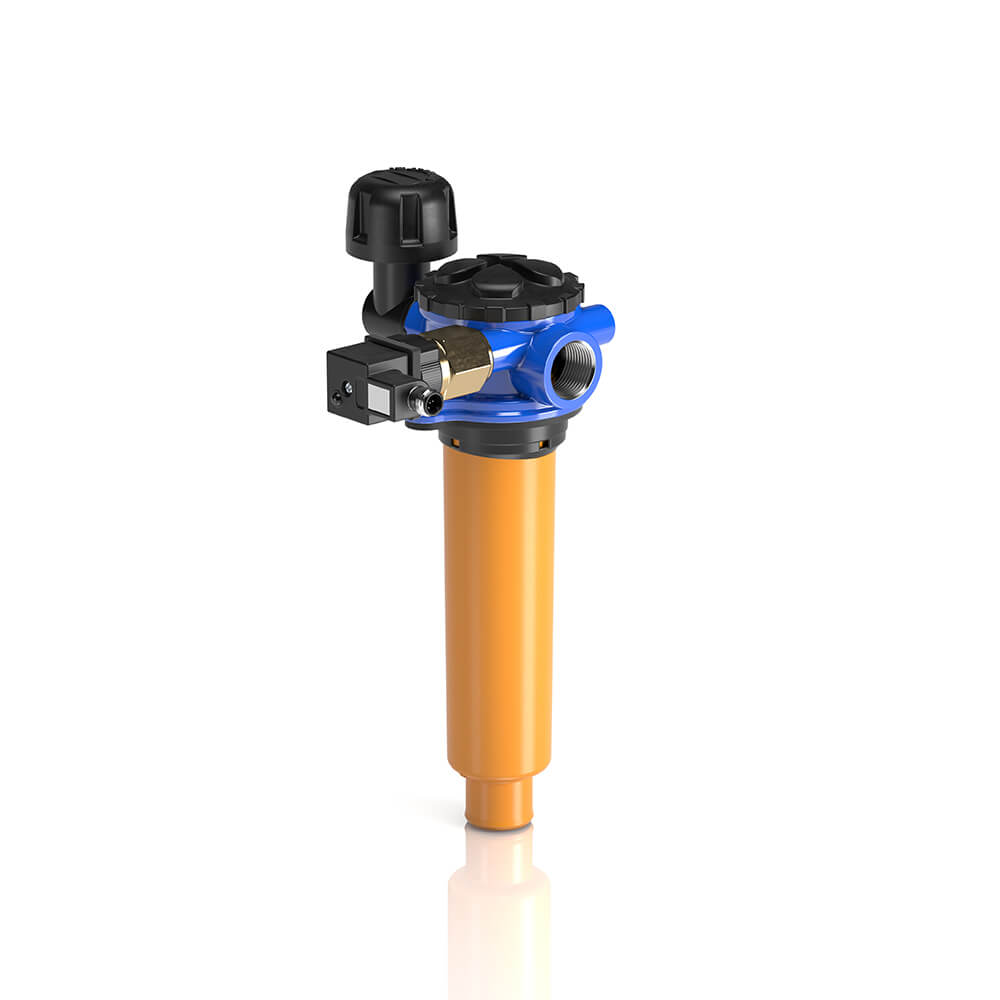

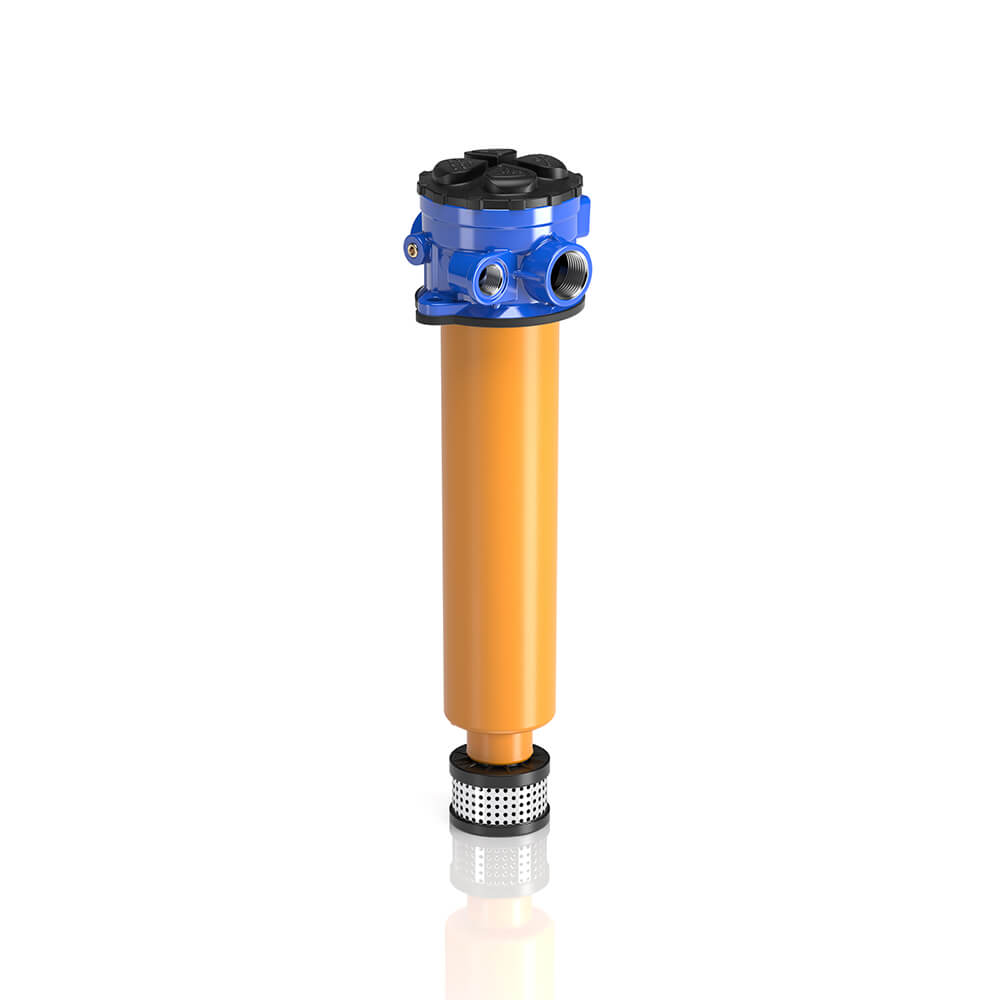

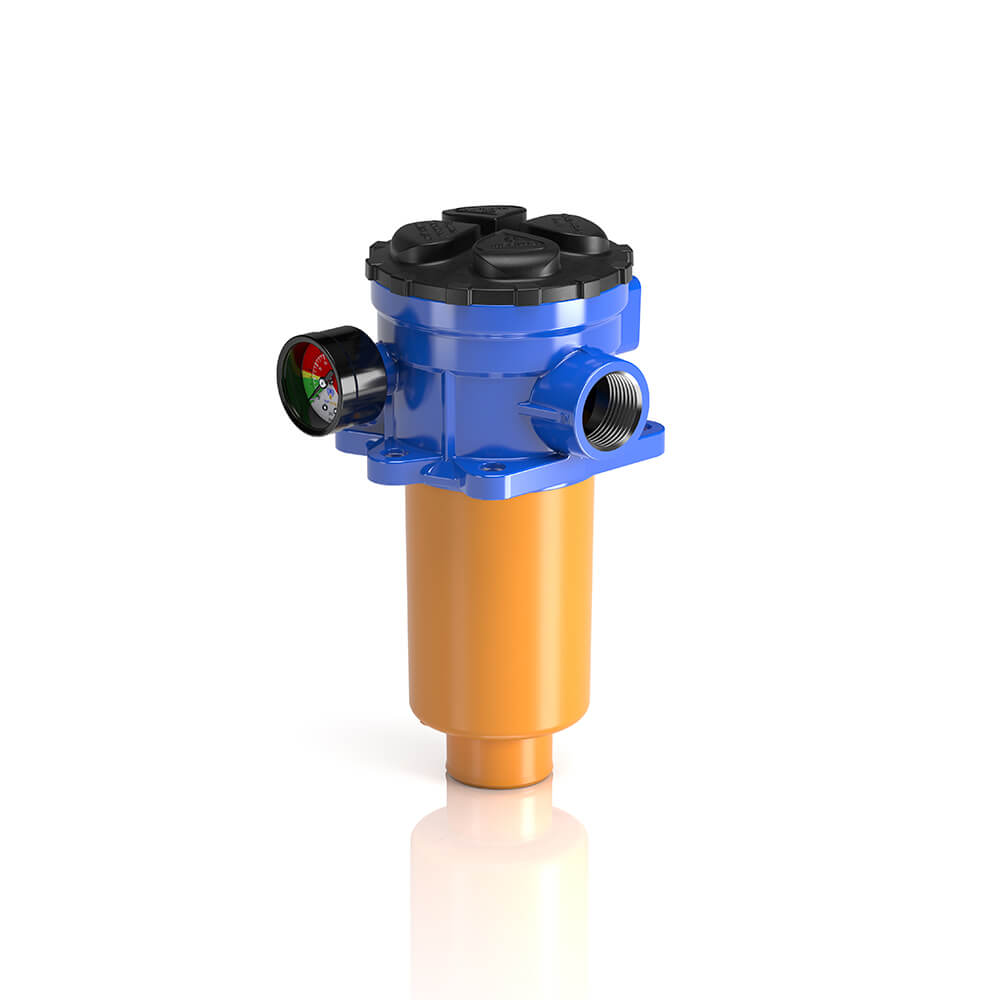

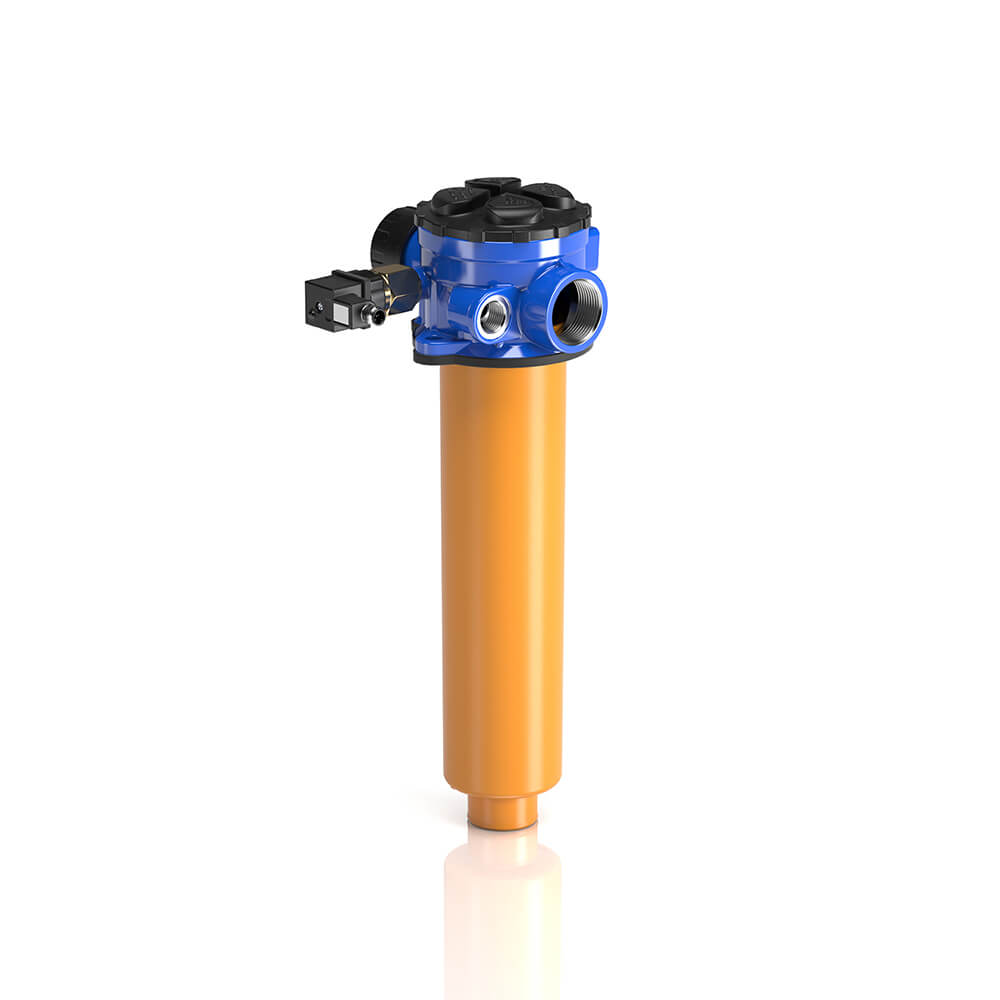

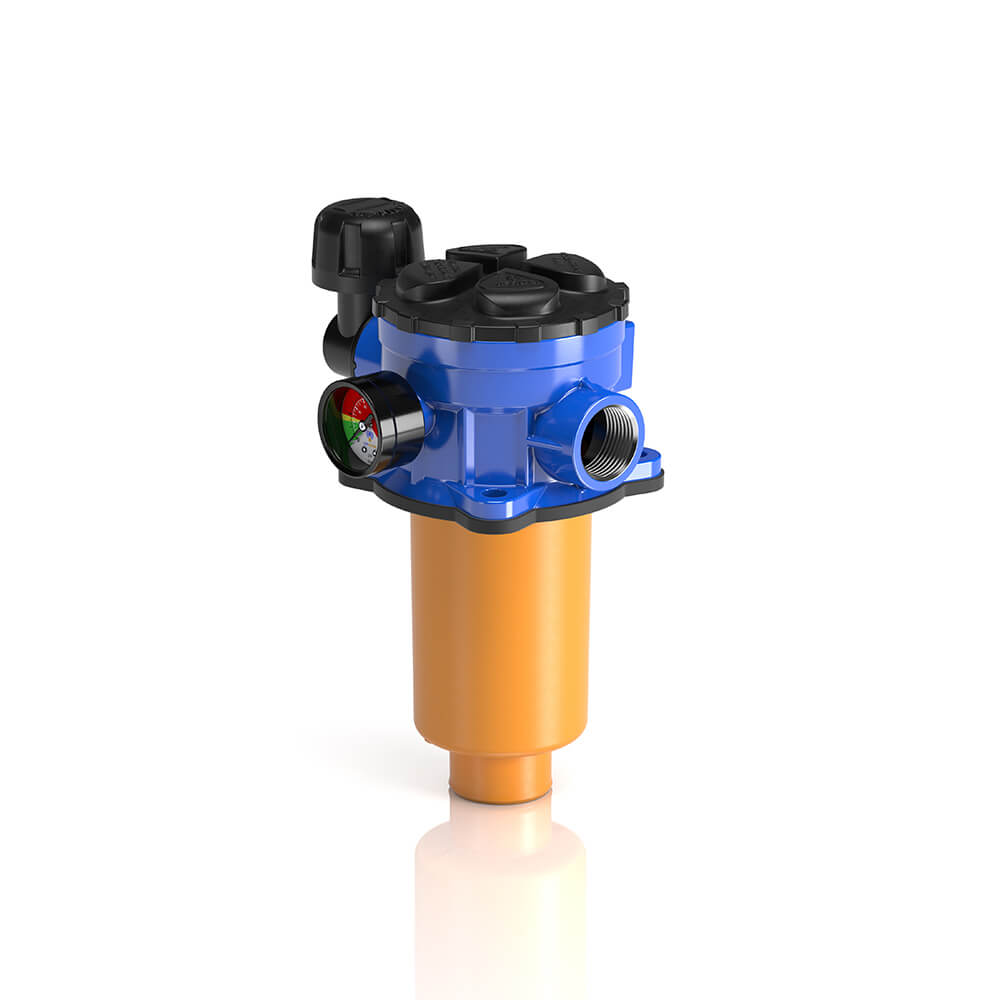

Tank mounted return filter with air breather, filter element oil flow external to internal. Working pressure up to 8 bar (116 psi), flow rates up to 300 l/min (79 gpm), threaded connections from 3/8” to 1 1/4” BSP/NPT/SAE.

FILTER SIZING    3D DOWNLOAD   TECHNICAL BROCHURE
  • FEATURES & BENEFITS
  • TECHNICAL DATA
  • LITERATURE

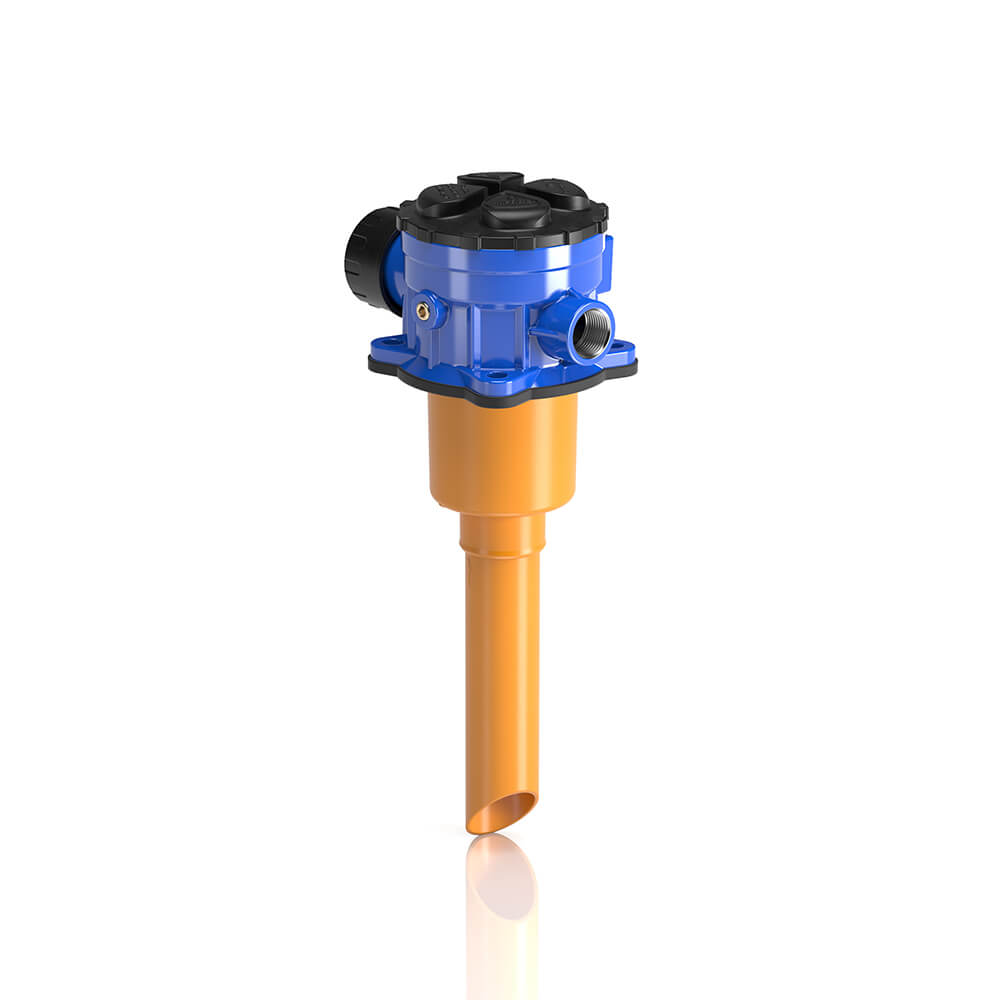

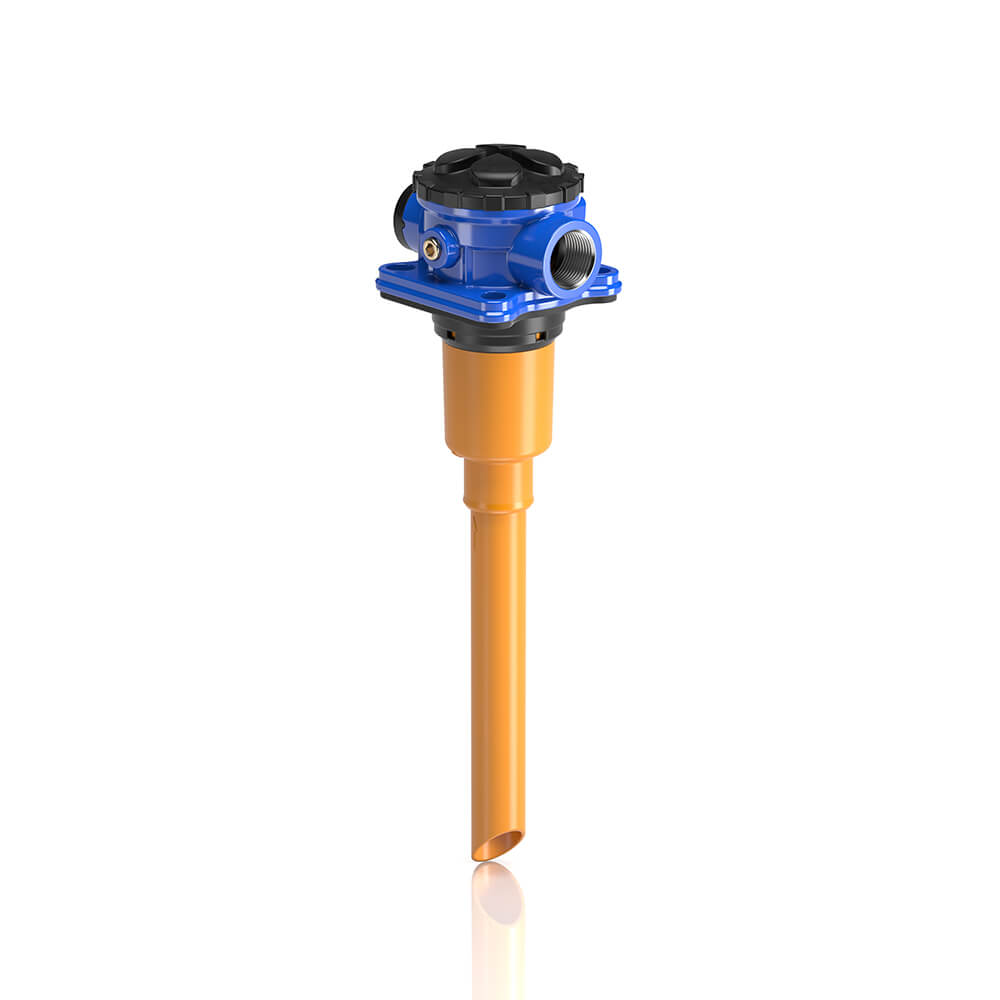

MYclean design (patent pending) to ensure machine reliability, performance, efficiency and ROI by guarantee of original filter elements over the life of the machine. Featuring patented technology, private branding, multiple port options and OEM specific design capability. Available in single or MULTIPORT configurations, with atmospheric or pressurized anti-splash air breather, snap attach extension tube, exit flow diffuser and an oil level dipstick with an incorporated mounting fastener for easy installation; the bowl and element are removable and prevents conatmination from re-entering the tank during element change. The air breather plug is integrated.

See the relevant table for fluid compatibility.

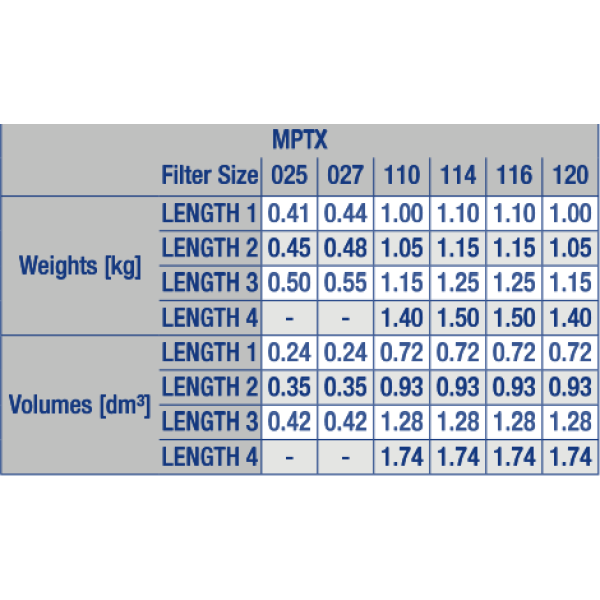

WEIGHTS AND VOLUMES
MPTX

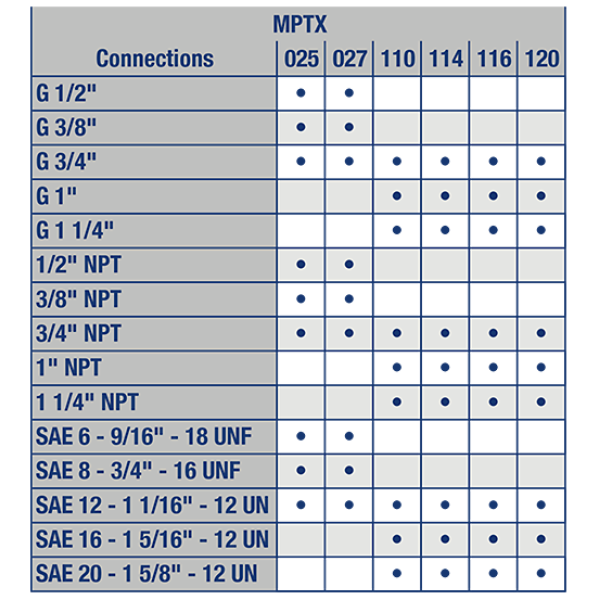

CONNECTIONS
MPTX

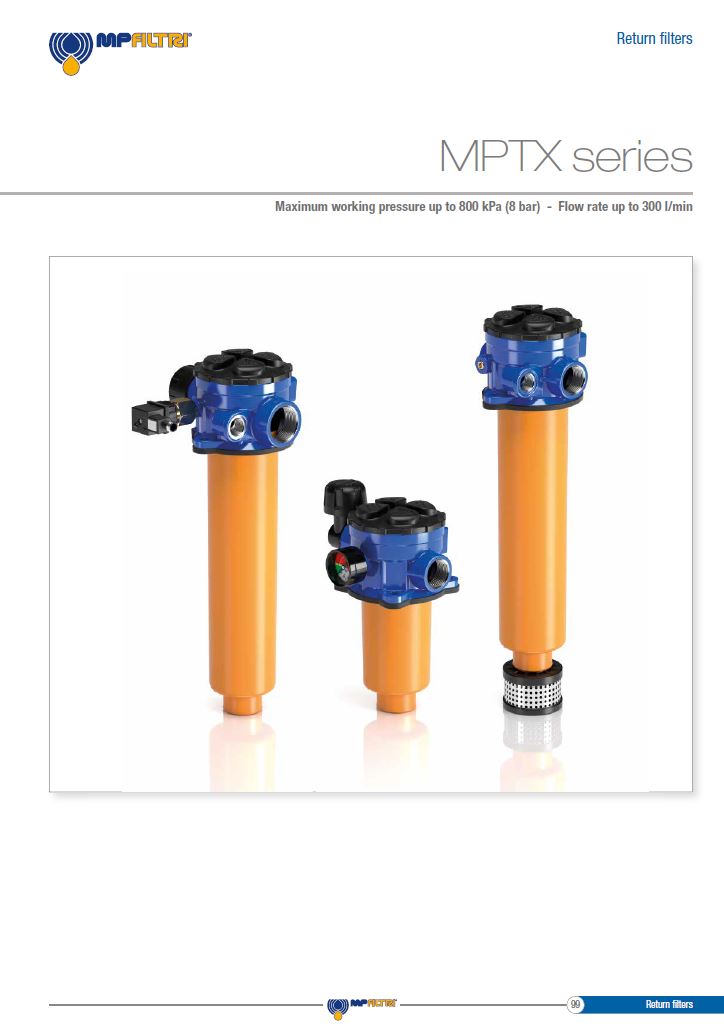

BROCHURES
FILTER ELEMENT

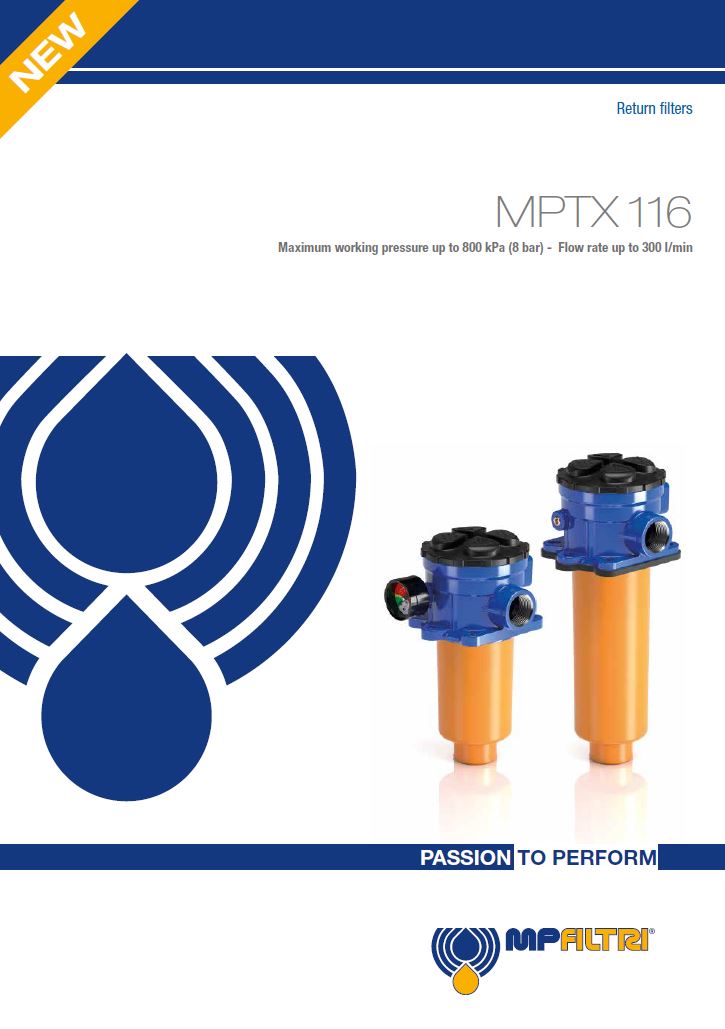

MPTX116 return
