Combination Return / Suction filters are designed to filter an open loop return circuit and provide suction line boost to the closed loop charge pump in hydrostatic transmission applications. Utilizing the 0.5 bar back pressure valve ensures positive pressure to the charge pump inlet minimizing the potential for cavitation, especially during cold start conditions. Many options are available including suction line safety screen and the possiblity to mount on the side or bottom of the tank with anti-drain protection when servicing the filter element.

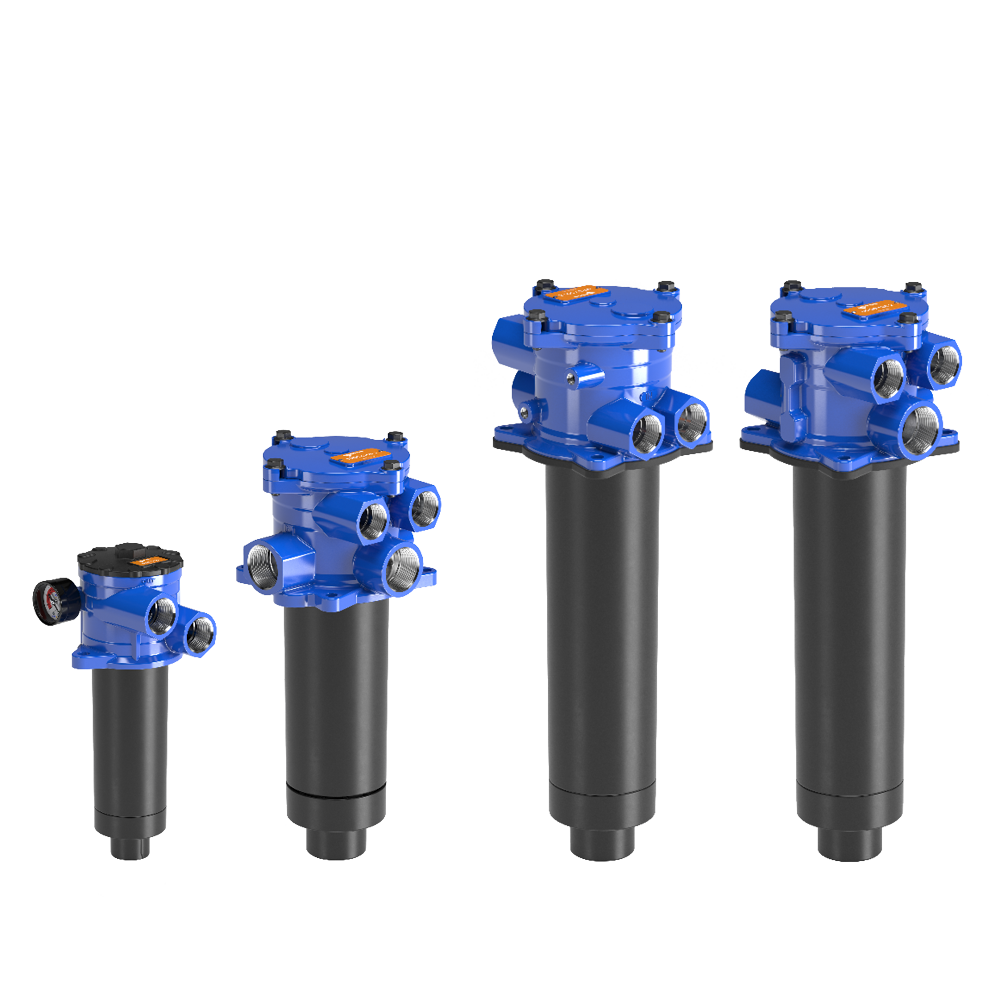

Tank top Return/Suction filter
MYclean Design
Pmax 10 bar, 145 psi
Qmax 250 l/m, 66 gpm
Mobile machinery with closed loop system

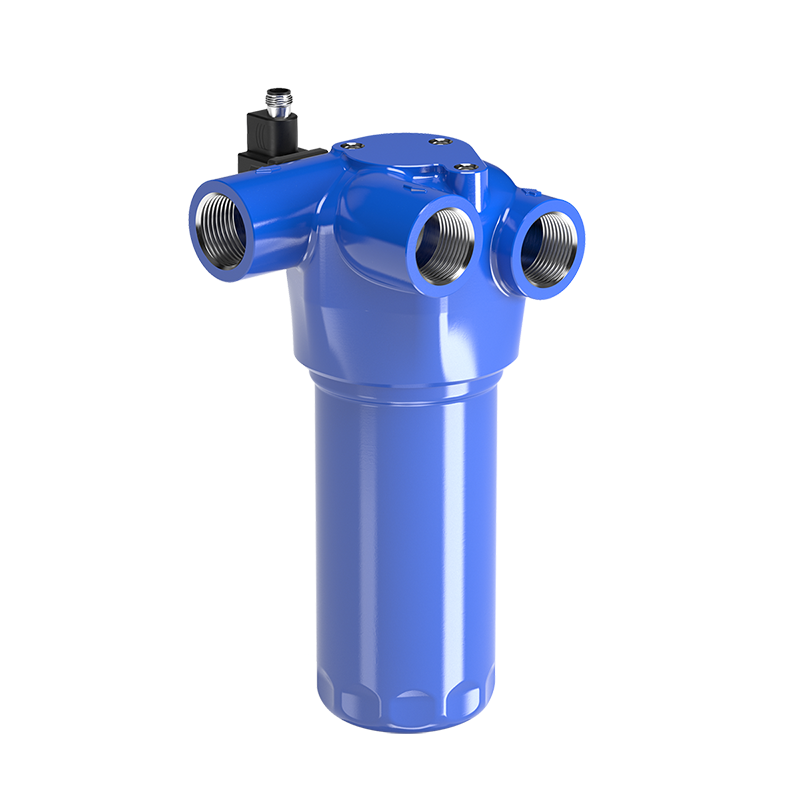

In-line combination return/suction filter
Multiport Design
Pmax 80 bar, 1160 psi
Qmax 120 l/m, 32 gpm
Mobile machinery with closed loop system
