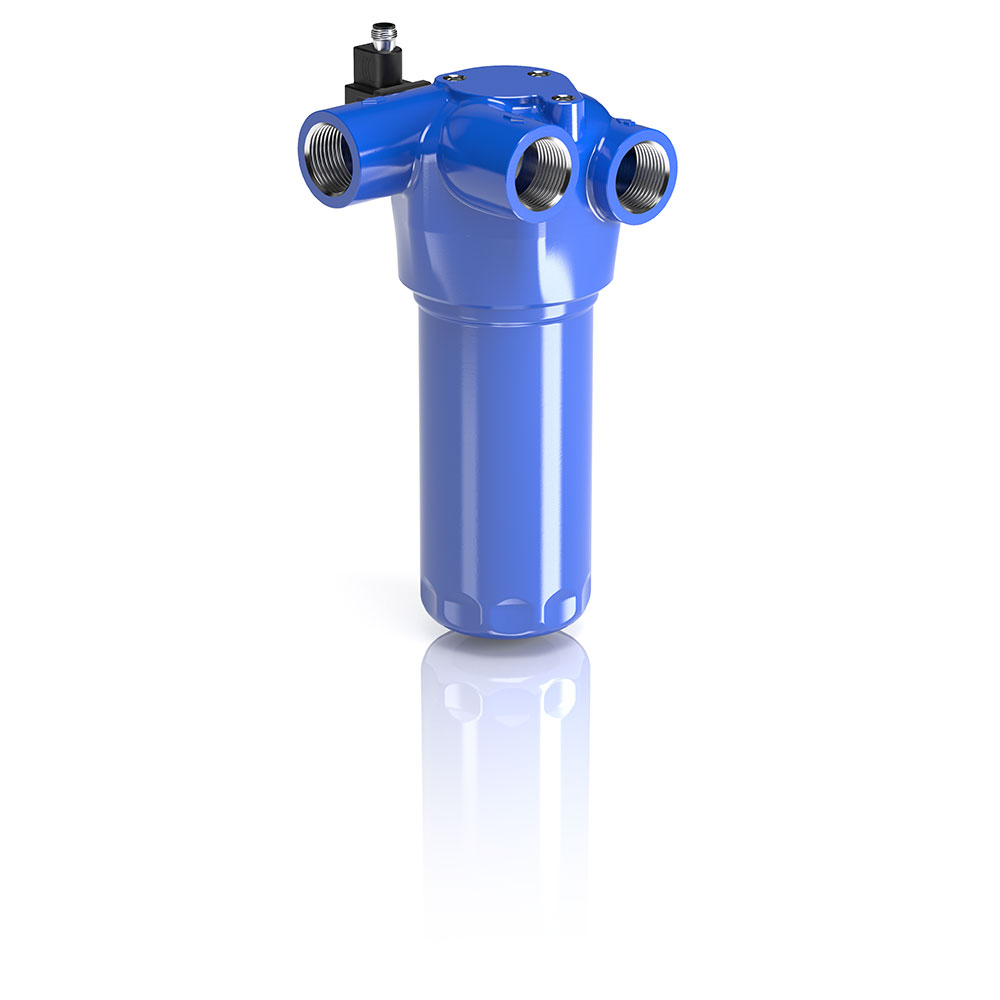

LMP 124 MULTIPORT

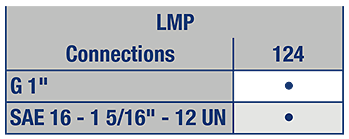

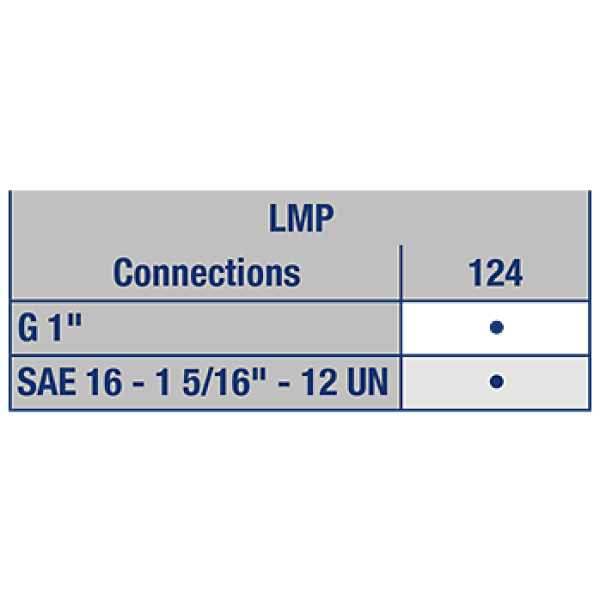

In-line combined “Return/Suction” filter for mobile machinery. Working pressure up to 80 bar (1160 psi), flow rates up to 200 l/min (53 gpm), threaded connections 1” BSP/SAE.

FILTER SIZING    3D DOWNLOAD   TECHNICAL BROCHURE
  • FEATURES & BENEFITS
  • LITERATURE
  • VIDEO
Available with MULTIPORT design, Specifically designed for hydrostatic transmission applications with open loop auxiliary circuits, filtering the open loop return flow and provide the charge pump suction line with 0.5 bar pre-charge to avoid cavitation during cold start conditions. Various port options features with combined return/suction capabilities with various valve options.
CATALOGS
Return-Suction Catalogue

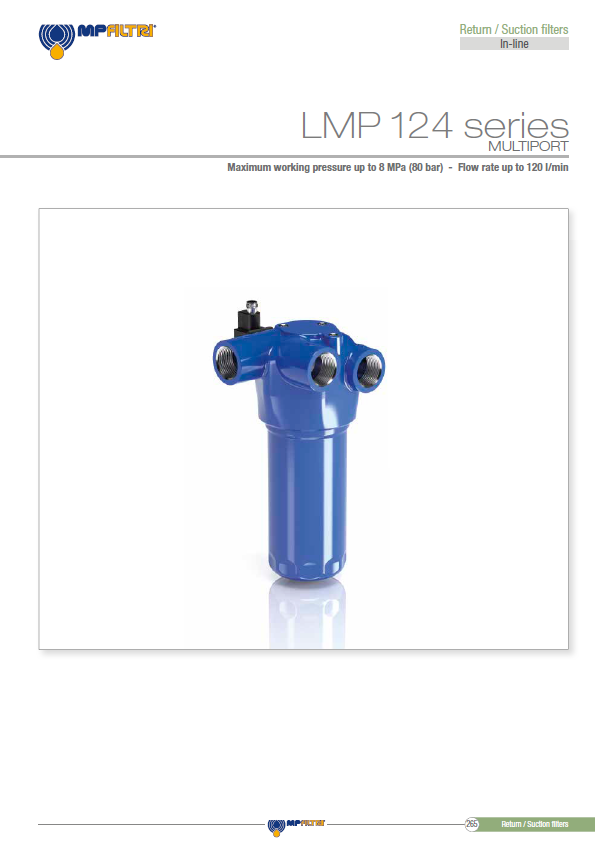

LMP124 MULTIPORT return/suction
Hydraulic Filtration Catalogue
BROCHURES
Hydraulic Filtration Product Range
Product range
