MRSX

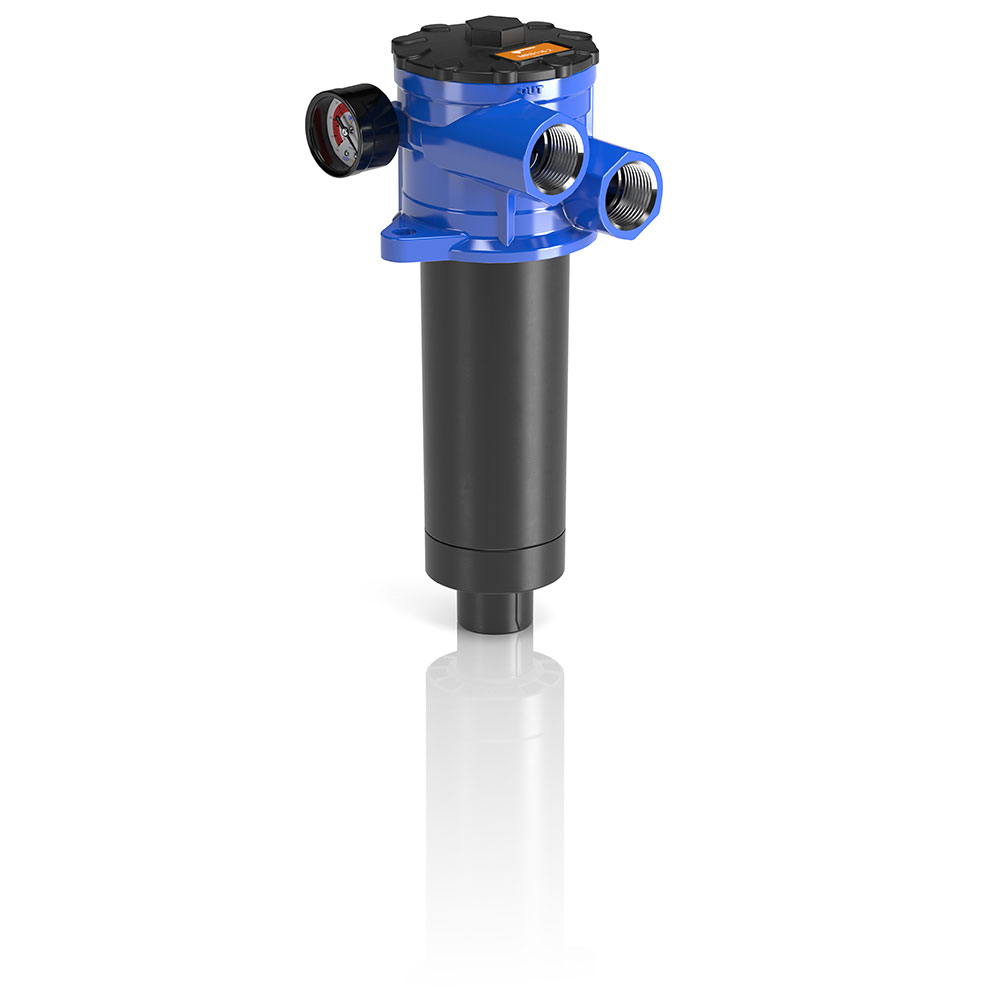

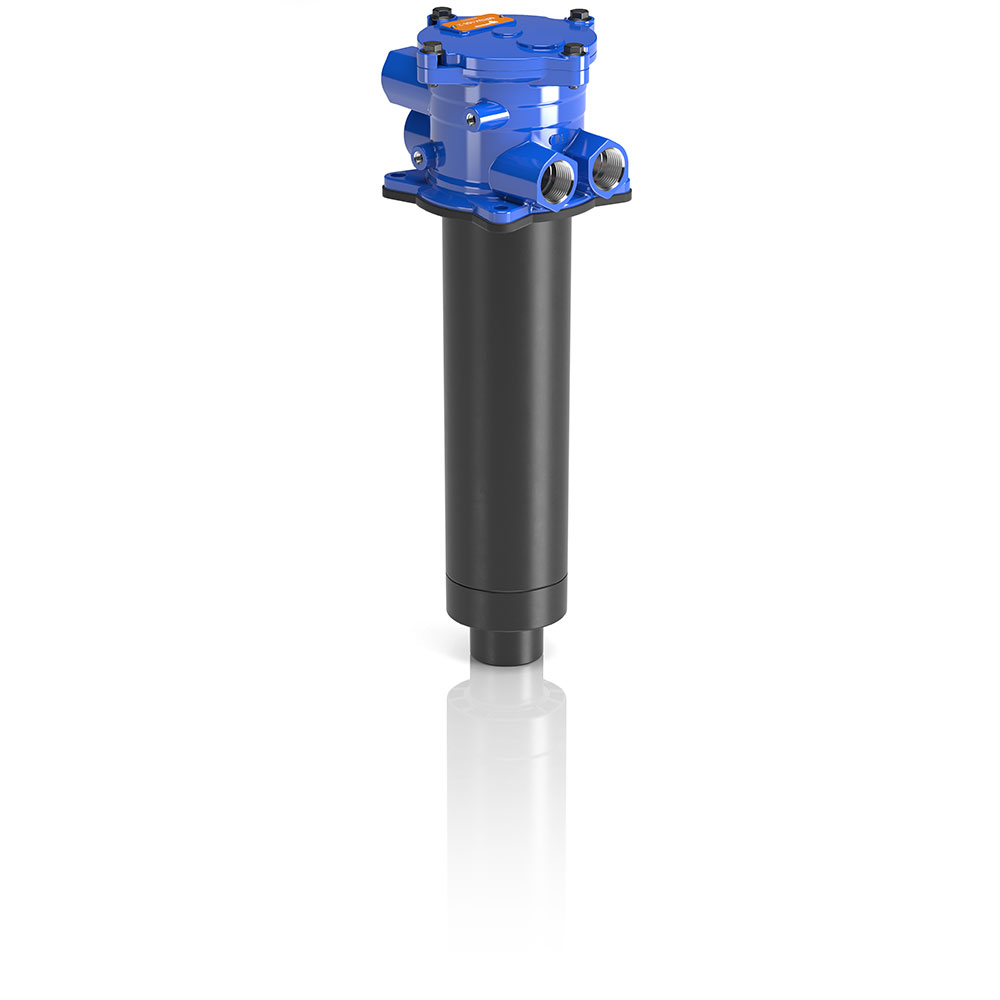

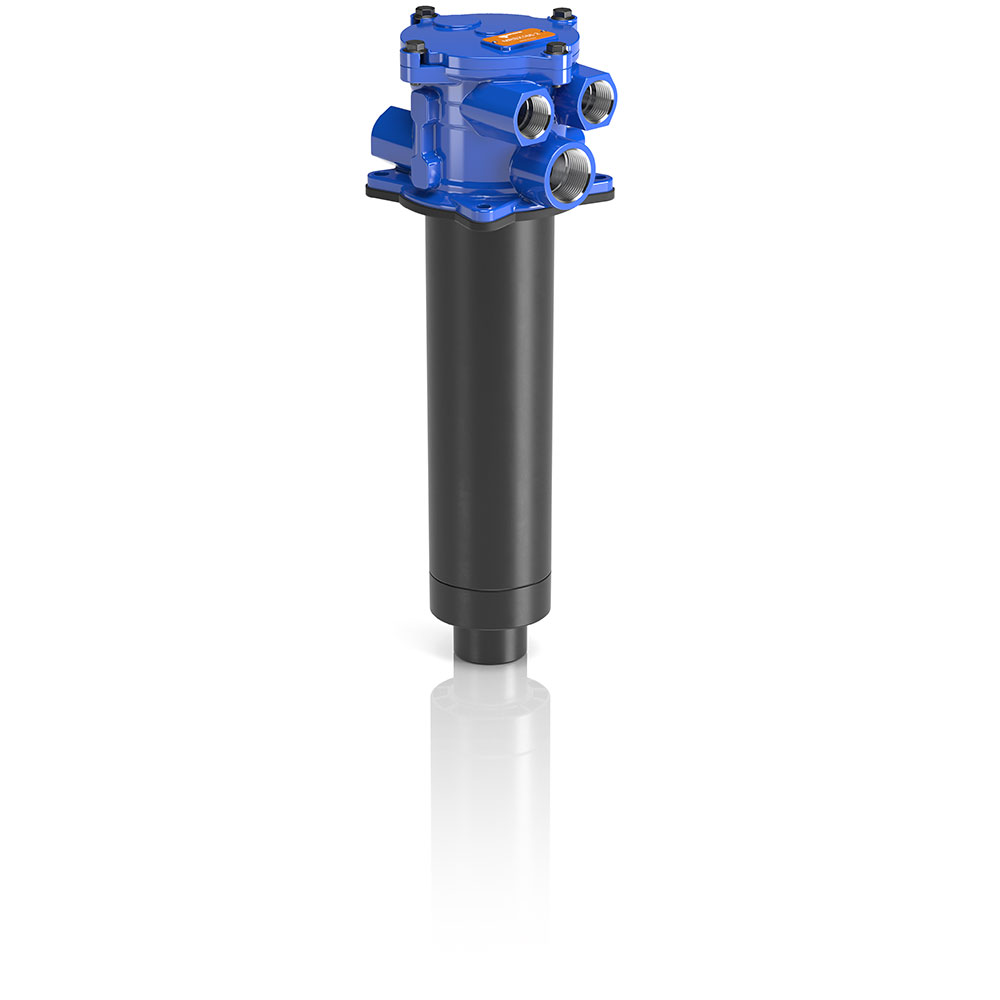

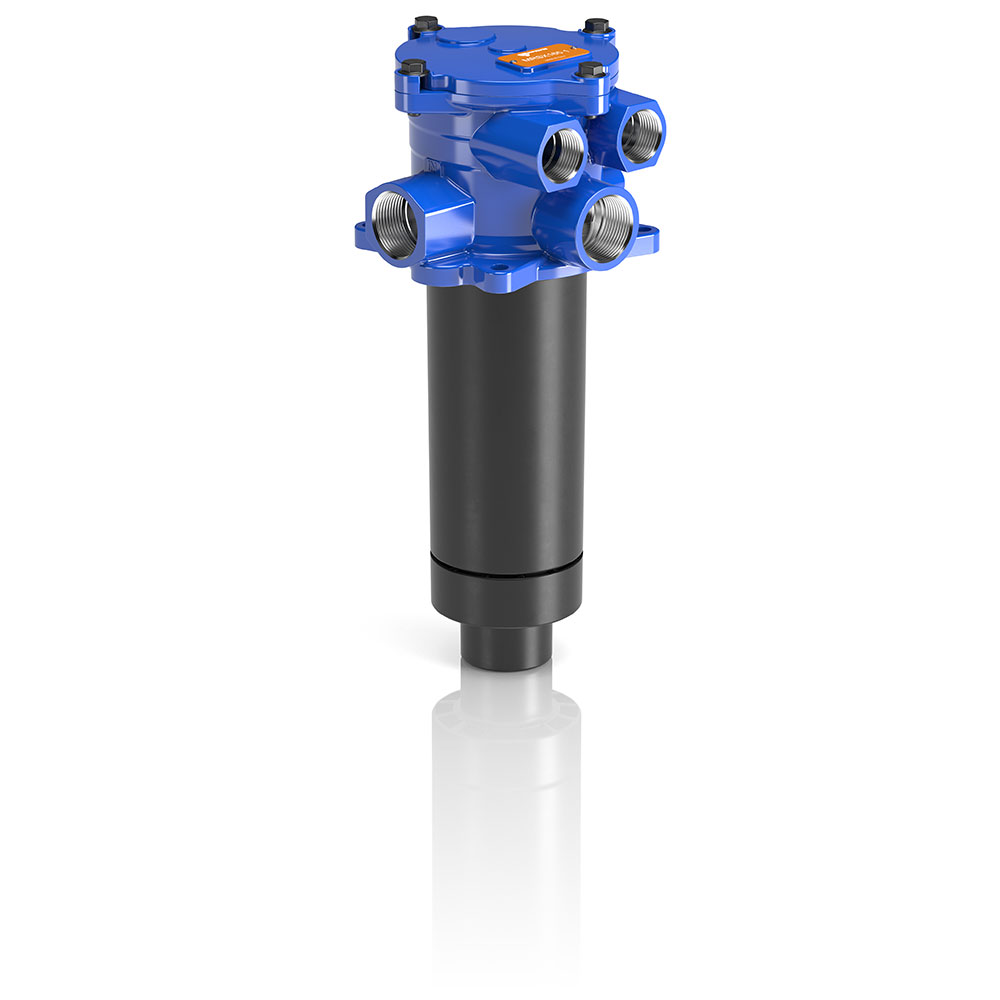

Tank top Return/Suction filter for mobile machinery. Working pressure up to 10 bar (145 psi), flow rates up to 300 l/min (79 gpm), threaded connections from 3/4” to 1 1/4” BSP/NPT/SAE.

FILTER SIZING    3D DOWNLOAD   TECHNICAL BROCHURE
  • FEATURES & BENEFITS
  • TECHNICAL DATA
  • LITERATURE
MYclean design to ensure machine reliability, performance, efficiency and ROI by guarantee of original filter elements over the life of the machine. Featuring patented technology, private branding, multiple port and valve circuit options along with OEM specific design capability. Specifically designed for hydrostatic transmission applications with open loop auxiliary circuits, filtering the open loop return flow and provide the charge pump suction line with 0.5 bar pre-charge to avoid cavitation during cold start conditions.

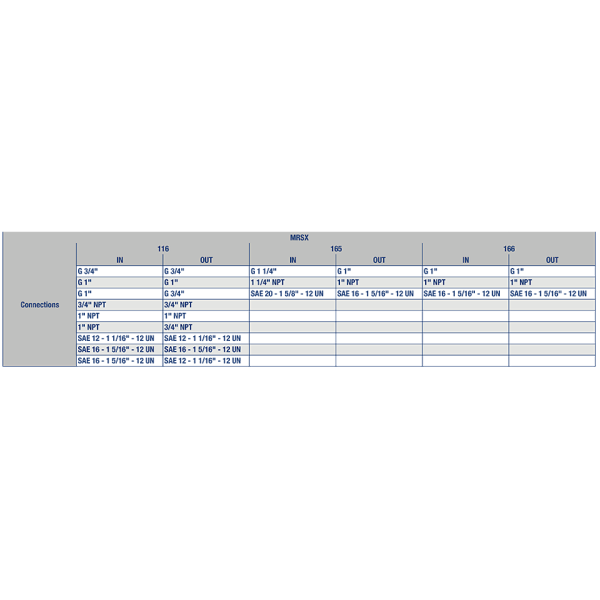

CONNECTIONS
MRSX

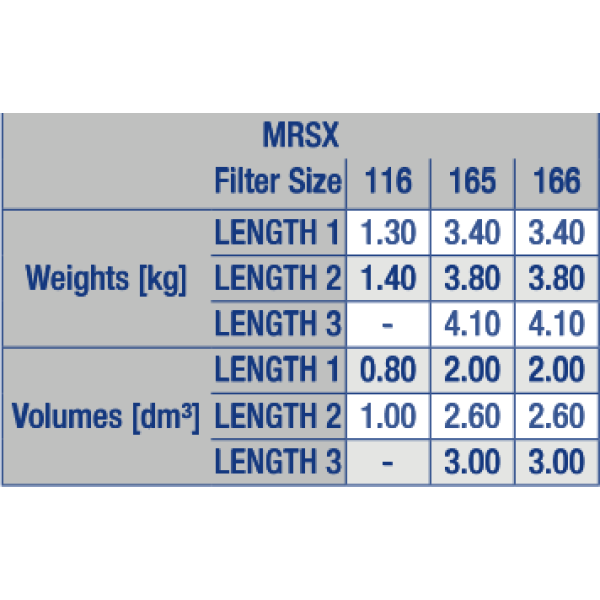

WEIGHTS AND VOLUMES
MRSX
CATALOGS

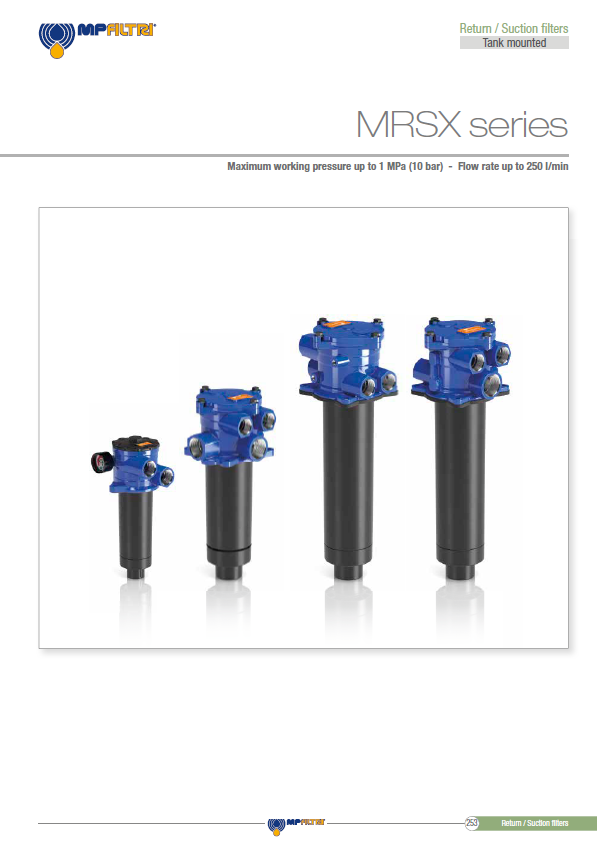

Return-Suction Catalogue

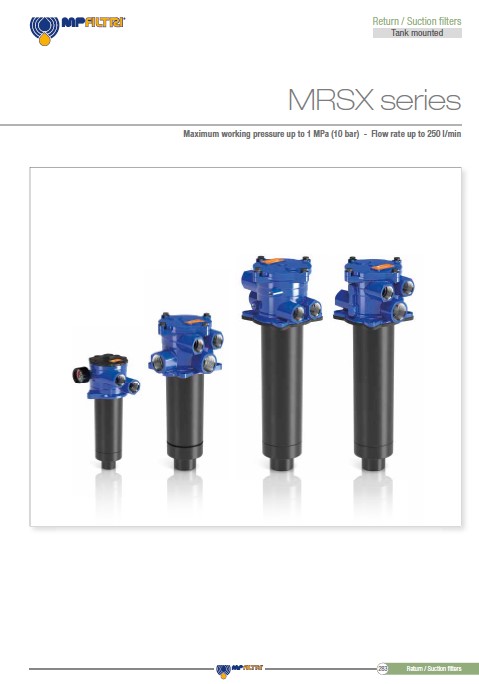

MRSX return/suction
Hydraulic Filtration Catalogue
BROCHURES
MYclean brochure
Hydraulic Filtration brochure
Product range brochure
