IN-LINE FILTERS, > 80 BAR (HIGH PRESSURE)

High pressure filters are designed to withstand the maximum pressure of the system and are sized according to the specific flow rate required. Featuring robust build quality, these fatigue rated filters are designed to thrive under high working pressures and offer exceptional protection to sensitive components downstream of the filters. A wide range of models are available to satisfy all needs, from low to high flow rates, with a wide choice of filter elements to ensure maximum circuit protection. Available with threaded, flanged or manifold connections to directly integrate into circuit control blocks and manifolds. They are also available in duplex configuration for continuous filtration when the plant or system is in operation without any interruptions.

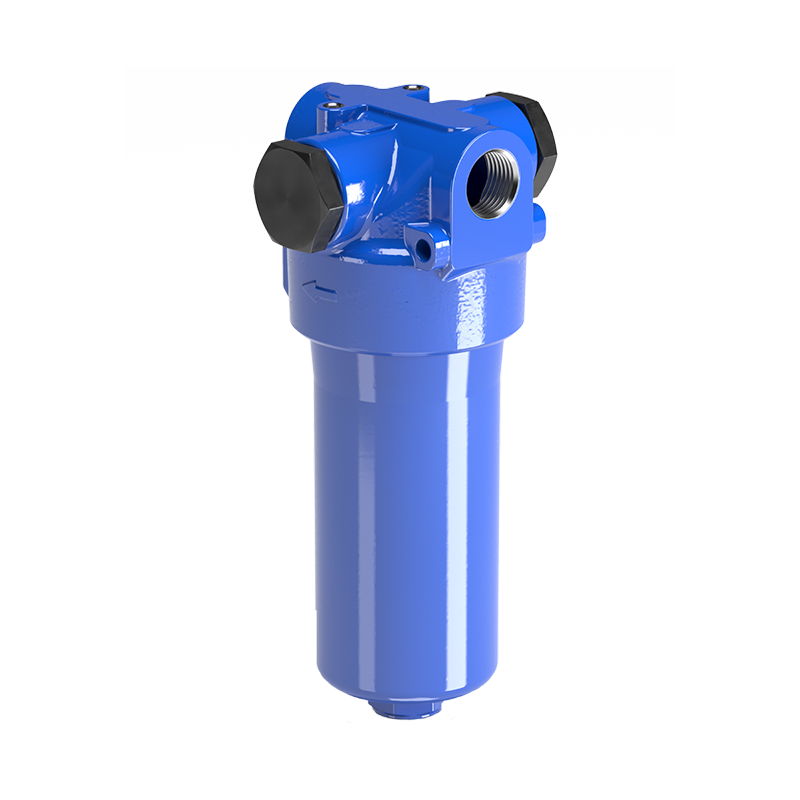

FMP 039

In-line aluminium pressure filter

Pmax 110 bar, 1595 psi
Qmax 80 l/m, 21 gpm

Low flow applications, ideal for pilot lines

FMP

In-line high pressure filter

In-line high pressure filter with optional check valve

Pmax 320 bar, 4640 psi
Qmax 500 l/m, 132 gpm

Industrial & mobile applications suitable for various fluid types

FHP

In-line high pressure

With optional check valve and/or reverse flow valve

Pmax 420 bar, 6090 psi
Qmax 630 l/m, 166 gpm

Industrial and mobile applications suitable for various fluid types

FMMX 050

In-line High pressure filter for mobile applications

For mobile applications

Pmax 420 bar, 6090 psi
Qmax 154 l/m, 41 gpm

Light-weight, ideal for mobile applications, suitable for various fluid types

FMM 050

In-line High pressure filter for mobile applications

For mobile applications

Pmax 420 bar, 6090 psi
Qmax 300 l/m, 79 gpm

Light-weight, ideal for mobile applications, suitable for various fluid types

FMM 150

In-line High pressure filter for mobile applications

For mobile applications

Pmax 420 bar, 6090 psi
Qmax 300 l/m, 79 gpm

Light-weight, ideal for mobile applications, suitable for various fluid types

FMMX 150

In-line High pressure filter for mobile applications

For mobile applications

Pmax 420 bar, 6090 psi
Qmax 300 l/m, 79 gpm

Light-weight, ideal for mobile applications, suitable for various fluid types

FHA 051

In-line High pressure filter

For variable pressure

Pmax 560 bar, 8120 psi
Qmax 150 l/m, 40 gpm

Ideal for variable pressure mobile applications, suitable for various fluid types

FHD

High pressure duplex filter

Duplex

Pmax 350 bar, 5075 psi
Qmax 250 l/m, 66 gpm

Industrial application where continuous use is premium suitable for various fluid types
