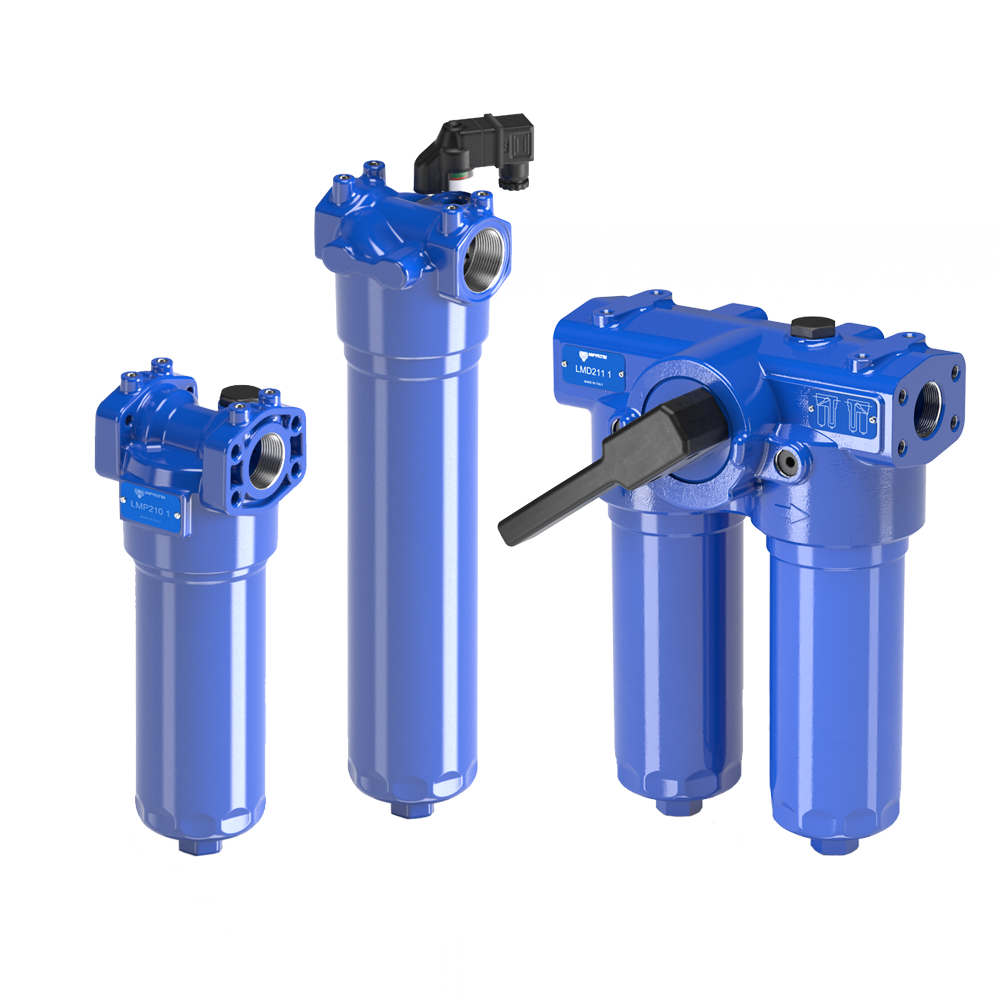

Designed as in-line return, pressure or off-line recirculation filtration protecting the most sensitive hydraulic system components. Boasting a robust design and a wide choice of options, the LMP series offers a diverse range of housing models and elements to suit low to high flow rates and maximum circuit protection. LMP filters are available as in-line threaded, in-line multi-ported and flanged connections to integrated into circuit control blocks, manifolds/headers. LMP filters are also available in duplex configurations for continuous filtration without any system service interruptions.
LFEX ELIXIR® SERIES New in line filters
Low & medium pressure
Pmax 16 bar, 232 psi
Qmax 300 l/m, 79 gpm
A new concept in spin-on type filtration; versatile, low cost and kinder to the environment
LMP 110 - 120 - 123 MULTIPORTIn-line filter
Multiport design
Pmax 80 bar, 1160 psi
Qmax 175 l/m, 46 gpm
Mobile applications where maintenance and assembly maybe be space restricted
LMP 210 - 211In-line filter
Medium pressure
Pmax 60 bar, 870 psi
Qmax 365 l/m, 96 gpm
Mobile and industrial applications suitable for use with both mineral oils and water glycols.
LMP 400 - 401 - 430 - 431Medium pressure / high flow rate filter
Pmax 60 bar, 870 psi
Qmax 780 l/m, 206 gpm
Large industrial applications plus flushing rigs suitable for various fluid applications
LMP 950 - 951Inverted low pressure / very high flow rate filter
Pmax 30 bar, 435 psi
Qmax 2400 l/m, 634 gpm
Large industrial applications plus flushing rigs suitable for various fluid applications
LMP 952 - 953 - 954Low pressure / very high flow rate filter in parallel
Pmax 25 bar, 363 psi
Qmax 4500 l/m, 1189 gpm
Large industrial applications suitable for various fluid applications
LMD 211In-line duplex filter (60 bar)
Pmax 60 bar, 870 psi
Qmax 200 l/m, 53 gpm
Small industrial applications where continuous operation is premium
LMD 400 - 401 - 431In-line duplex filter (16 bar), medium flow rate
With various mounting options
Pmax 16 bar, 232 psi
Qmax 600 l/m, 159 gpm
Large industrial applications where continuous operation is premium
LMD 951Duplex (16 bar), high flow rate, upside down mounting
In-line duplex filter, high flow rate, with various mounting options
Pmax 16 bar, 232 psi
Qmax 1200 l/m, 317 gpm
Very Large industrial applications where continuous operation is premium
LDP & LDD DIN 24550In-line Medium pressure simplex & duplex filters
DIN 24550 element design
Pmax 60 bar, 870 psi
Qmax 360 l/m, 95 gpm
Large mobile and small industrial applications suitable for use with various fluids
LMP 900 - 901 DIN 24550Low pressure/very high flow rate filter
DIN 24550 element design
Pmax 30 bar, 435 psi
Qmax 2000 l/m, 528 gpm
Large industrial applications plus flushing rigs suitable for various fluid applications
LMP 902 - 903 DIN 24550Low pressure / very high flow rate filter in parallel
Pmax 20 bar, 290 psi
Qmax 3000 l/m, 793 gpm
Large industrial applications suitable for various fluid applications
