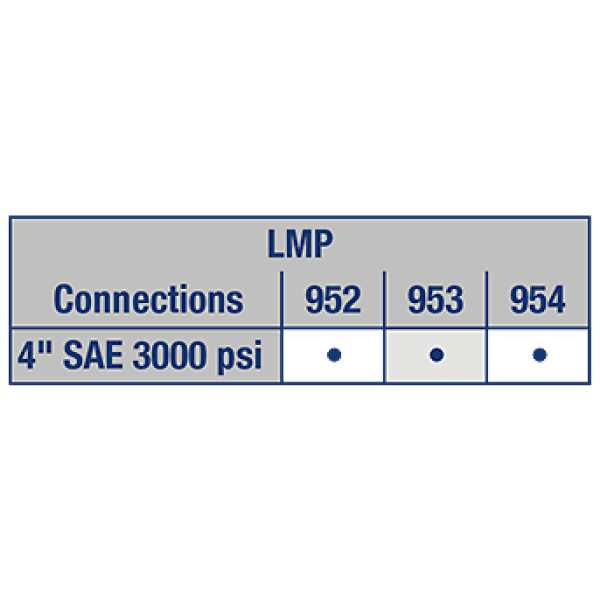

In-line filter, bowl up for manifold/header mounted in parallel. Working pressure up to 25 bar (362 psi), flow rates up to 3000 l/min (634 gpm), SAE code 61 flanged connections 4”.
In-line filters manifold mounted in multiples of 2, 3 or 4 for high viscosity and high flow rate applications with a wide range of element media options, including water removal, particularly suited for off-line filtration circuits due to high dirt holding capacity. Upside-down design offers simple element changeout and minimal oil spillage.
See the relevant table for fluid compatibility.
