In-line filters up to 30 bar, DIN 24550, for very high flow rates

REGISTRATION

INFO

REQUEST INFO

LMP 900 - 901 DIN 24550

In-line filter, with filter elements to DIN 24550 specification. Working pressure up to 30 bar (435 psi), flow rates up to 2000 l/min (528 gpm), SAE code 61 flanged connections 3” and 4”.

FILTER SIZING 3D DOWNLOAD TECHNICAL BROCHURE

FEATURES & BENEFITS
TECHNICAL DATA
LITERATURE

In-line filters for high viscosity and high flow rate applications with a wide range of element media options, including water removal per DIN 24550 specification, particularly suited for off-line filtration circuits due to high dirt holding capacity. Bowl up design offers simple element change-out and minimal oil spillage.

See the relevant table for fluid compatibility.

WEIGHTS AND VOLUMES

LMP900_901

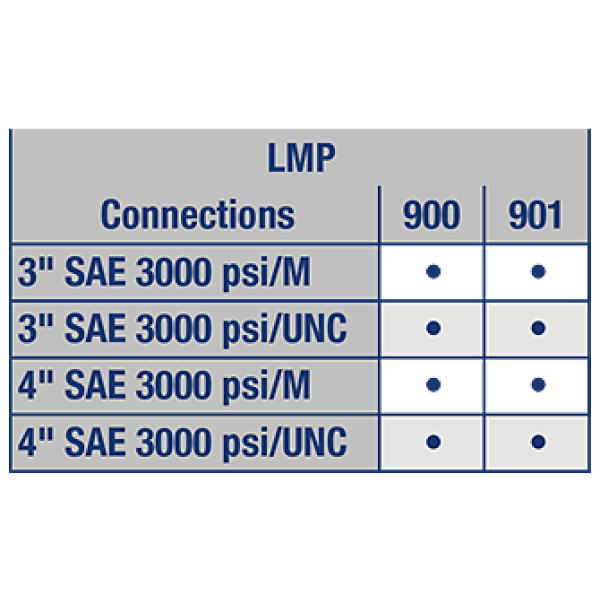

CONNECTIONS

LMP900_901

BROCHURES

FILTER ELEMENT

Water Removal

WIND brochure

Product range

Hydraulic Filtration

CATALOGUES

Low & Medium Pressure filters

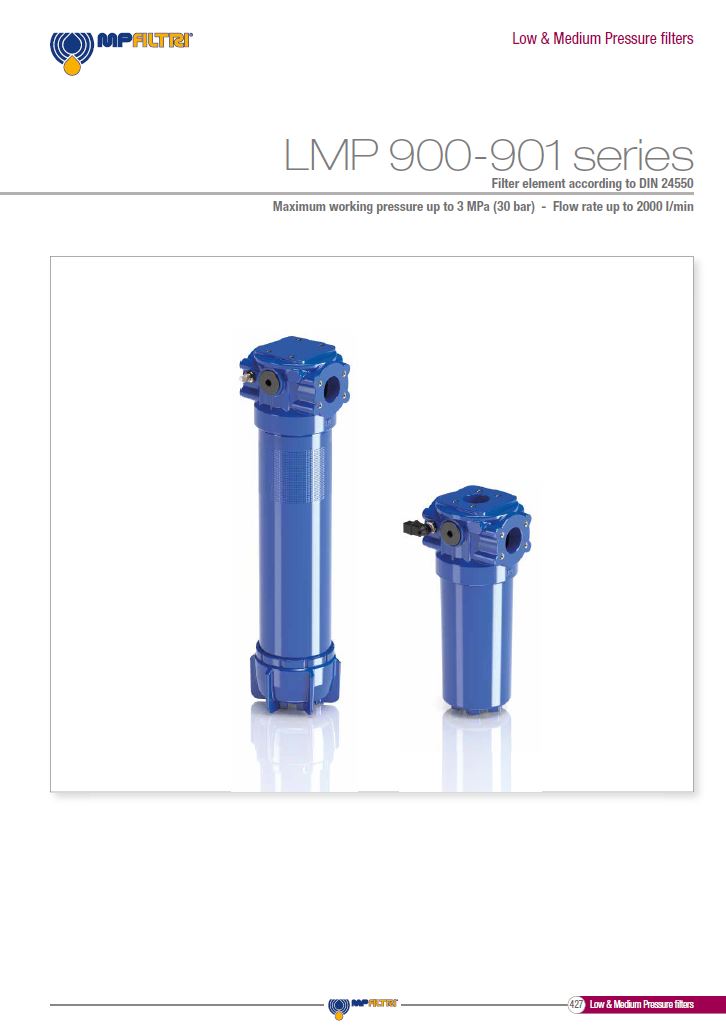

LMP900-901 low and medium pressure

Hydraulic Filtration

Low medium pressure accessories
