Return filters perform the task of filtering fluid and preventing particles from entering the system externally or from internal wear and tear of components. These filters are normally mounted to the reservoir fully or semi-immersed. The position of the filters ensures returning fluid takes place in an immersed condition in all operating conditions, preventing the creation of foam and vortexes in the tank that can cause aeration and cavitation in pumps. For convenience the bowl and filter element can be removed from the housing to service without disconnecting the filter from the rest of the system.

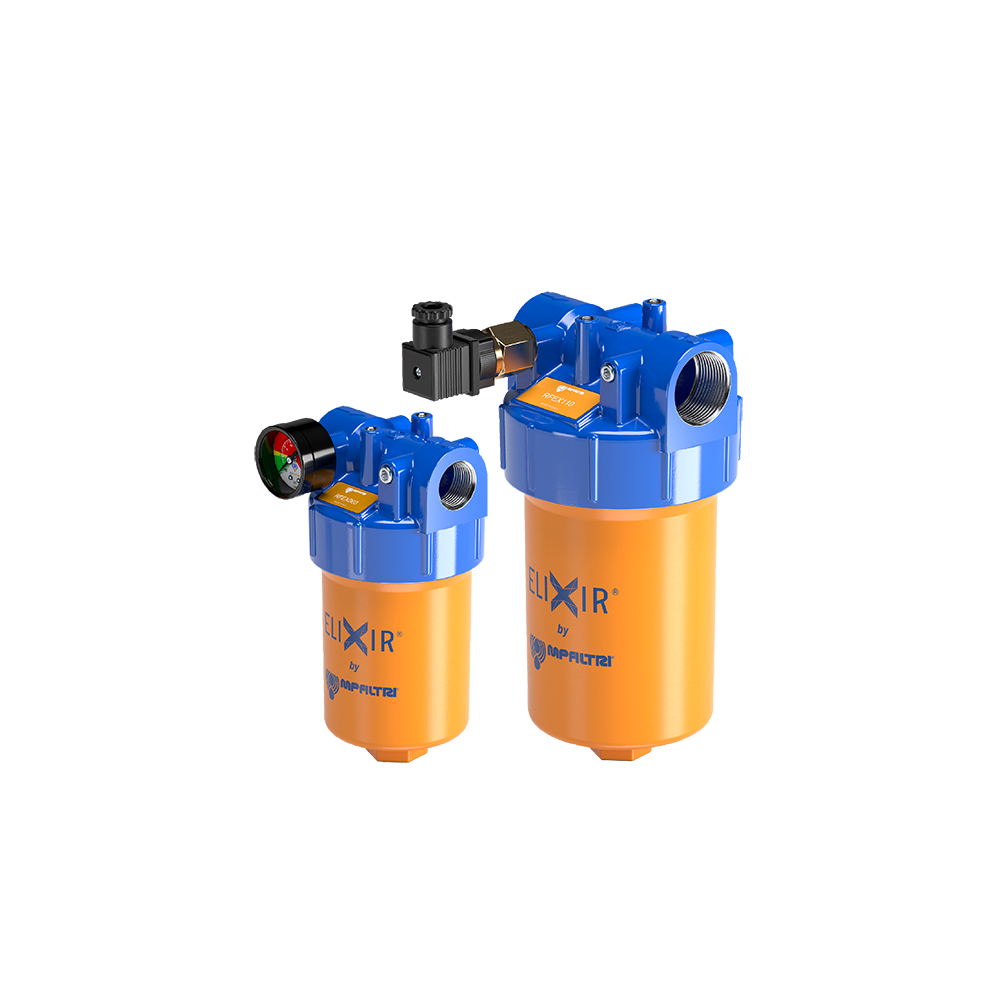

RFEX ELIXIR® SERIES In line filter
Return
Pmax 16 bar, 232 psi
Qmax 260 l/m, 69 gpm
A new concept in spin-on type filtration; versatile, low cost and kinder to the environment

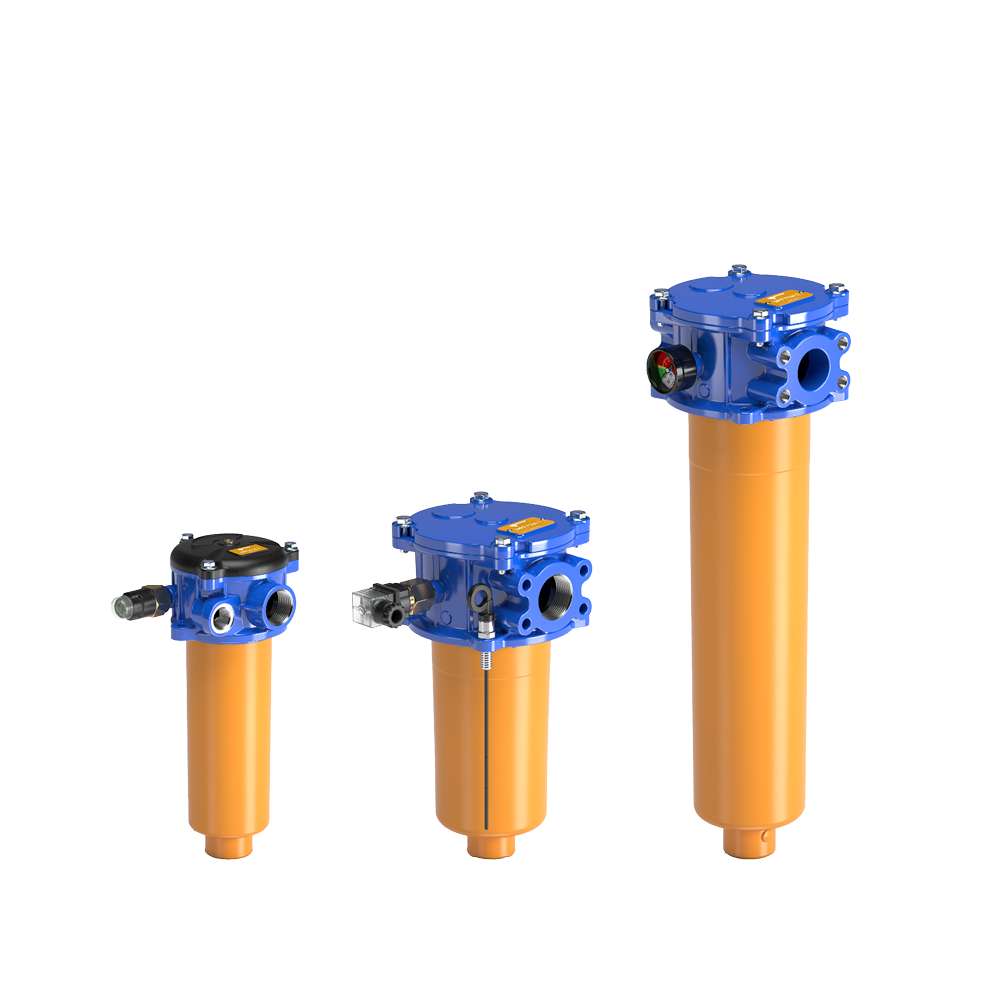

MPFXTank top return filter
MYclean Design
Pmax 8 bar, 116 psi
Qmax 900 l/m, 238 gpm
Industry standard tank mounted filter suitable for all mineral oil and water glycol applications

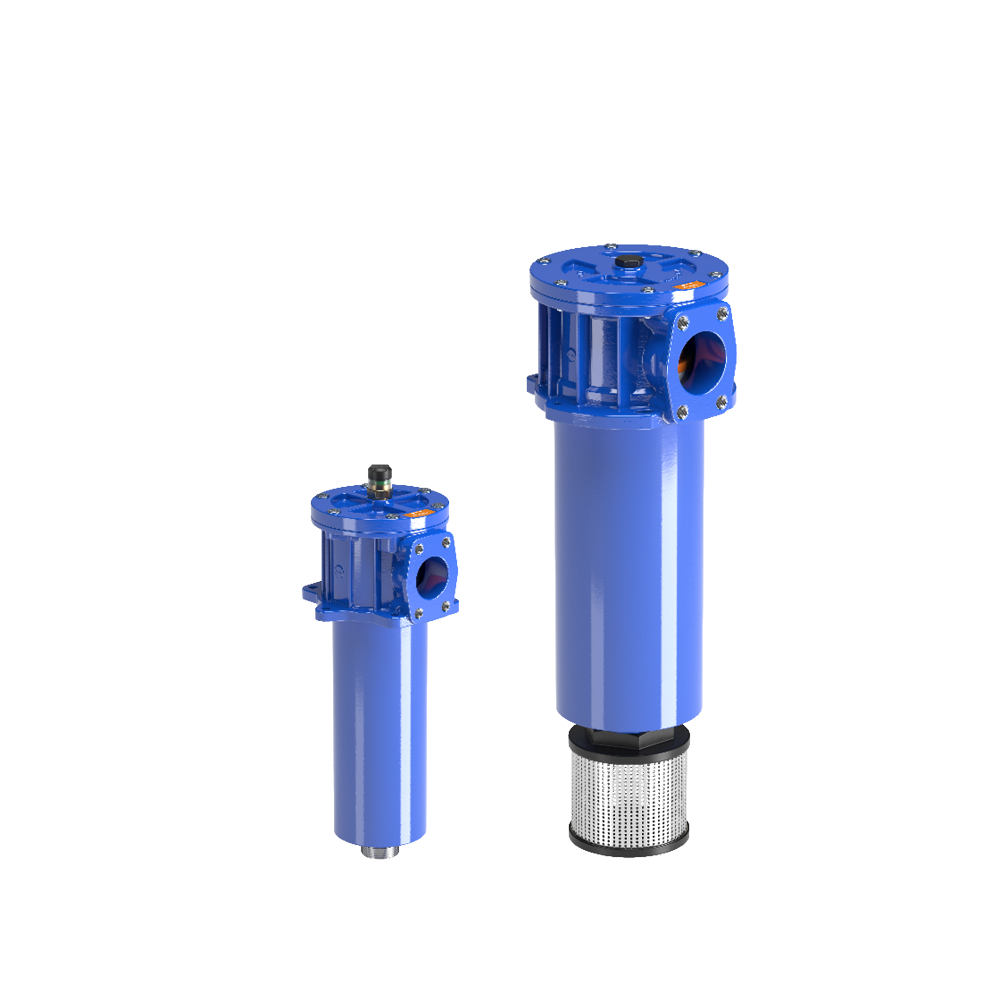

MPLXHeavy duty tank top filter
Pall 8420 & 8520 interchange
Pmax 10 bar, 145 psi
Qmax 1800 l/m, 476 gpm
Large industrial applications, in replacement PALL 8420 & 8520

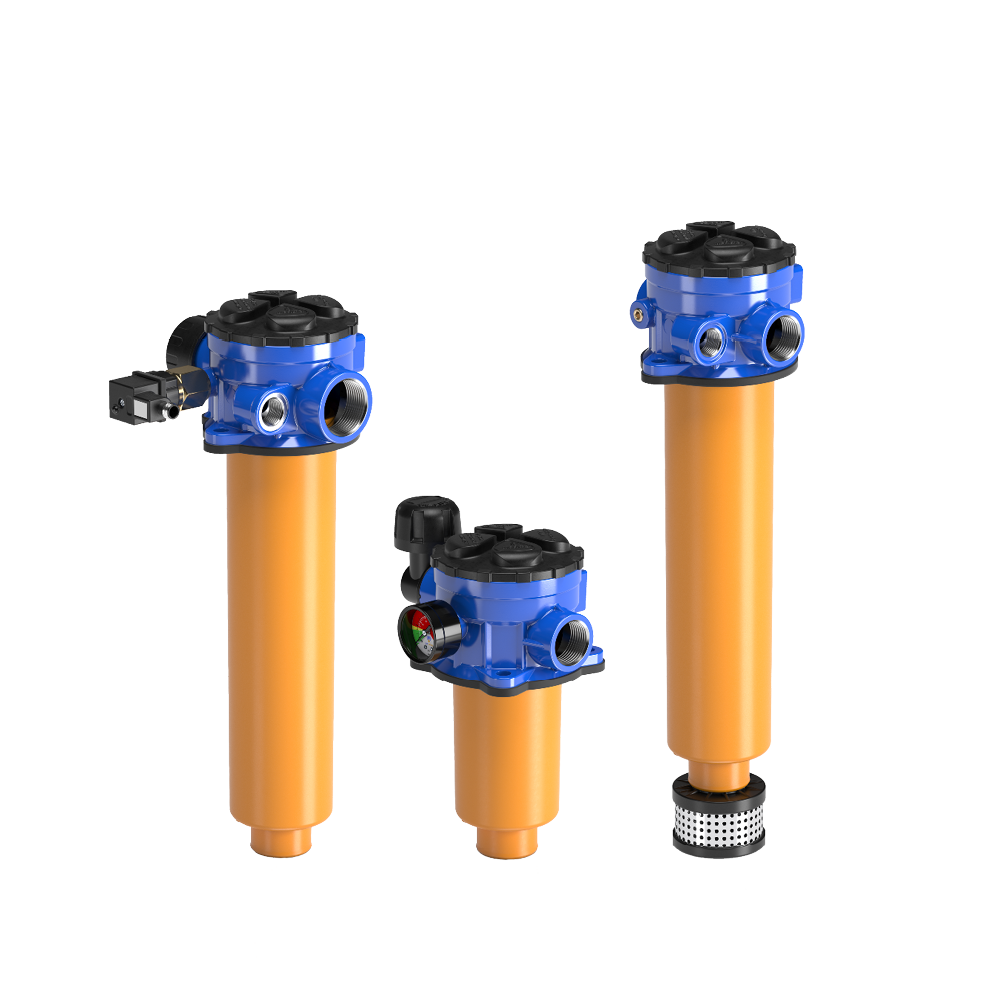

MPTXTank top return filter with air breather
MYclean Design
Pmax 8 bar, 116 psi
Qmax 300 l/m, 79 gpm
Suitable for small mobile and lower flow applications where space is a premium

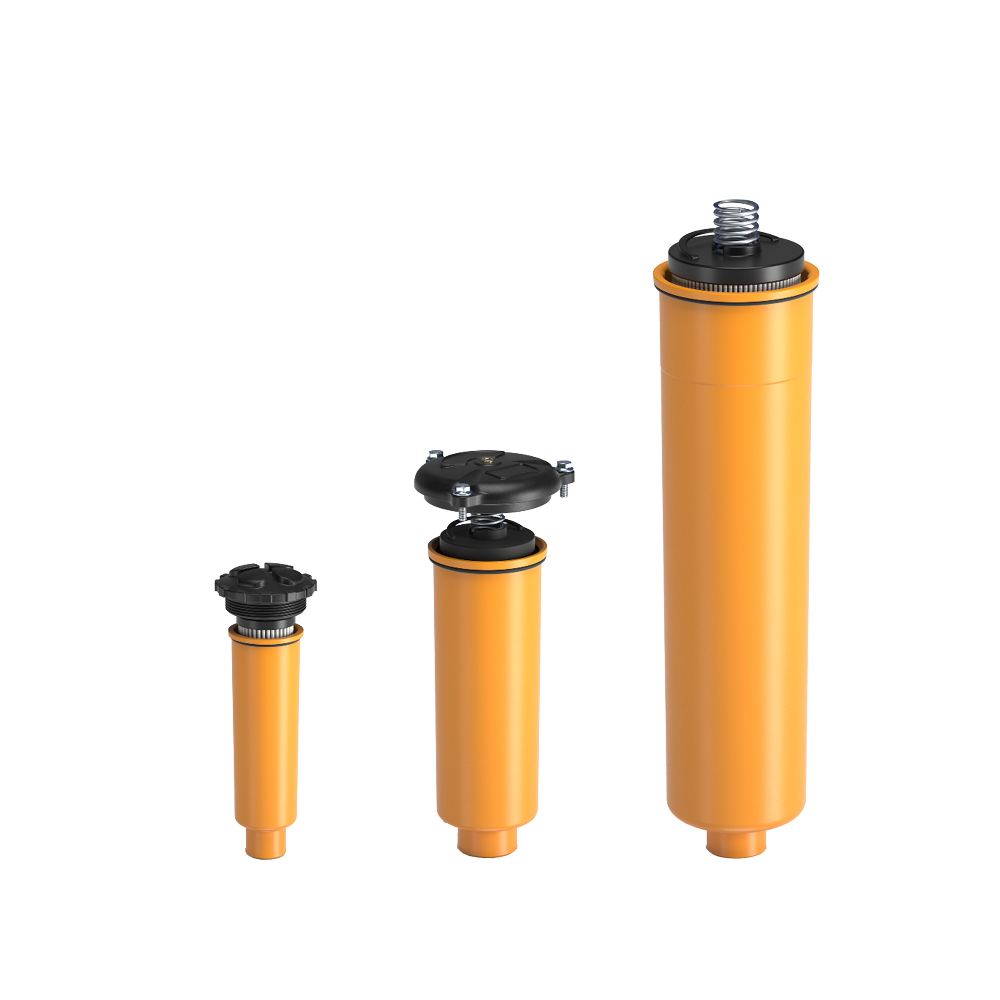

MFBXIn-tank filter
Filter bowl and element assembly, MYclean Design
Pmax 8 bar, 116 psi
Qmax 700 l/m, 185 gpm
Industry standard filter for mounting flush to the tank top

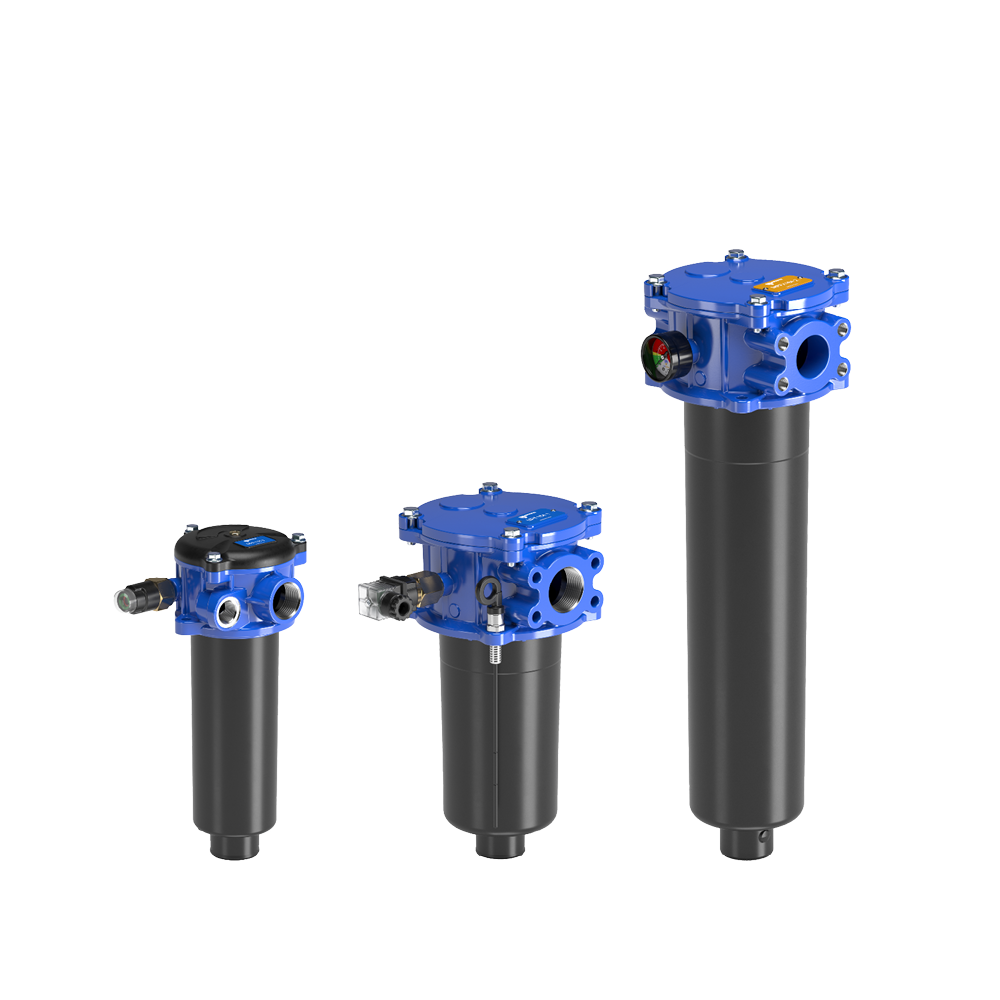

MPF Tank top return filter
Pmax 8 bar, 116 psi
Qmax 900 l/m, 238 gpm
Industry standard tank mounted filter suitable for all mineral oil and water glycol applications

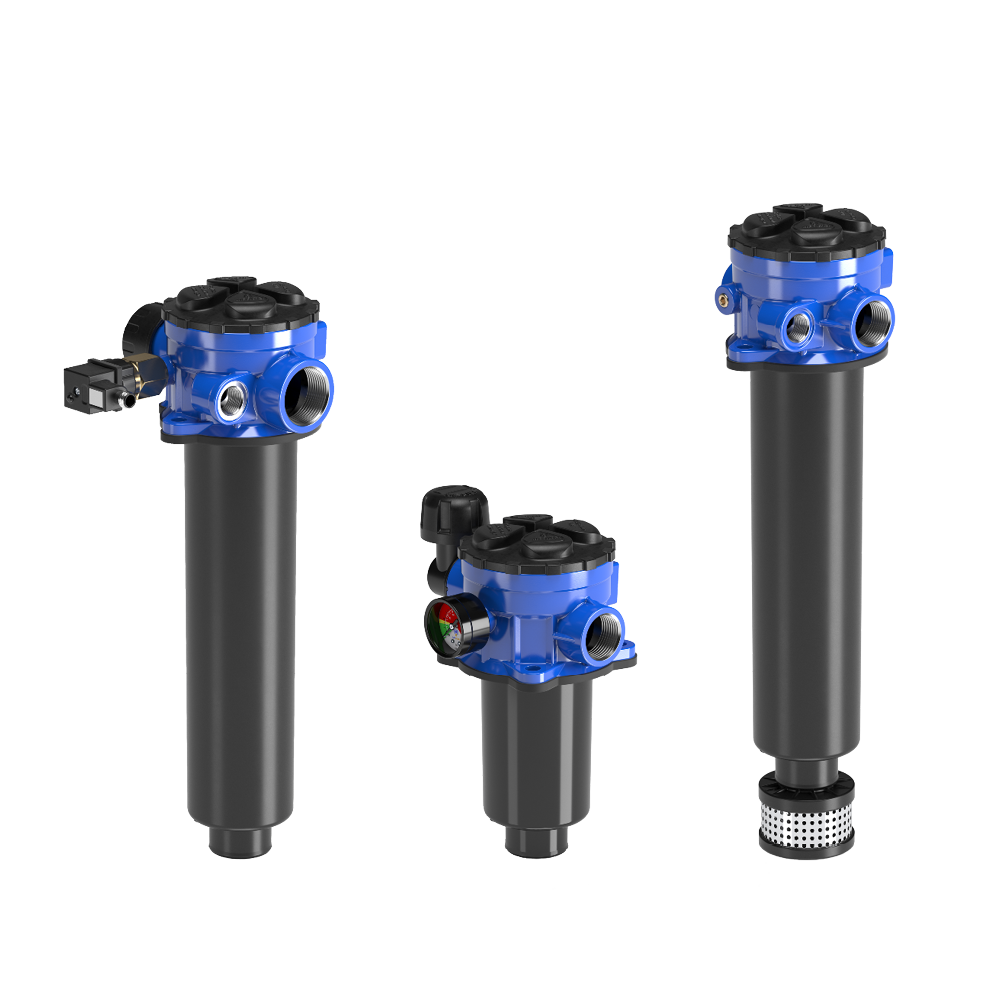

MPT Tank top return filter with air breather
Pmax 8 bar, 116 psi
Qmax 300 l/m, 79 gpm
Suitable for small mobile and lower flow applications where space is a premium

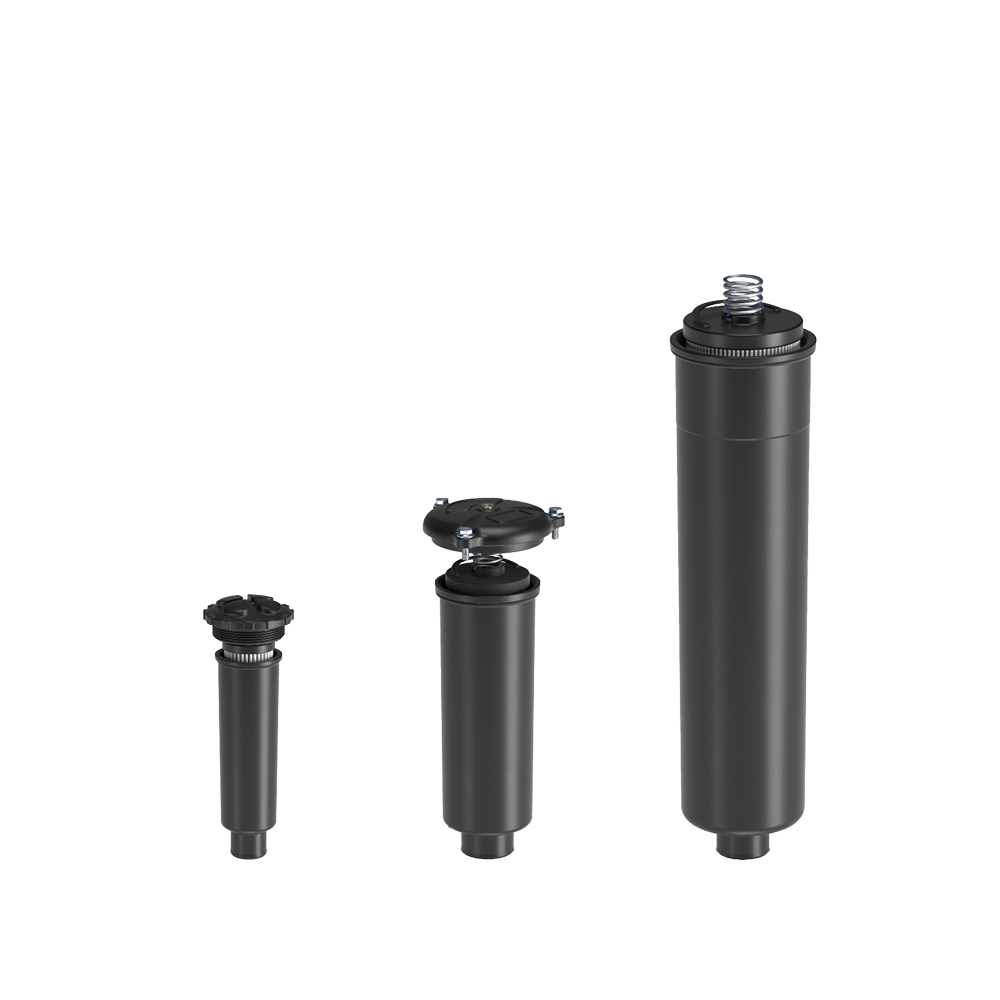

MFB In-tank filter
Filter bowl and element assembly
Pmax 8 bar, 116 psi
Qmax 700 l/m, 185 gpm
Industry standard filter for mounting flush to the tank top
MDHDeaeration return filter to reduce air flow into the tank
Pmax: 10 bar, 145 psi
Qmax: 500 l/m, 132 psi
Designed specifically for mobile tanks or self-propelled machines

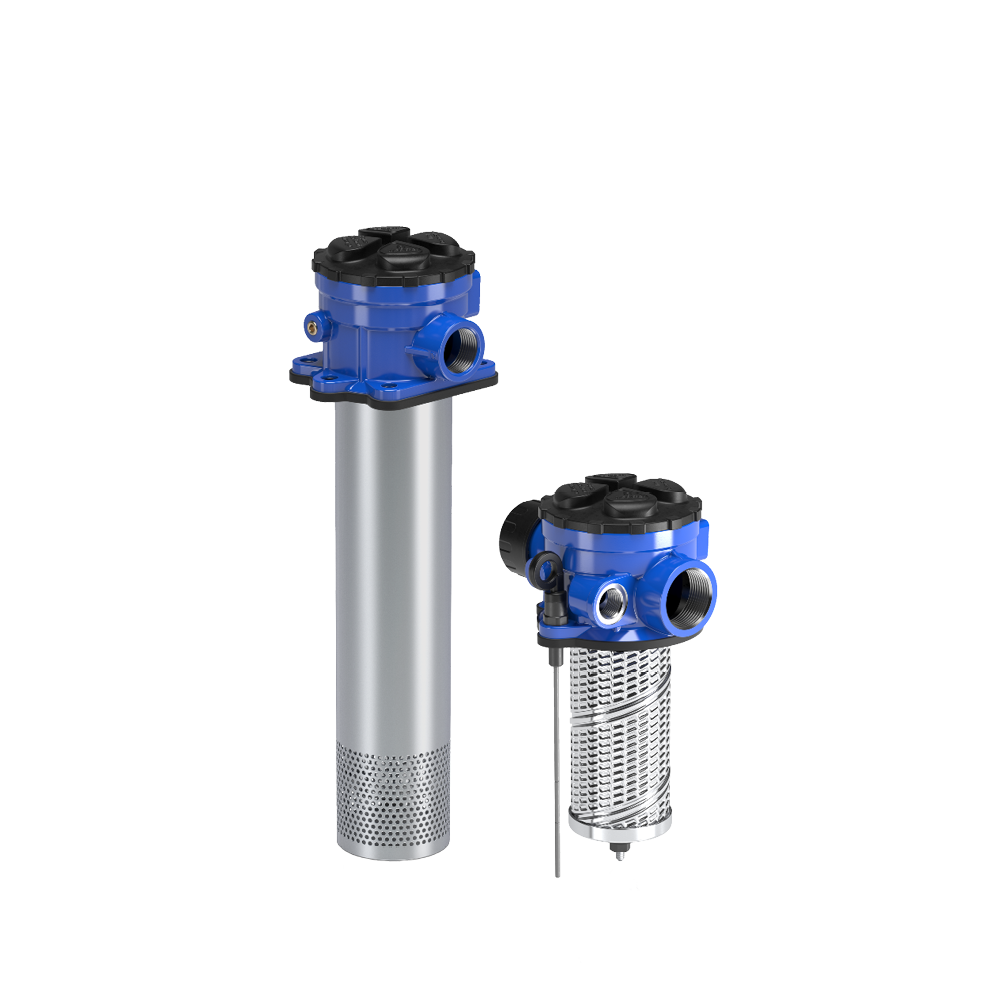

MPHHigh flow rate filter for heavy duty industrial applications
With integral air breather
Pmax 10 bar, 145 psi
Qmax 3500 l/m, 925 gpm
Large industrial applications suitable for all mineral oil and water glycol applications

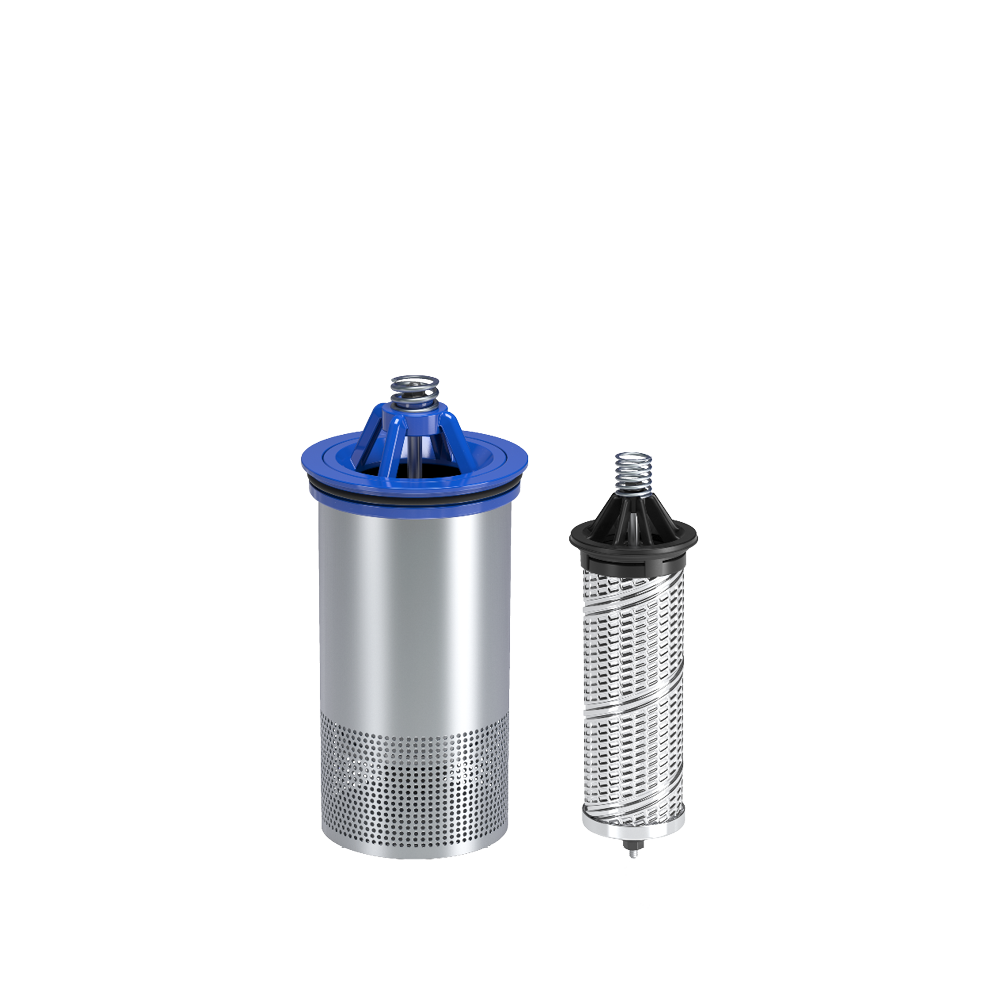

MPIHeavy duty industrial applications in-tank filter
Pmax 10 bar, 145 psi
Qmax 3500 l/m, 925 gpm
Large industrial applications suitable for all mineral oil and water glycol applications

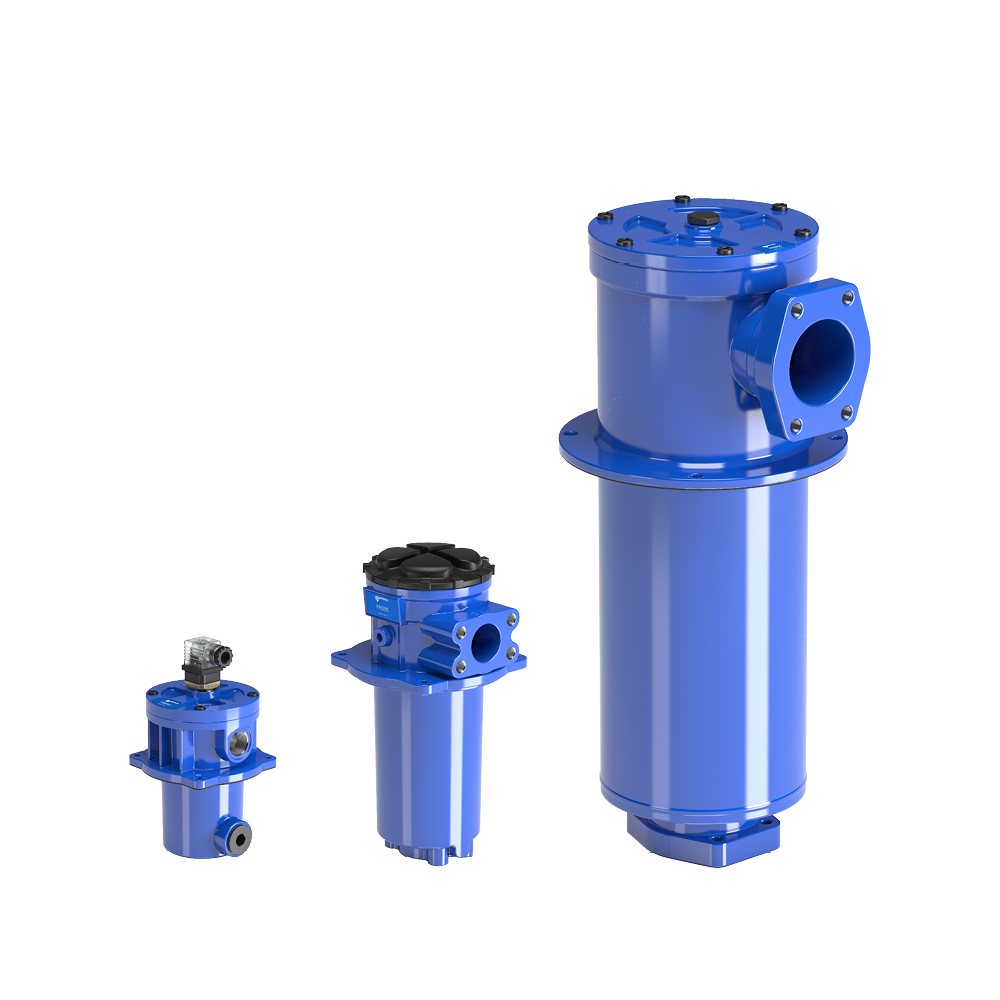

FRIHeavy duty in-line or tank top mount filter
Pmax 20 bar, 290 psi
Qmax 2500 l/m, 660 gpm
Large industrial applications with higher return line pressure and large flow requirements

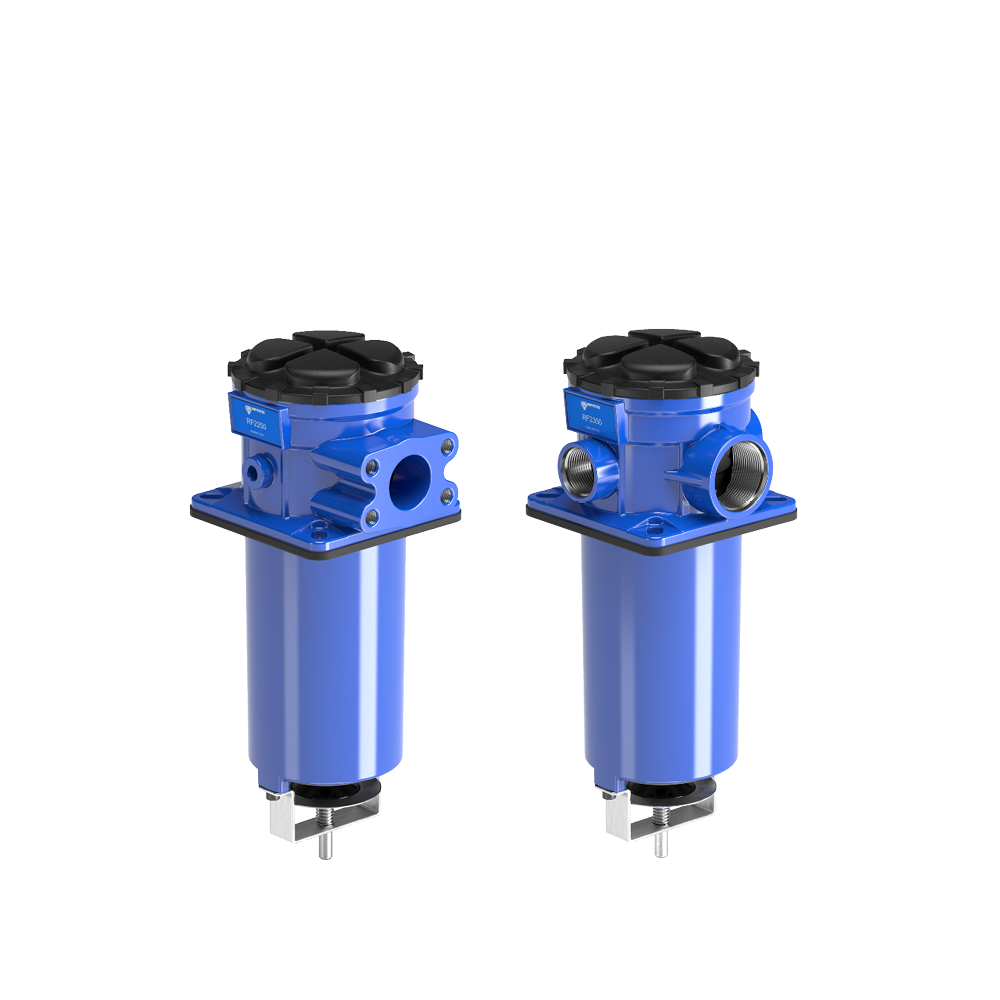

RF2Side-tank mounted filter with shut-off valve
Pmax 20 bar, 290 psi
Qmax 615 l/m, 162 gpm
Suitable for smaller mobile and static applications where tank top maintenance is restricted
