The deaeration return filter enables a reduction of air flow into the tank. Working pressure up to 10 bar (145 psi), flow rates up to 500 l/min (132 gpm), threaded connections 1”, 1 1/4” and 1 1/2” GAS/NPT/SAE" and flanged connections 1 1/4” and 1 1/2” SAE 3000.

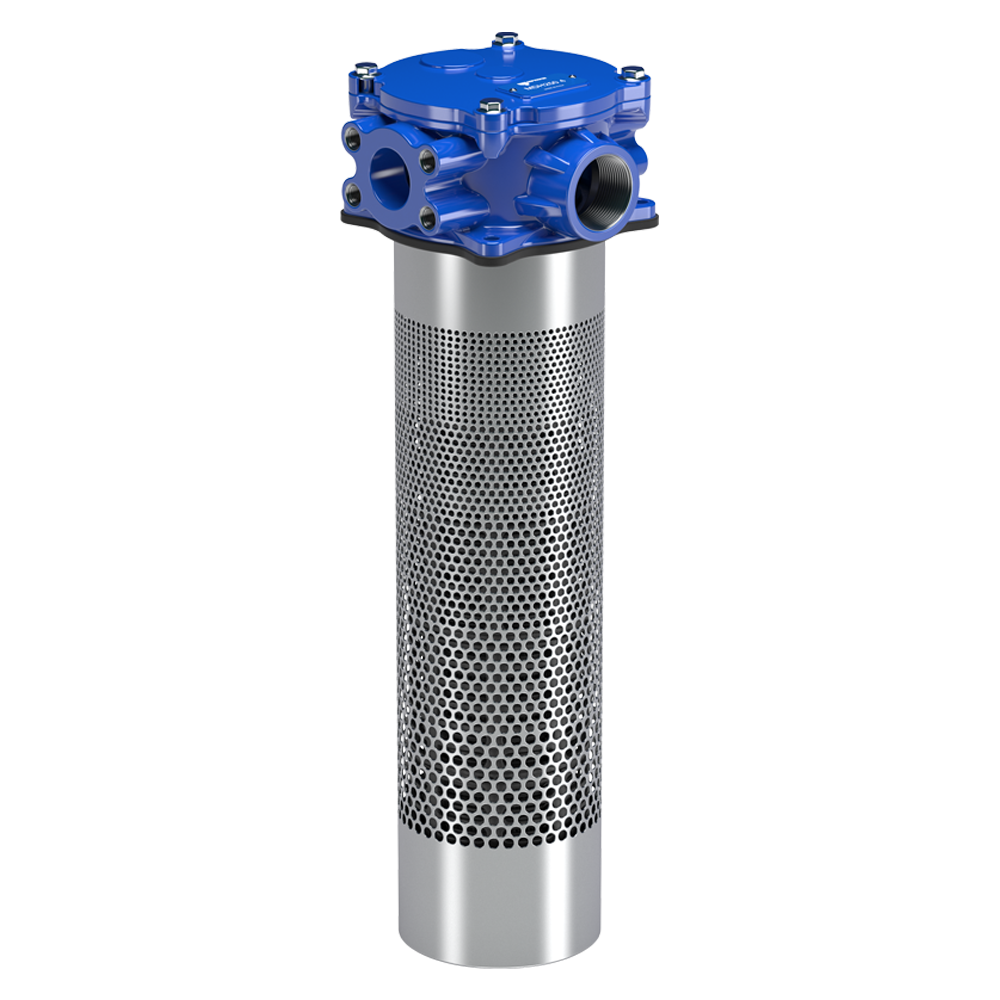

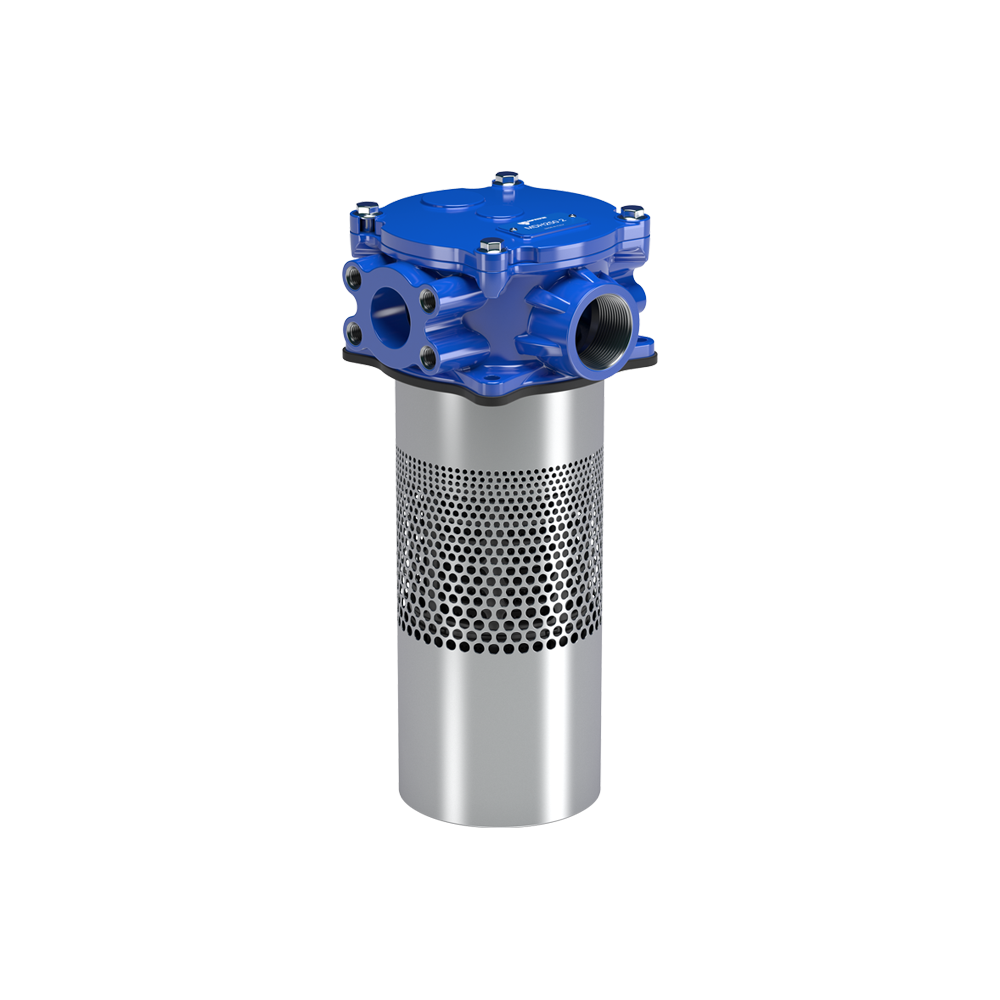

The MDH 250 “bubble-free” deaeration filter allows the reduction of air flow into the tank through the filter. Thanks to its multiple connections and its differential indicator, it is adaptable to all systems.
The filter features key components, including:
• Anti-drain membrane
• Bypass valve
• Filter element with innovative flow path design
• Diffuser integrated in the filter
See the relevant table for fluid compatibility.
