MPH

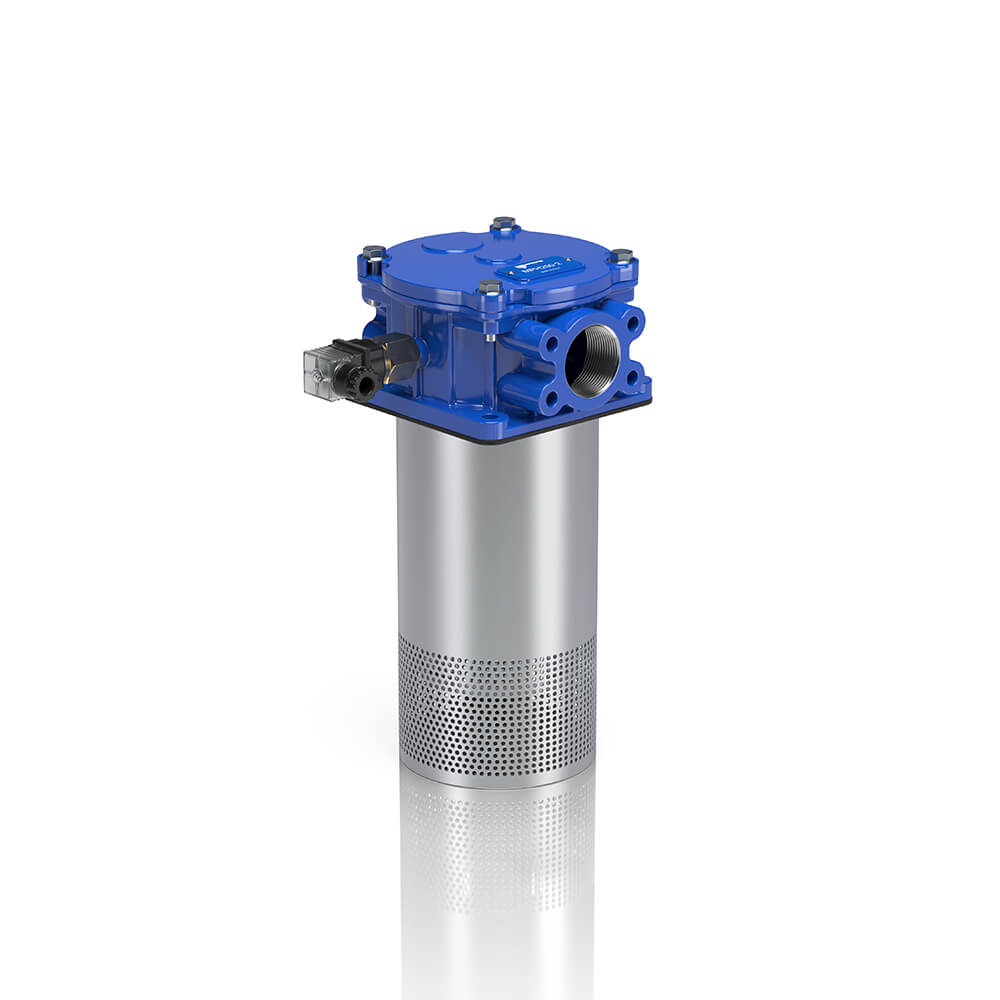

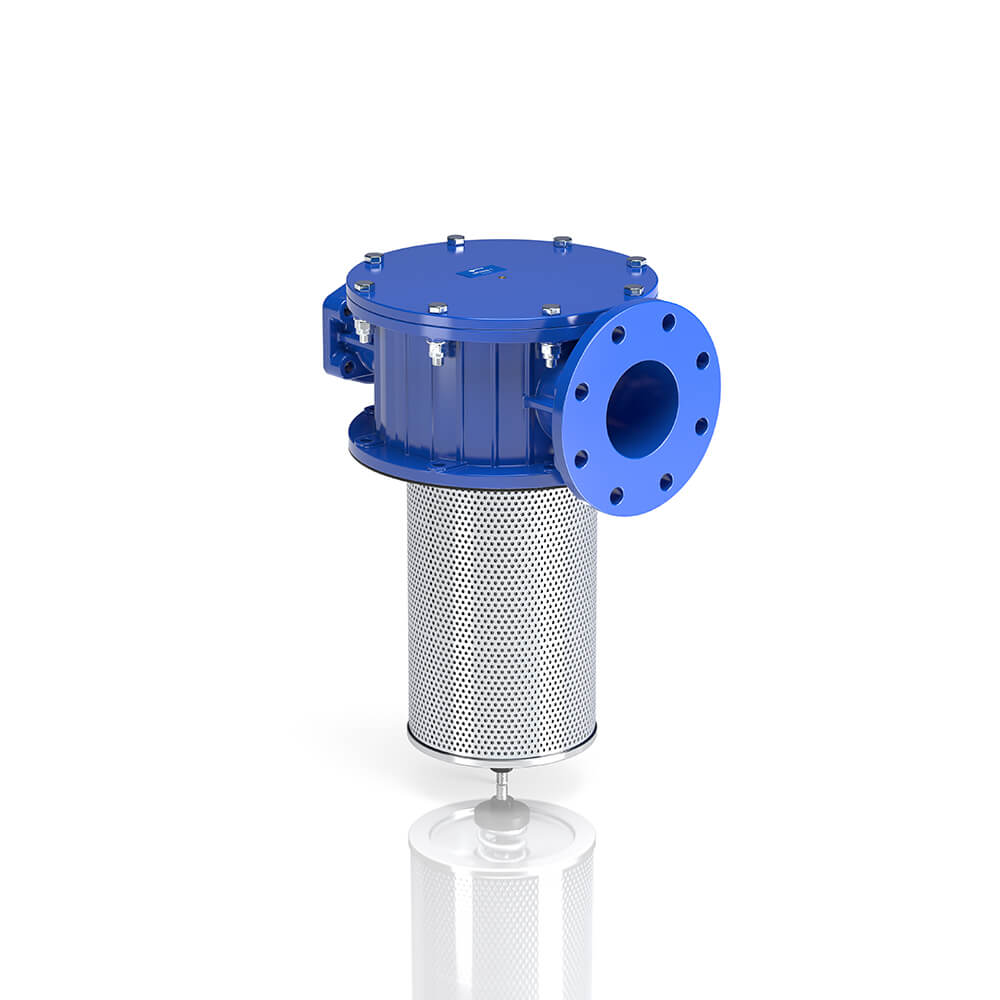

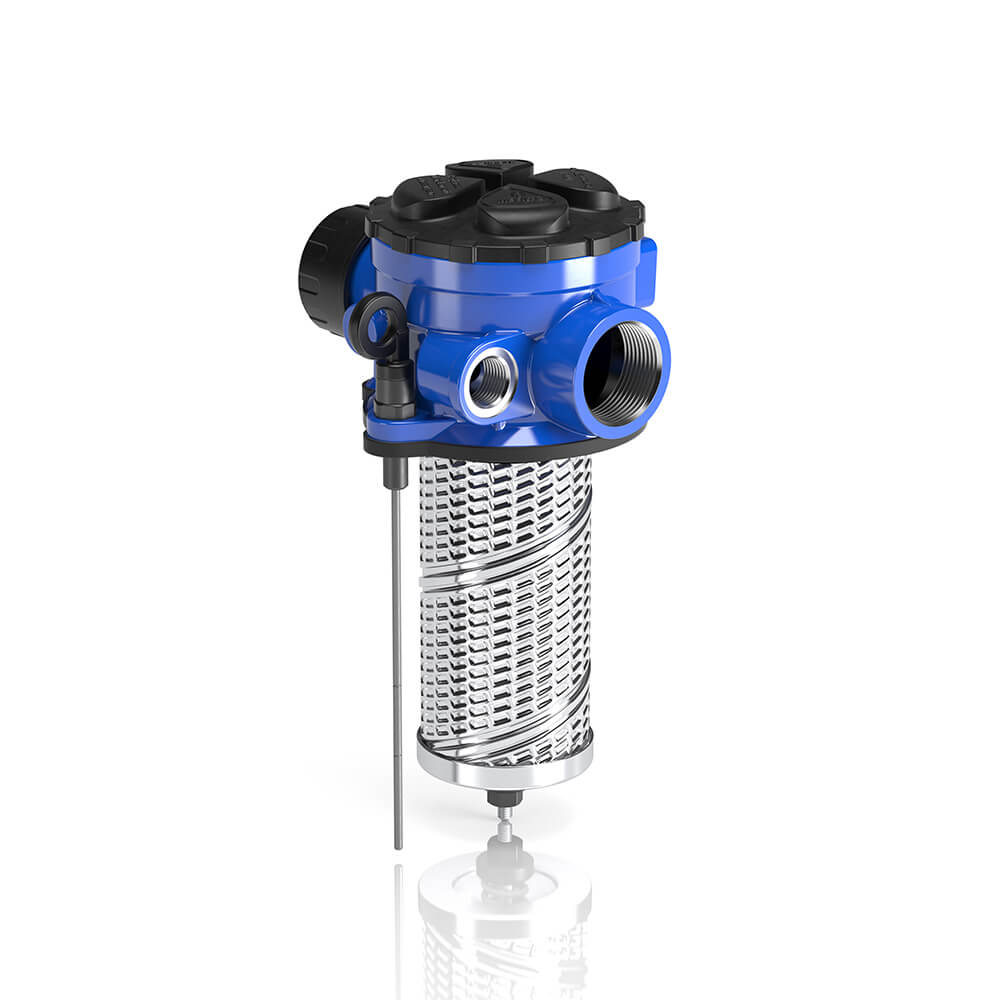

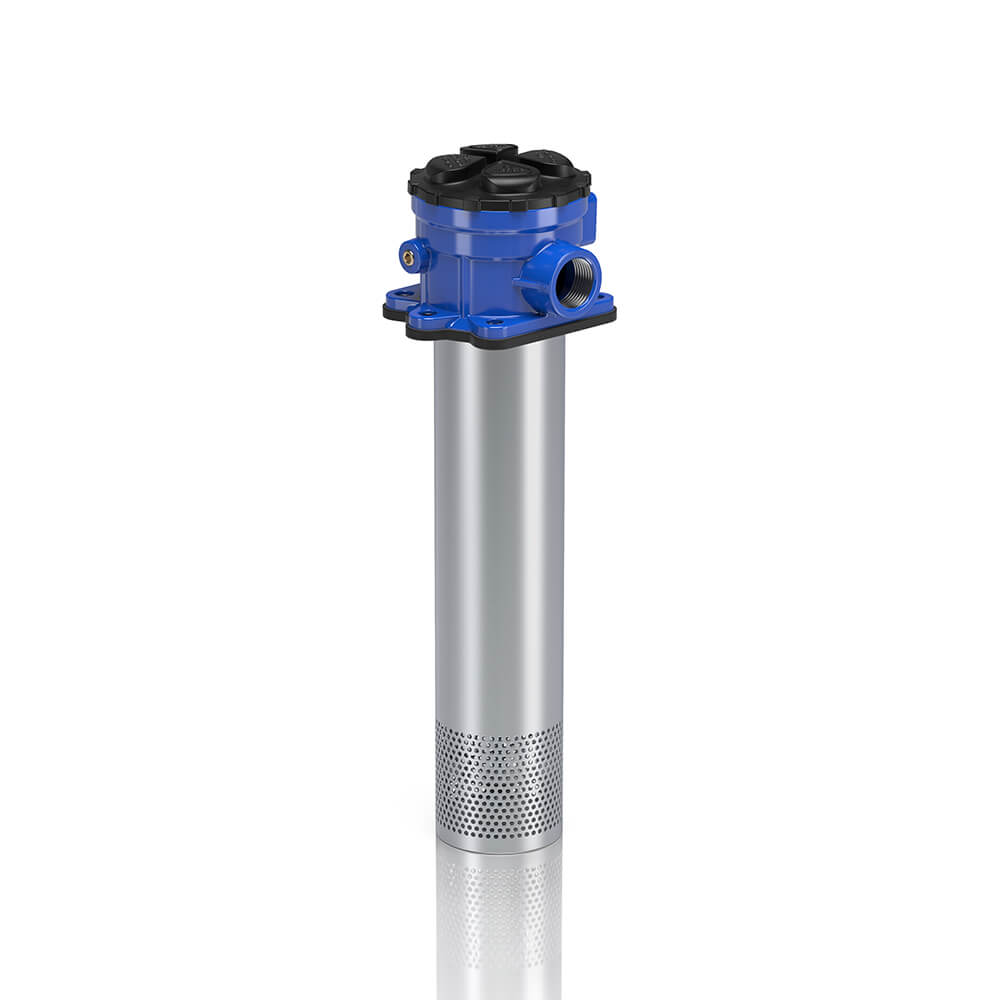

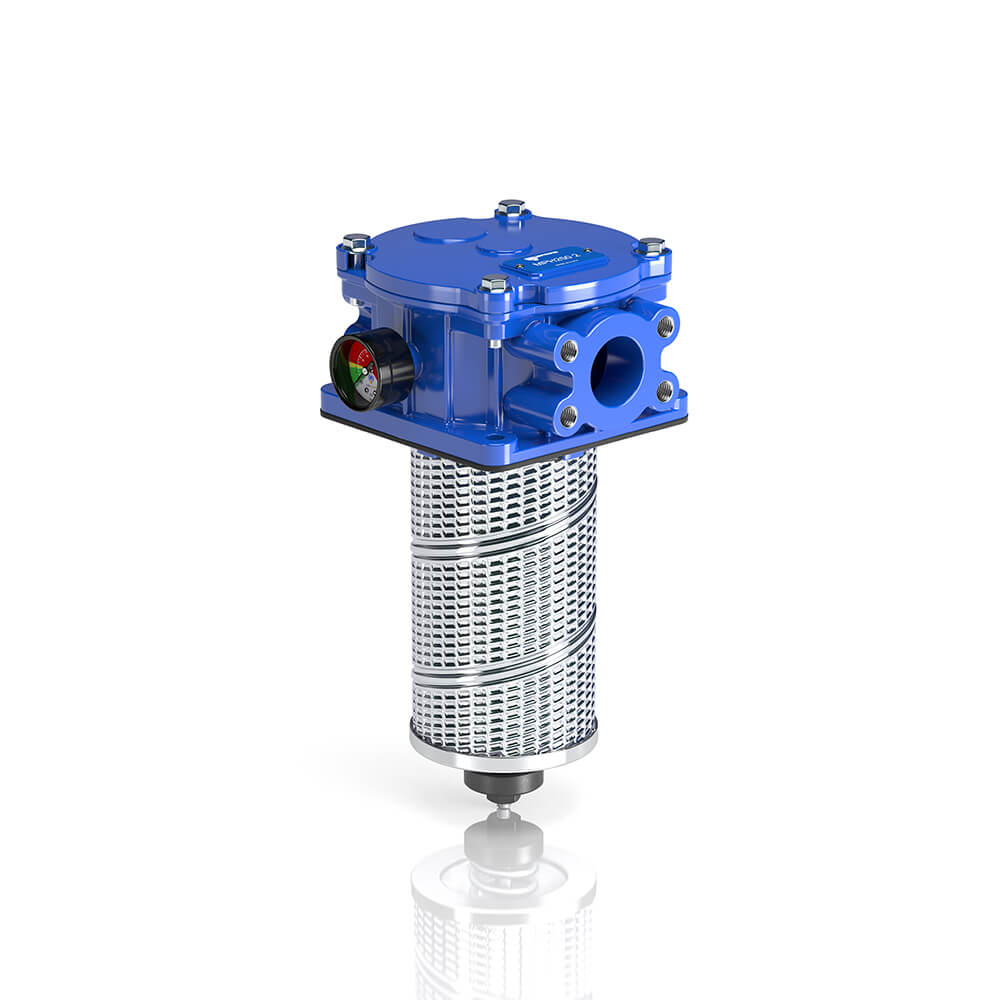

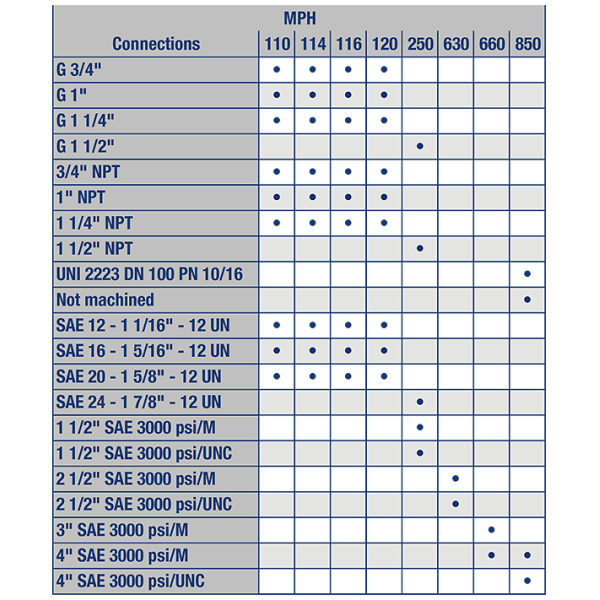

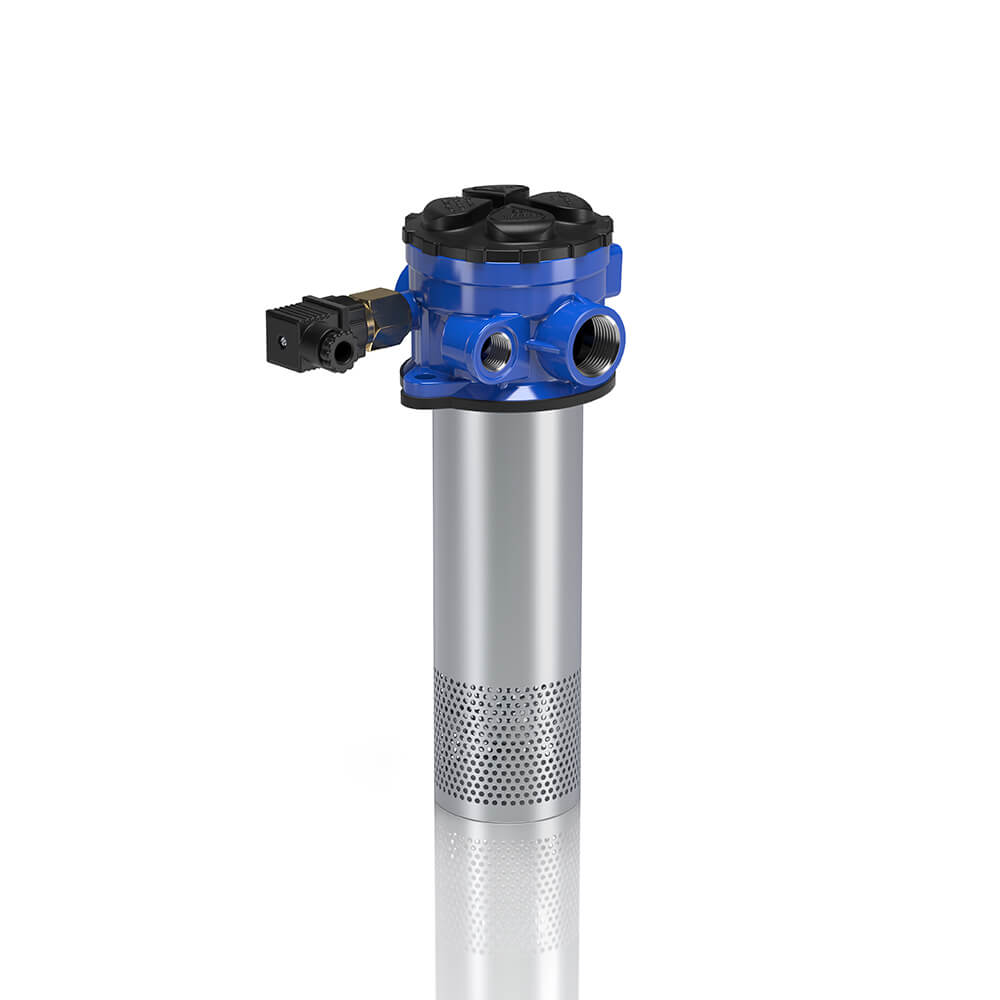

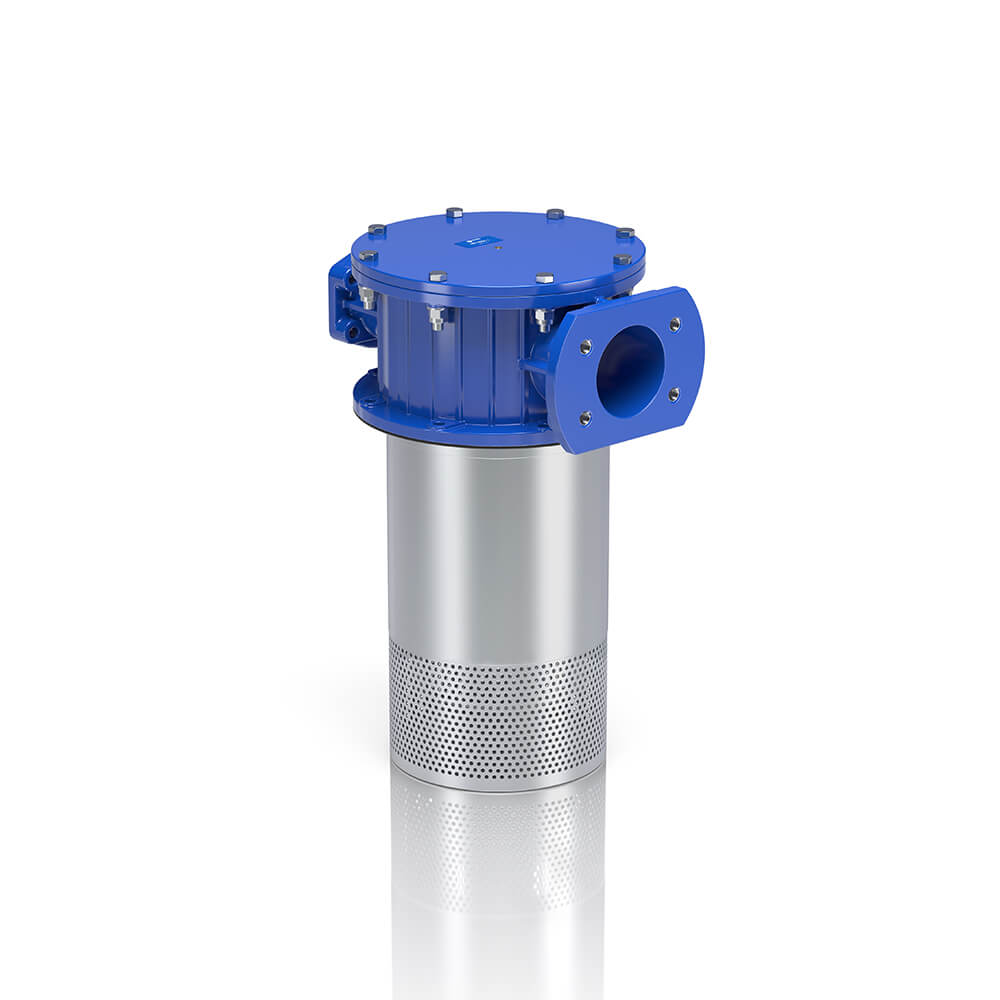

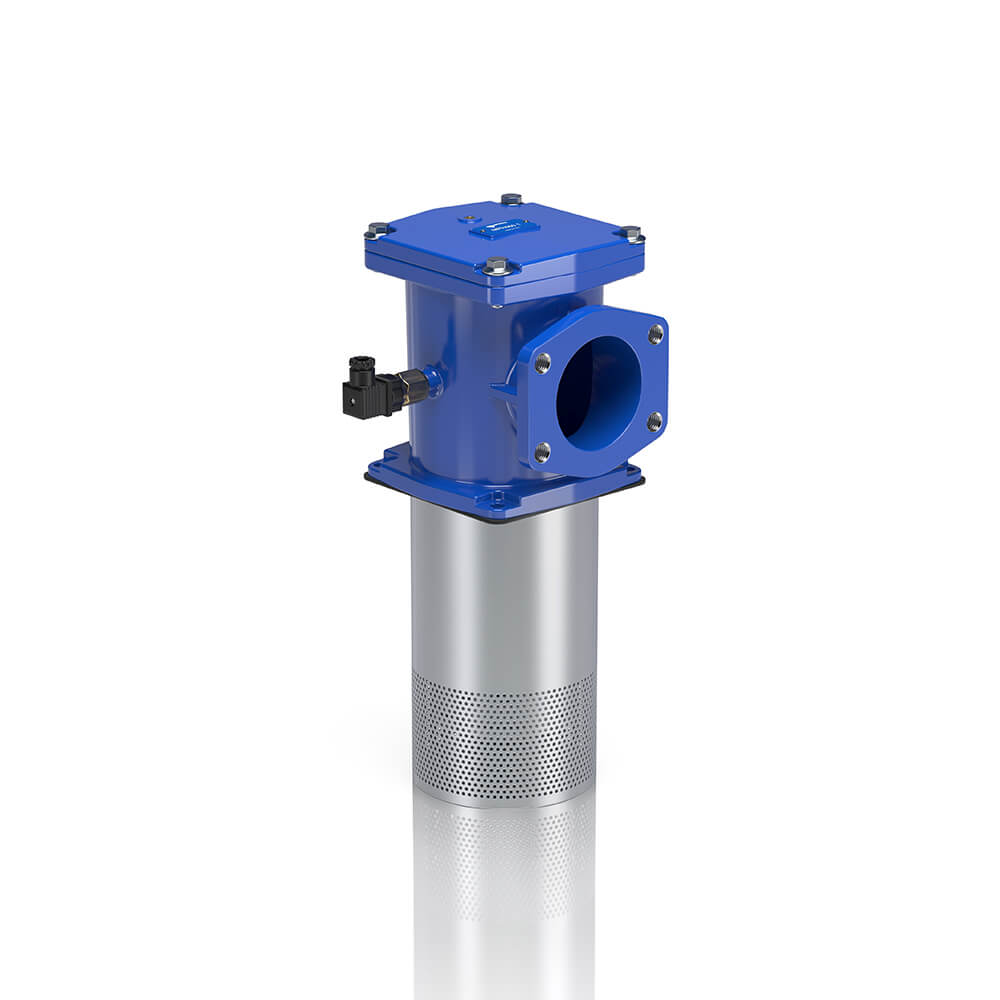

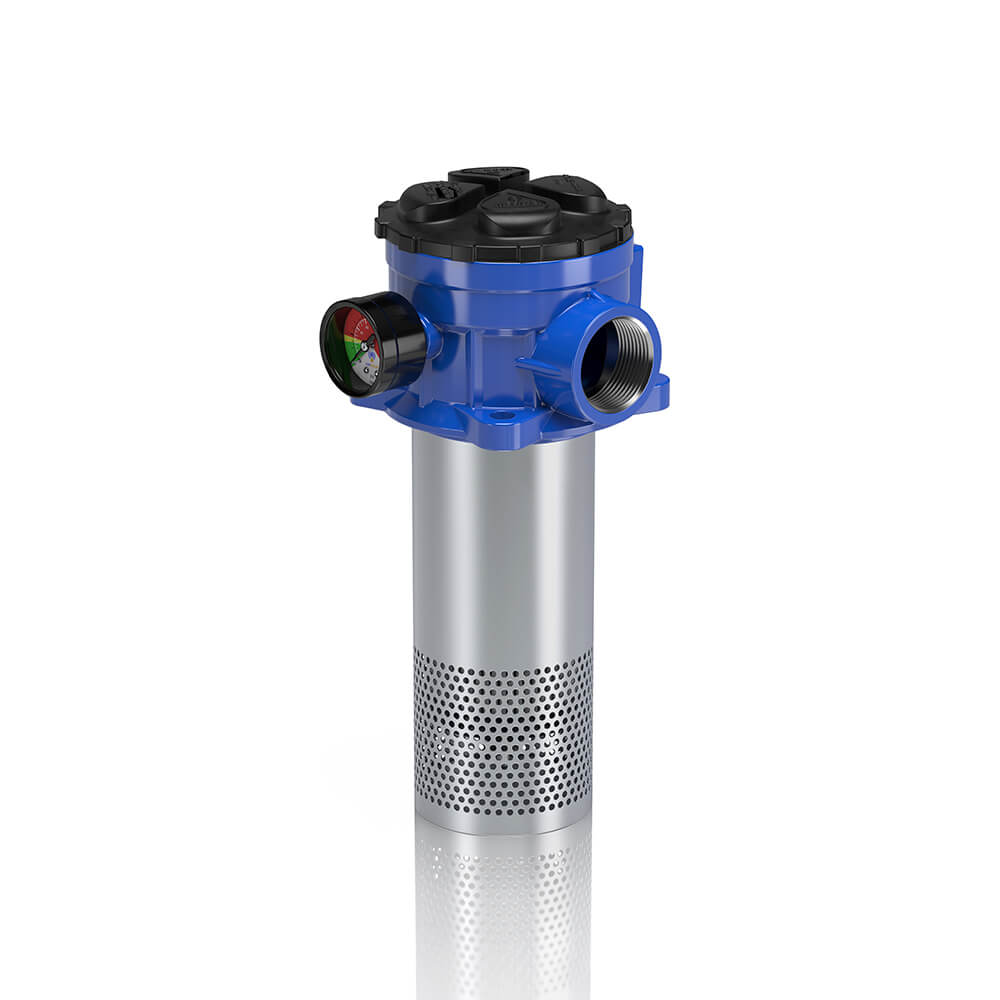

Tank mounted return filter, element oil flow internal to external. Working pressure up to 10 bar (145 psi), flow rates up to 3000 l/min (793 gpm), threaded connections from 3/4” to 1 1/2” BSP/NPT/SAE and SAE code 61 flanged connections up to 4" and DN 100 PN 10/16 UNI 2223.

FILTER SIZING 3D DOWNLOAD TECHNICAL BROCHURE

FEATURES & BENEFITS
LITERATURE

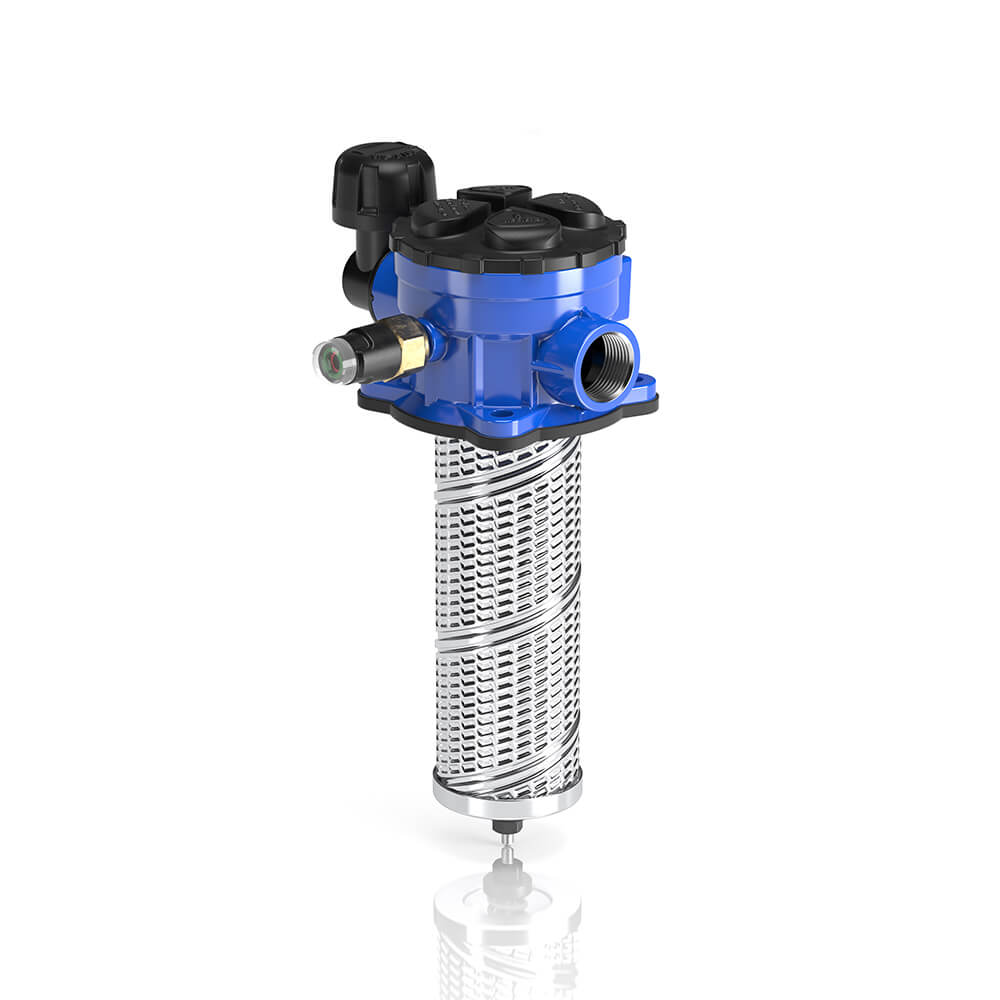

Heavy duty high flow rate return filter available in single or dual ports, specifically designed for heavy duty applications, available with or without oil flow diffuser or magnetic column. "Inside to Outside" oil flow element design retains captured contamination within the element replacing the element and preventing contamination back into the tank. The air breather plug is integrated.

See the relevant table for fluid compatibility.

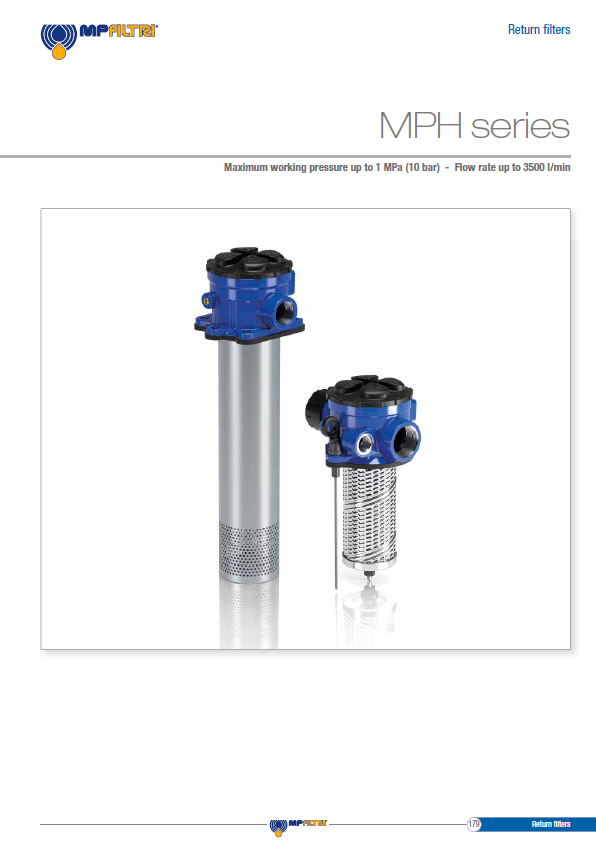

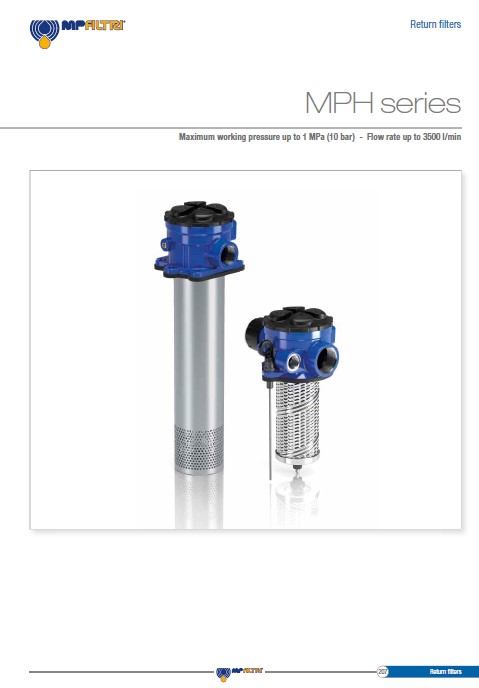

BROCHURES

FILTER ELEMENT

Product range

CATALOGUES

MPH return

Return filters

Hydraulic Filtration

Return accessories
