LPA2 AVIATION EDITION

Created exclusively for the Aviation industry and approved by Airbus, the LPA2 Aviation edition is a precise and portable instrument ideal for MRO applications.
It can automatically measure and display particulate contamination, moisture and temperature levels in various hydraulic fluids. The LPA2 can be connected to the MP range of bottle sampler products to enable laboratory based particle counting. The LPA2 is a solution for online monitoring of contamination in your hydraulic fluid, providing an immediate hydraulic health check. It employs predictive maintenance procedures to help reduce downtime and in turn costs.

RECALIBRATION SERVICE   TECHNICAL BROCHURE
  • FEATURES & BENEFITS
  • TECHNICAL DATA
  • LITERATURE
  • VIDEO

  • Approved by Airbus for the aviation sector
  • Robust yet fully portable travel case
  • Includes a specialist Airbus adaptor
  • Full size QWERTY keyboard and onboard thermal printer
  • Calibrated to relevant ISO standards
  • Compatible with various hydraulic fluids
  • FREE LPA View software Windows based
  • Measures and displays the following international standard formats; ISO 4406,
  • NAS 1638, SAE AS 4059 revision E tables 1 & 2.
  • Moisture and temperature sensing (fluid dependent)
  • Manual and remote control flexibility
  • Data logging and 600 test result memory
  • Various test programme settings
  • Full accessories kit included
  • Internal rechargeable battery capable of performing 100 tests between charges


Particle sizing
>4,6,14,21,25,38,50,70 μm(c) to ISO 4406
Standard analysis range
ISO 4406 Code 8 to 24
NAS 1638 Class 2 to 12
AS4059 Rev. E Table 1 Size Codes 2-12
AS4059 rev. E Table 2 Size Codes, A:000 to 12, B:00 to 12, C:00 to 12, D:2 to 12, E: 4 to 12,F: 7 to 12
Accuracy
Better than 3% typical
Viscosity range
Up to 400 cSt
Fluid temperature
From +5 °C to +80 °C
Ambient temperature
min / max -10 °C to +80 °C
Temperature measurement
±3%
Pressure
Max 400 bar (gauge)
Minimum 2 bar (gauge) required
Sample volume / Test time
8 ml. (short): 2:50 15 ml. (normal): 5:00 30 ml. (dynamic): 10:00 24 ml. (bottle sampler): 8:00 15 ml. (continuous): 5:00
CATALOGUES
Contamination Control Solutions

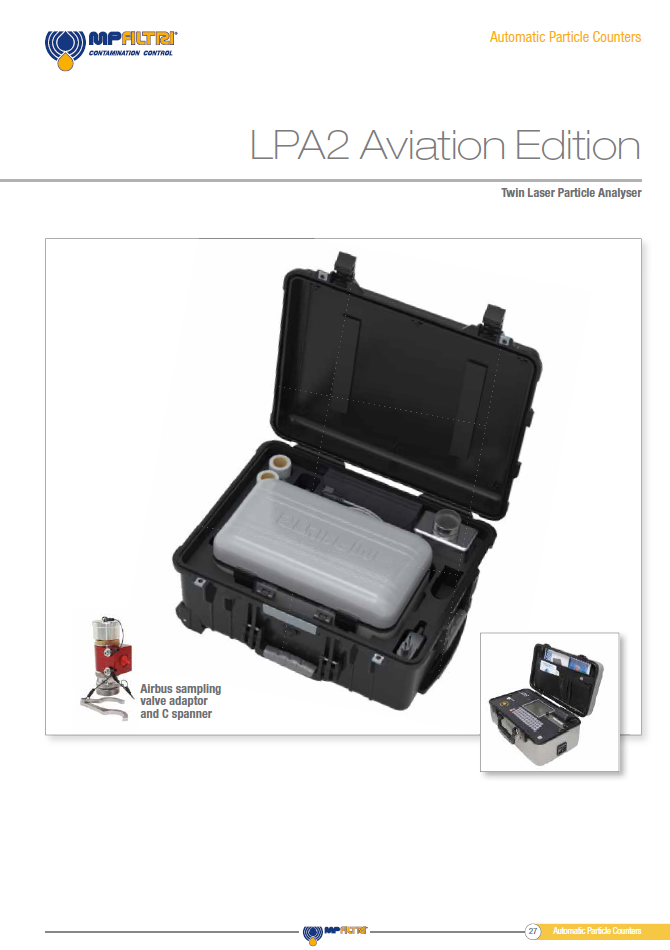

LPA2 Aviation Edition
