ICU

The ICU automatically measures particulate contamination levels in various hydraulic fluids and is designed for industrial applications. It is designed to be manifold mounded directly to systems, where ongoing measurement or analysis is required,and where space and costs are limited.

RECALIBRATION SERVICE TECHNICAL BROCHURE

FEATURES & BENEFITS
TECHNICAL DATA
LITERATURE
SOFTWARE

• Manifold mounting
• 3-channel contamination measurement
• Live real-time monitoring
• Manual, automatic and remote control flexibility
• Provides critical early-warning system
• Protects complex systems
• Industry 4.0 ready
• Measures ISO 4406:2017
• Robust design and construction
• LPA View software (included)
• Pressure max. 350 bar
• Environmental protection IP65/67 versatile
• 4-20mA analogue output as standard

Particle sizing
>4, 6, 14 μm(c) to ISO 4406:2017 Standard
Analysis range
ISO 4406:2017 Code 0 to 20
Accuracy
± ½ code for 4,6,14 μm(c) across the analysis range
Viscosity
range ≤ 1000 cSt
Fluid temperature
From +25 °C to +80 °C
Ambient temperature
From 0 °C to +60 °C
Pressure
Minimum 50 bar
Maximum 350 bar

CATALOGUES

CMP Automatic Particle Counters

Contamination Control Solutions

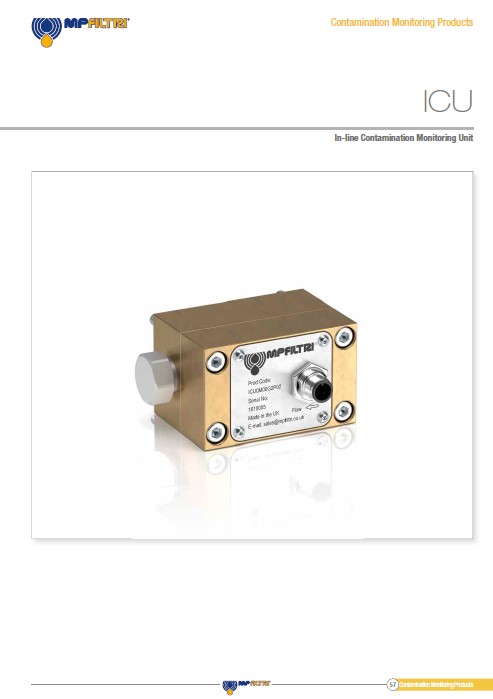

ICU inline APC

MANUALS

CMP View-Software - Quick-start Guide

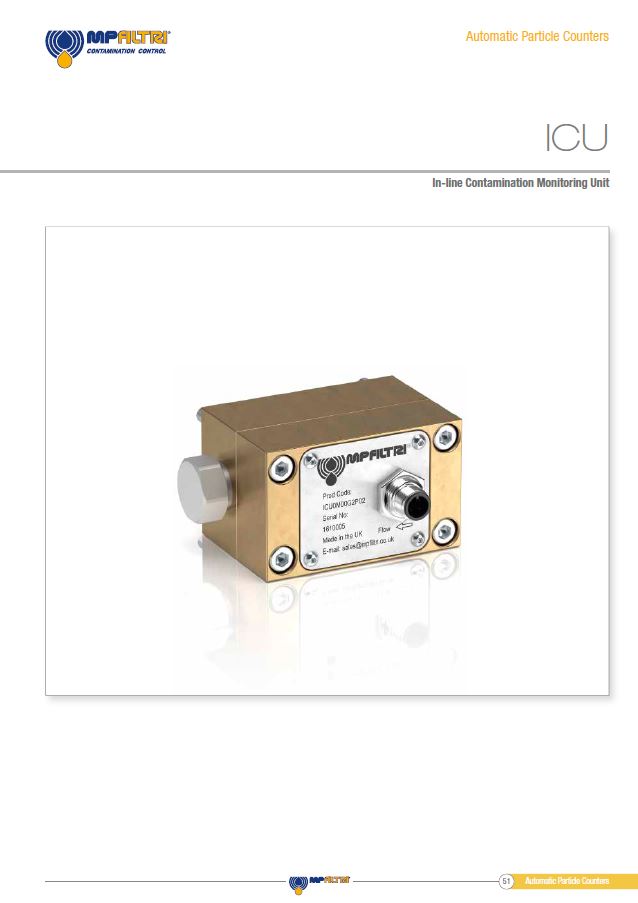

ICU Use and maintenance manual

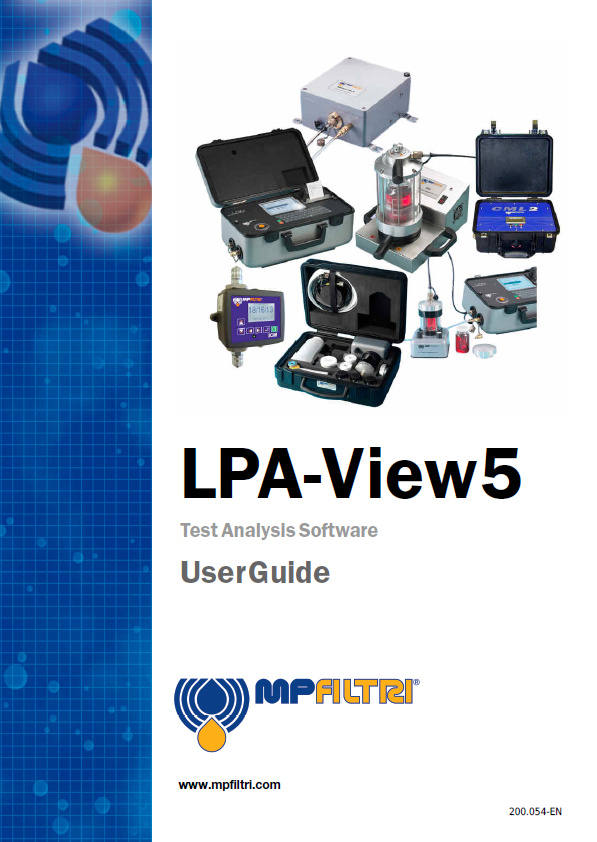

LPA View Software Use and maintenance manual

BROCHURES

Contamination Control Solutions

CMP View Software

Product range

CMP View

LPA View: 5.101
