PATCH IMAGING KIT

The Patch Imaging Kit has been created to deliver high-resolution microscopic visual analysis of contamination in fluids

TECHNICAL BROCHURE
  • FEATURES & BENEFITS
  • TECHNICAL DATA
  • LITERATURE
  • VIDEO

  • Heavy-duty orange pelicase
  • Self-adhesive patch test covers
  • Patch test membranes -1.2 micron filter
  • Spray bottle
  • 2 x Stainless steel tweezers
  • Hand-pump
  • Waste bottle
  • 3 x Clean bottles
  • Reusable Nalgene filter assembly
  • 0.01mm Calibration slides
  • Microscope power adaptor
  • USB Data stick (includes microscope software and PDF manual)
  • Hose pouch
  • 1 x Hose - 8 x 6mm (Nalgene vacuum cable)
  • 1 x Hose - 6 x 4mm (Hand pump sampling cable)
  • Swift Microscope SW150 and accessories including cable and viewer
  • Microscope camera – 1.3MP
  • A5 document wallet
  • Patch test report card
  • Optional electric vacuum pump


Sampling
  • Hand pump
  • Optional electric vacuum pump
Patch test
  • Patch test membranes -1.2 micron filter
Digital analysis
  • Swift Microscope SW150 and accessories including cable and viewer
  • Microscope camera – 1.3MP
  • Easy-View software
Samples Filtration System
  • Reusable Nalgene filter assembly
  • Waste bottle
  • 3 x Clean bottles
  • Spray bottle
Accessories for identification and test report
  • Patch test report cards
  • 0.01mm Calibration slides
  • Self-adhesive patch test covers
Pelicase
  • Heavy-duty orange Pelicase
Weight and dimensions
  • 12.5 kg (27lbs 9oz)
  • Height 265mm (10.4”)
  • Depth 390mm (15.3”)
  • Width 519mm (20.4”)
CATALOGUES
Contamination Control Solutions

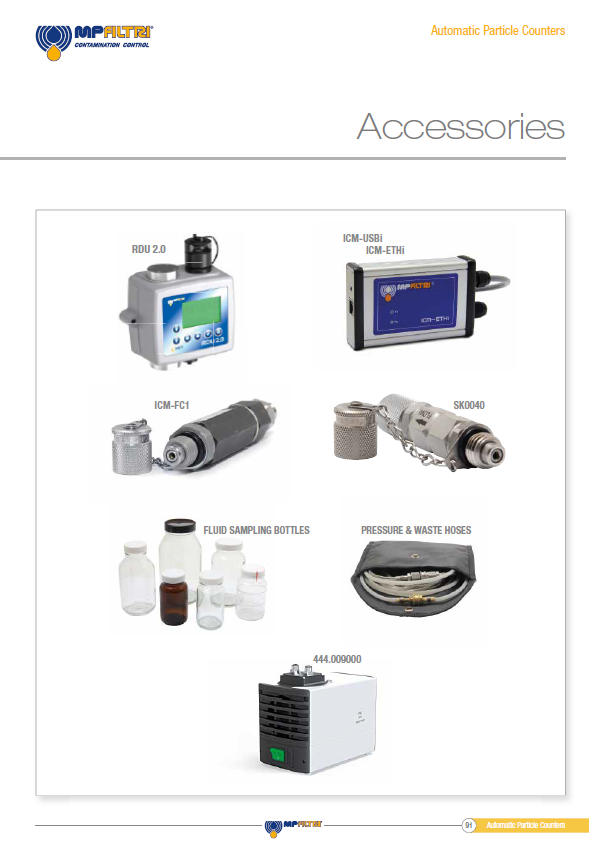

Contamination monitoring products - accessories

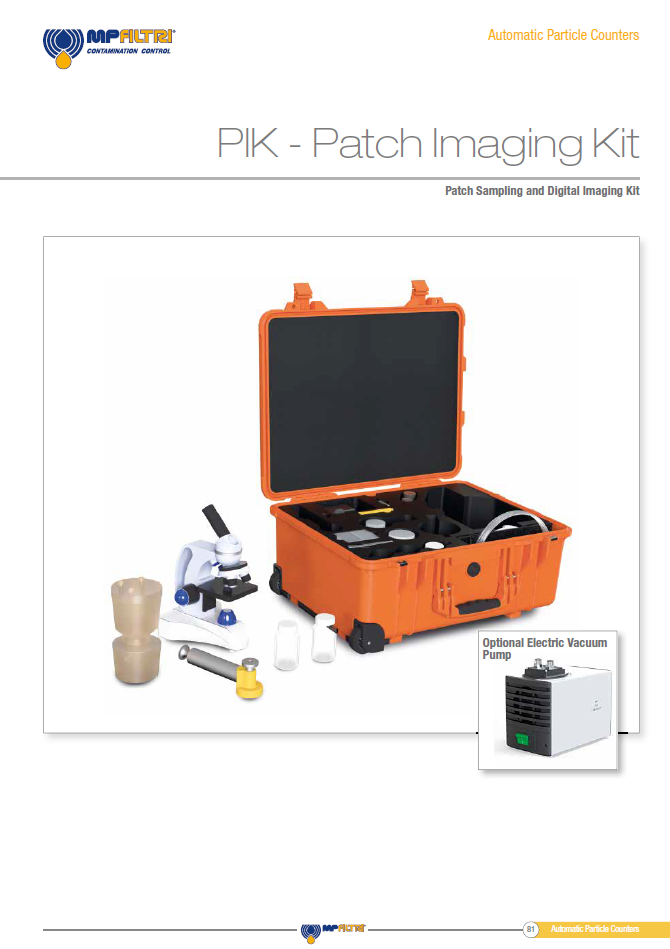

Patch Imaging Kit
