BS110 & BS500

The 110ml & 500ml bottle samplers are suitable for offline and laboratory applications where fluid sampling at point of use is inaccessible or impractical. A fluid de-aeration facility comes as standard.

TECHNICAL BROCHURE
  • FEATURES & BENEFITS
  • TECHNICAL DATA
  • LITERATURE

• Fluid de-aeration capability.
• Compatible with all portable MP Filtri Contaminaton Monitoring Products
• Strong laboratory aesthetic
• Transparent bottle chamber for visual indication
• BS110: designed specifically for portable onsite testing, is supplied with hand pump
  for reservoir sampling
• BS500: designed for laboratory applications, is able to sample large volumes and/or
  low viscosity fluids, including diesel fuel
• Full accessories kit included
• Carry case included (BS110)


BS 110

Max. chamber pressure
2.5bar (36.3psi) only
Min. chamber pressure
0.61bar (8.85psi) to 0.81bar (11.75psi)
Supply voltage
12v, 2 amp
Wetted parts (Internal)
Aluminium HE30, 303 Stainless Steel, Polyurethane, FPM, Acrylic
Hydraulic hoses (External)
600mm x 2mm ID M16x2 microbore pressure hose
Max flow rate (ml/min)
Viscosity dependant
Min flow rate (ml/min)
Viscosity dependant
Pressure ranges
2.0bar (29psi) options
IP rating
IP50
Fluid compatibility / Corrosion resistance
Industrial Hydrocarbon based fluids (typical)
Min outlet pressure
1013mbar (14.7psi)
Max. fluid temperature (Continuous)
80°C/176°F
Min fluid temperature
Viscosity dependant
Max. viscosity
400 cSt
Min. viscosity
1 cSt
Max outlet pressure
2.0bar (29psi) options
Min. continuous ambient temperature
10°C/50°F
Max. continuous ambient temperature
55°C/131°F

BS 500

Max. chamber pressure
2.5bar (36.3psi) (standard), 4.5bar (65.3psi) (high pressure)
Min. chamber pressure
0.61bar (8.85psi) to 0.81bar (11.75psi)
Supply voltage
12v, 5 amp
Wetted parts (Internal)
Aluminium 6082 T6, 303 Stainless Steel, 316 Stainless Steel. Seal & Cylinder material optional
Hydraulic hoses
(External) 600mm x 2mm ID M16x2 microbore pressure hose
Max flow rate (ml/min)
Viscosity dependant
Min flow rate (ml/min)
Viscosity dependant
Pressure ranges
4.5bar (65.3psi) or 2.5bar (36.3psi) options
IP rating
IP50
Fluid compatibility / Corrosion resistance
Industrial, aerospace & off-shore control fluids (typical)
Min outlet pressure
1013mbar (14.7psi)
Max. fluid temperature (Continuous)
80°C/176°F
Min fluid temperature
Viscosity dependant
Max. viscosity
Not greater than 400cSt (on 2.5bar version)
Not greater than 1500cSt (on 4.5bar version)
Min. viscosity
1 cSt
Max outlet pressure
Version dependant: 2.5bar (36.3psi) for 0 version
                                4.5bar (65.3psi) for H version
Min. continuous ambient temperature
10°C/50°F
Max. continuous ambient temperature
55°C/131°F
MANUALS
BS 110 - 500 Use and maintenance manual
CATALOGUES

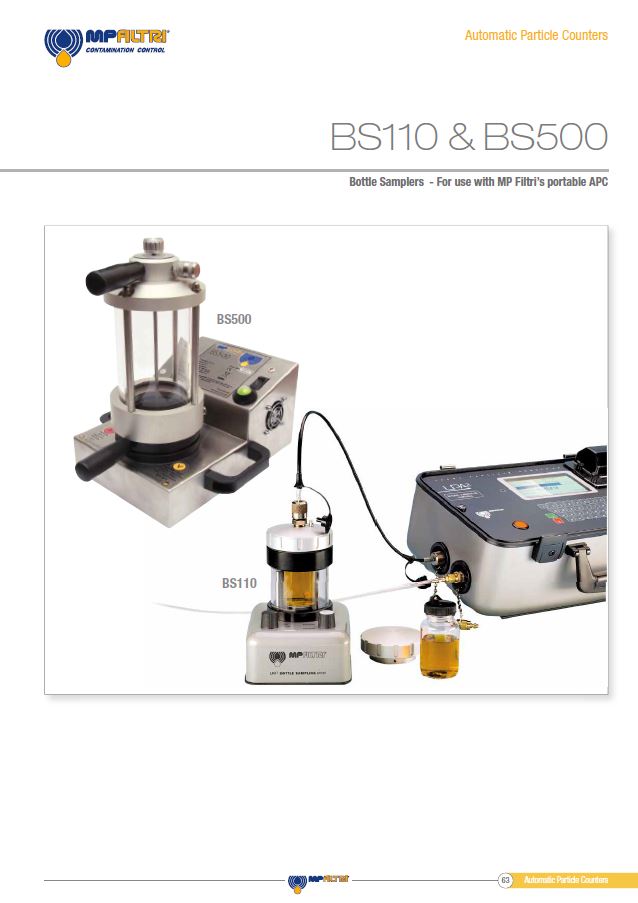

BS110 BS500 bottle samplers
