LPA3

The World`s most advanced mainstream portable Automatic Particle Counter. Featuring innovative optical and photodiode technology, the new LPA3 delivers a fast, accurate and comprehensive hydraulic health check - enhancing the reliability and longevity of hydraulic systems while reducing maintenance, downtime and operatibe costs.

RECALIBRATION SERVICE   TECHNICAL BROCHURE
  • FEATURES & BENEFITS
  • TECHNICAL DATA
  • LITERATURE
  • VIDEO
  • SOFTWARE

• Online real-time monitoring
• Super-fast sample times
• Robust and durable co-polymer body case
• Fully programmable 10.1" (25.5cm) full colour touchscreen display
• Predictive maintenance technology
• Identifies risks before they impact on performance
• Live trend analysis. Ideal for hydraulic, lubrication and subsea fluids
• Long-life lithium ion battery
• Increased integrated memory capacity from 600 to 4000 tests
• Instant results download via USB (to software of datastick)
• Optional bottle sampling capabilities

Particle sizing
>4,6,14,21,25,38,50,70 μm(c) to ISO 4406
Standard analysis range
ISO 4406 Code 8 to 24
NAS 1638 Class 2 to 12
AS4059/ISO11218 Rev.E Table 1 Size Codes 2-12
AS4059/ISO11218 Rev.E Table 2 Size Codes, A:000 to 12, B:00 to 12, C:00 to 12, D:2 to 12, E: 4 to 12,F: 7 to 12
AS4059 Rev.F Table 1 Size Codes 2-12
AS4059 Rev.F Table 2 Size Codes, cpc (000 to 12, 00 to 12, 2 to 12, 4 to 12, 7 to 12)
GBT14039 Code 8 to 24
GJB420B Size codes, A:000 to 12, B:00 to 12, C:00 to 12, D:2 to 12, E: 4 to 12, F: 7 to 12
Accuracy
± 1/2 code for 4, 6, 14μ(c);
± 1 for larger sizes
Viscosity range
Up to 400 cSt
Fluid temperature
Minimum: +5 °C
Maximum: +80 °C
Ambient temperature
Minimum: -10 °C
Maximum: +80 °C
Temperature Measurement
±3%
Pressure
Minimum: 2 bar
Maximum: 420 bar
Sample Volume / Test time
Maximum 100ml per pump stroke. Test volumes programmable by end user. Pre-set volumes also available
CATALOGUES
CMP Automatic Particle Counters
Contamination Control Solutions

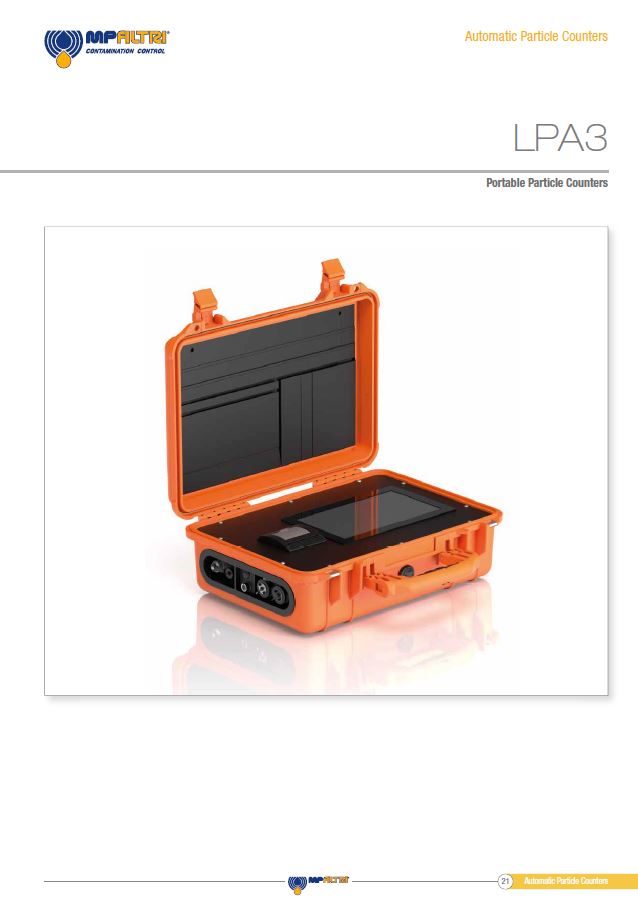

LPA3 compact portable APC
MANUALS

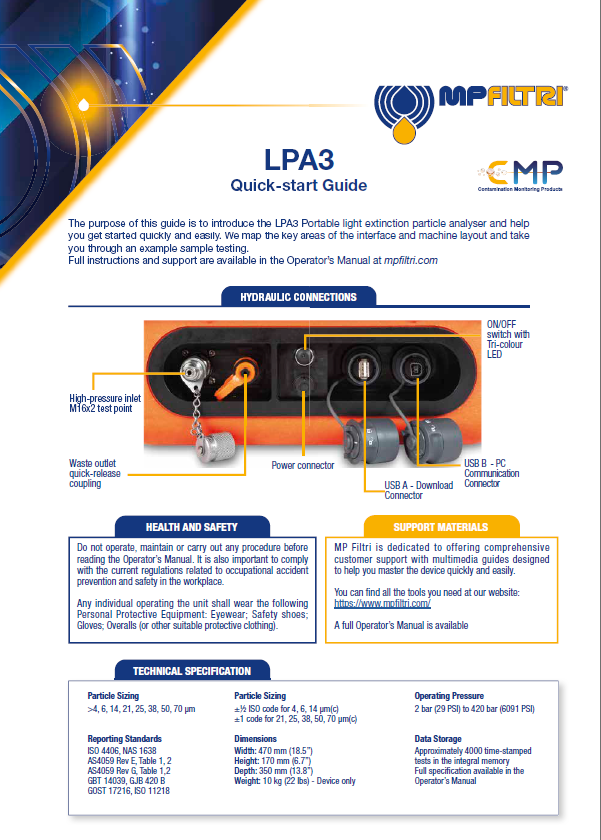

CMP View-Software - Quick-start Guide
LPA View Software Use and maintenance manual

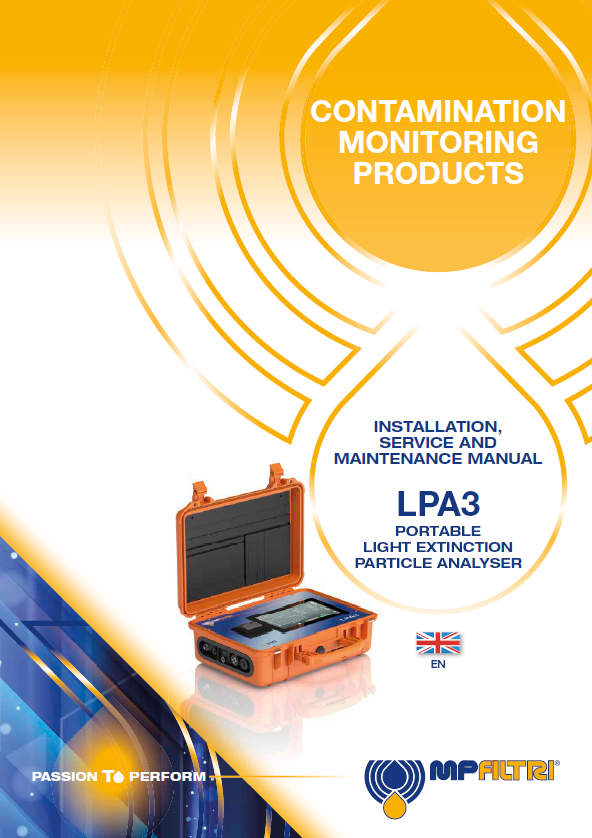

LPA3 Use and maintenance manual
BROCHURES
Contamination Control Solutions

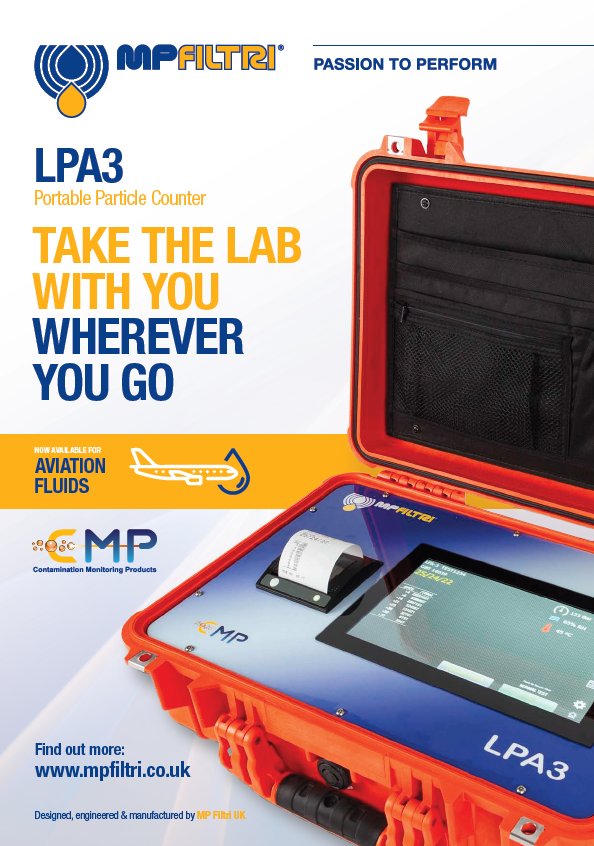

LPA3 compact portable APC
