FHF 325

High pressure filter housing according to SAE J2066 standard for HF4 filter elements. Working pressure up to 350 bar (5076 psi), flow rates up to 500 l/min (132 gpm), threaded connections 1 1/2” BSP/NPT/SAE and SAE code 62 flanged connections 1 1/2”, manifold connections diam. 1.38" and 1.5".

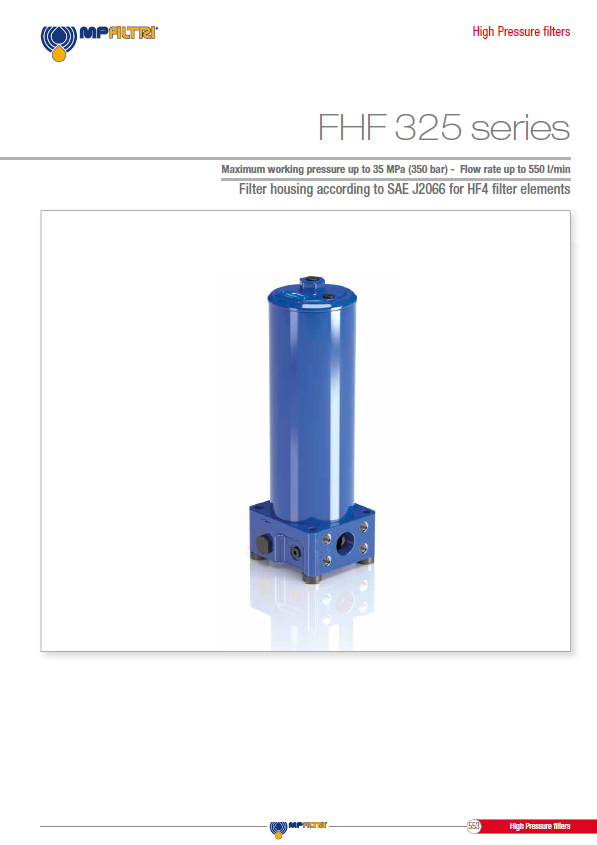

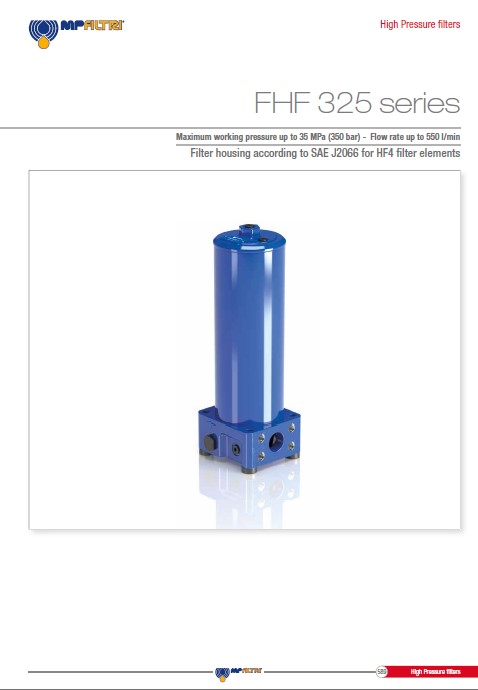

FILTER SIZING 3D DOWNLOAD TECHNICAL BROCHURE

FEATURES & BENEFITS

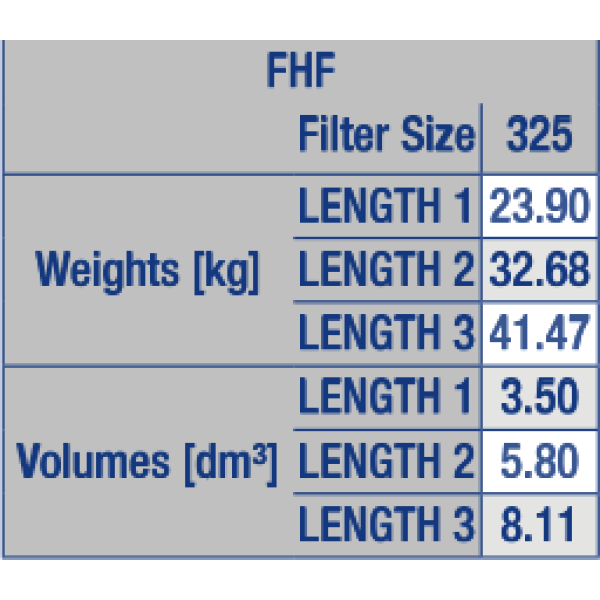

TECHNICAL DATA
LITERATURE
VIDEO

In-line or manifold mount high pressure filter designed to meet HF4 automotive standard with a wide range of element media options in 9", 18" or 27" length with bowl up housing for ease of element change and minimize oil spillage.

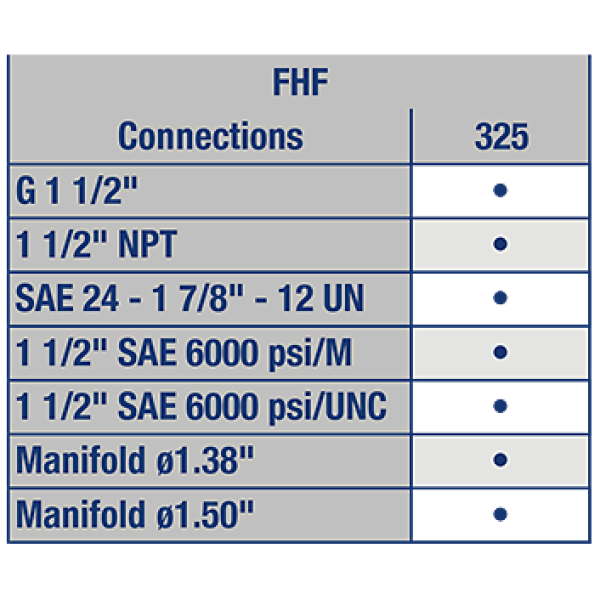

CONNECTIONS

FHF325
