Mobile transfer and filtration unit of 50 l/min

REGISTRATION

INFO

REQUEST INFO

UFM 051

• The UFM051 is a mobile transfer and filtration unit
• Easy to handle thanks to the use of four wheels and an ergonomic handle
• It uses a LMP filter series of two lengths: standard and increased

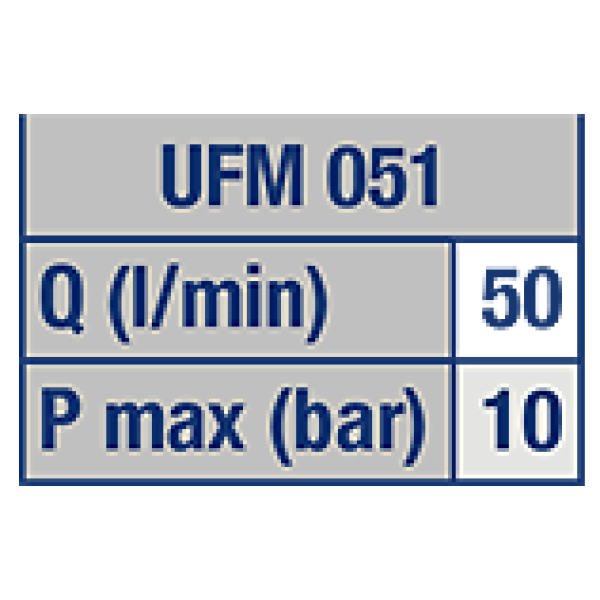

• Flow rate 50 l/min
• Max working pressure 10bar
• Single-phase and three-phase electric motor
• Available with online contamination monitoring (ICM2.0)

3D DOWNLOAD TECHNICAL BROCHURE

FEATURES & BENEFITS
TECHNICAL DATA
LITERATURE

• Four (4) wheels and integrated handle for handling

• Easy to use

• High flow rate pump

• Easy maintenance thanks to the LMP filter series

• Suction filter to protect the pump

• LMP filter available in two lengths (5 and 6) for a greater filtering surface

• Absolute filtration

• Wide selection of filter media

• Version with three-phase motor for continuous and prolonged use

• Visual differential gauge plus pressure gauge to monitor the pressure in the line

• Electric differential gauge plus pressure gauge to monitor the pressure in the line

• New ICM2.0 series particle counter with integrated second motor pump unit

CONNECTIONS

UFM051

BROCHURES

Contamination Control Solutions

Product range

Water Removal

CATALOGUES

Contamination Control Solutions

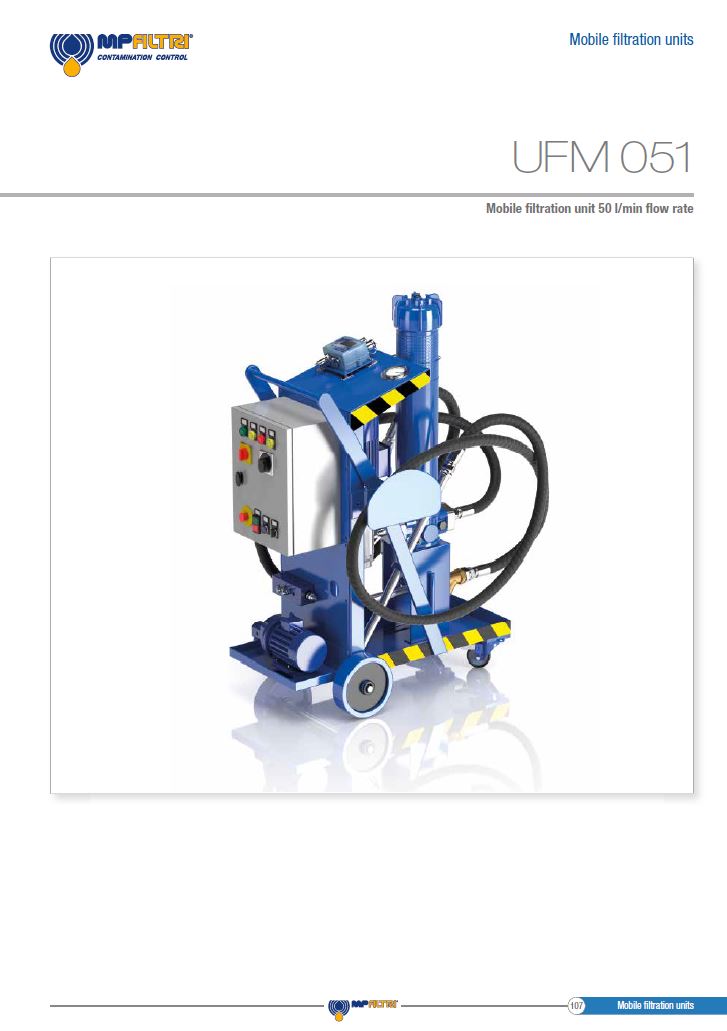

UFM051 mobile filtration unit

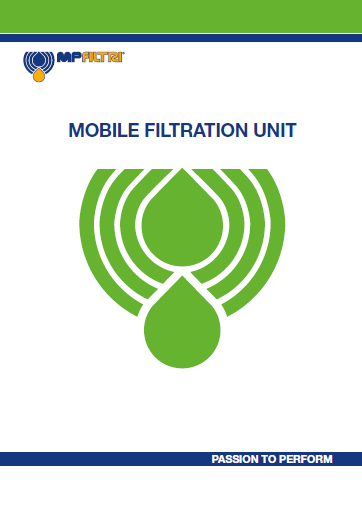

Mobile Filtration Units

MANUALS

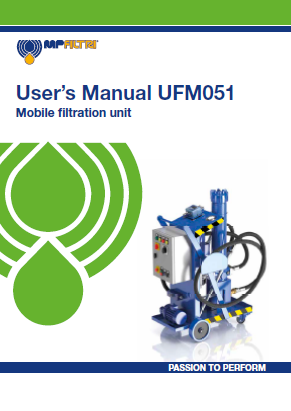

UFM series Use and Maintenance Manual - Mobile transfer and Filtration unit
