Mobile transfer and filtration unit for high volumes (90 l/min)

REGISTRATION

INFO

REQUEST INFO

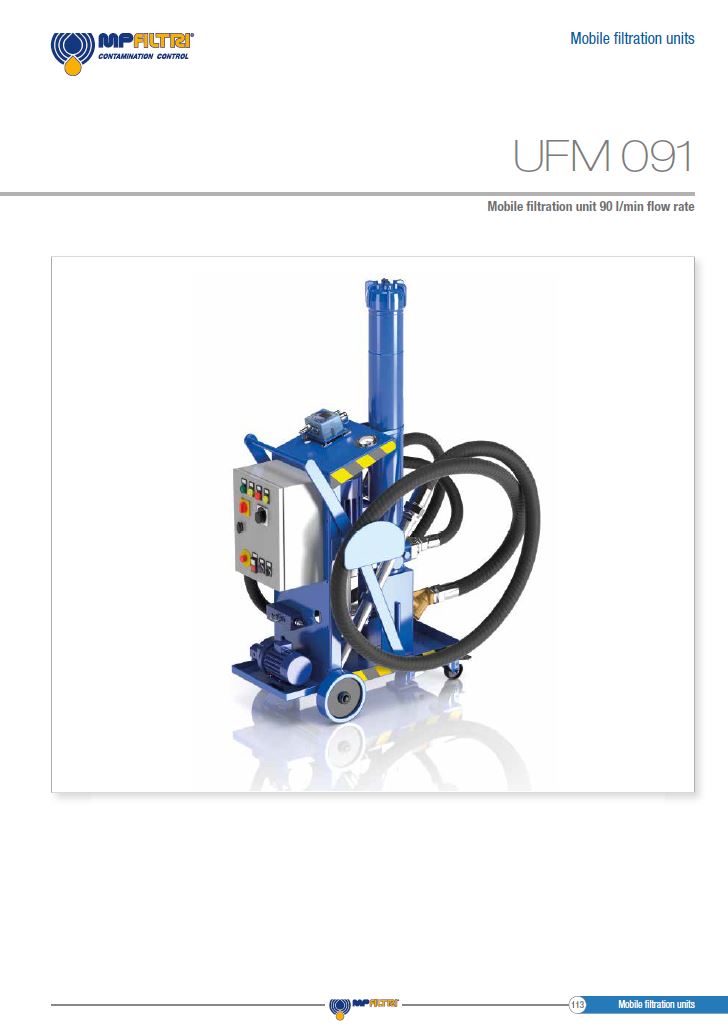

UFM 091

• The UFM091 is a mobile transfer and filtration unit for important volumes (> 1000lt)
• Easy to handle thanks to the use of four wheels and an ergonomic handle
• Use an LMP filter series with increased length

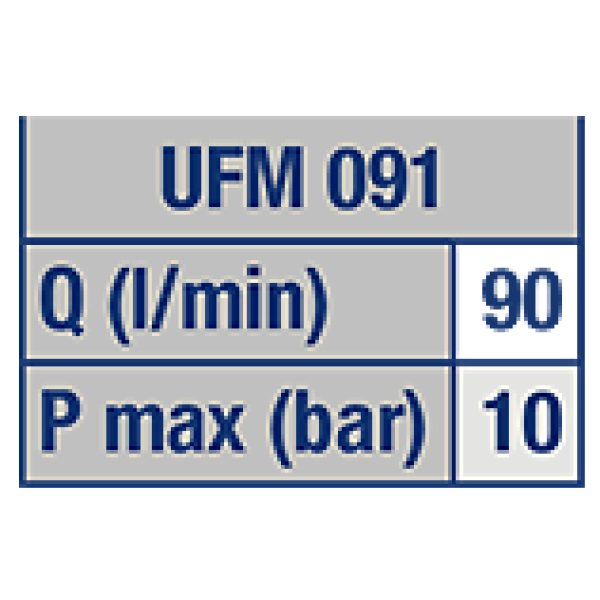

• Flow rate 90 l/min
• Max working pressure 10bar
• Three-phase electric motor
• Available with online contamination monitoring (ICM2.0)

3D DOWNLOAD TECHNICAL BROCHURE

FEATURES & BENEFITS
TECHNICAL DATA
LITERATURE

• Four (4) wheels and integrated handle for handling

• Easy to use

• Screw pump for high flow rates and the lowest noise level

• Easy maintenance thanks to the LMP filter series

• Suction filter to protect the pump

• LMP filter length 6 for a greater filtering surface

• Absolute filtration

• Wide selection of filter media

• Version with three-phase motor for continuous and prolonged use

• Visual differential gauge plus pressure gauge to monitor the pressure in the line

• Electric differential gauge plus pressure gauge to monitor the pressure in the line

• New ICM2.0 series particle counter with integrated second motor pump unit

DATA

UFM091

BROCHURES

Contamination Control Solutions

Product range

Water Removal

CATALOGUES

Contamination Control Solutions

UFM091 mobile filtration unit

Mobile Filtration Units

MANUALS

UFM series Use and Maintenance Manual - Mobile transfer and Filtration unit
