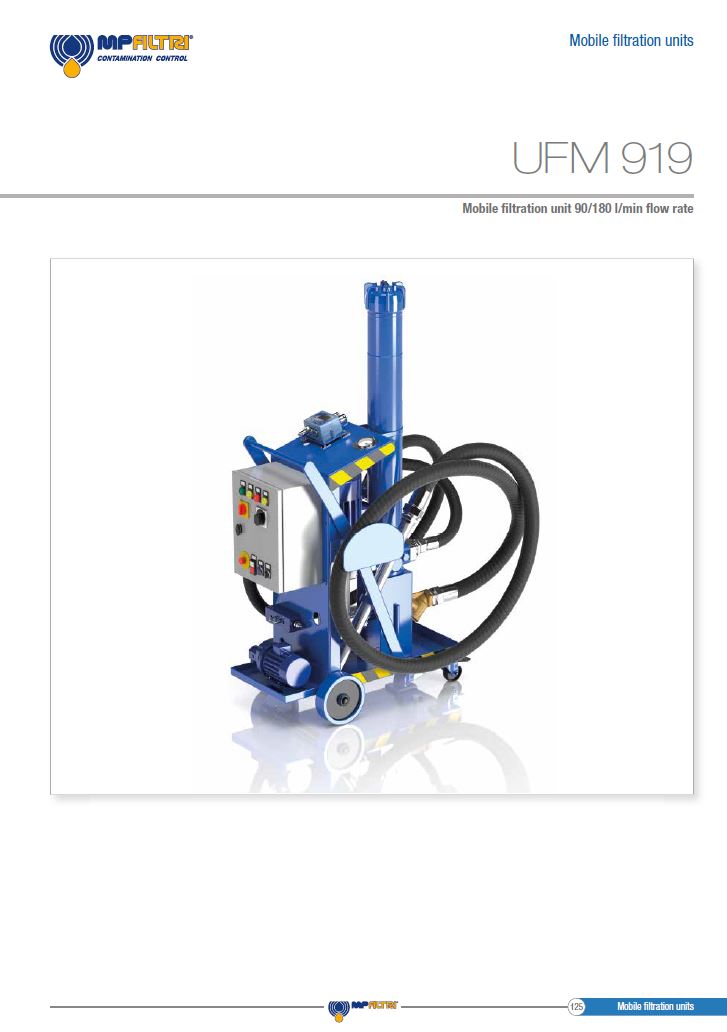

UFM 919

• The UFM919 is a mobile transfer and filtration unit for very large volumes (1,800/2,700lt)
• Easy to handle thanks to the use of four wheels and an ergonomic handle
• Use an LMP filter series with increased length
• Flow rate 90l/min and 180 l/min
• Max working pressure 10bar
• Three-phase electric motor
• Available with online contamination monitoring (ICM2.0)

• Four (4) wheels and integrated handle for handling

• Easy to use

• Screw pump for high flow rates and the lowest noise level

• Dual programmable speed of the electric motor for two different flow rates

• Easy maintenance thanks to the LMP filter series

• Suction filter to protect the pump

• LMP filter length 6 for a greater filtering surface

• Absolute filtration

• Wide selection of filter media

• Version with three-phase motor for continuous and prolonged use

• Electric differential gauge plus pressure gauge to monitor the pressure in the line

• New ICM2.0 series particle counter with integrated second motor pump unit

LITERATURE

BROCHURES

AGRICULTURE & FORESTRY

Water Removal

Product range

CATALOGUES

UFM919 mobile filtration unit

Mobile Filtration Units

MANUALS

Quick Guide UFM

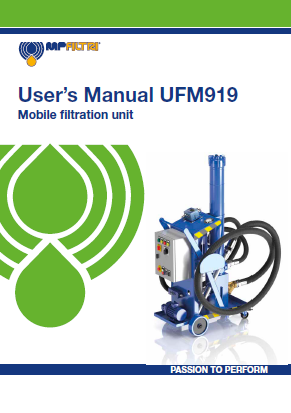

UFM 919 series Use and Maintenance Manual - Mobile transfer and Filtration unit
