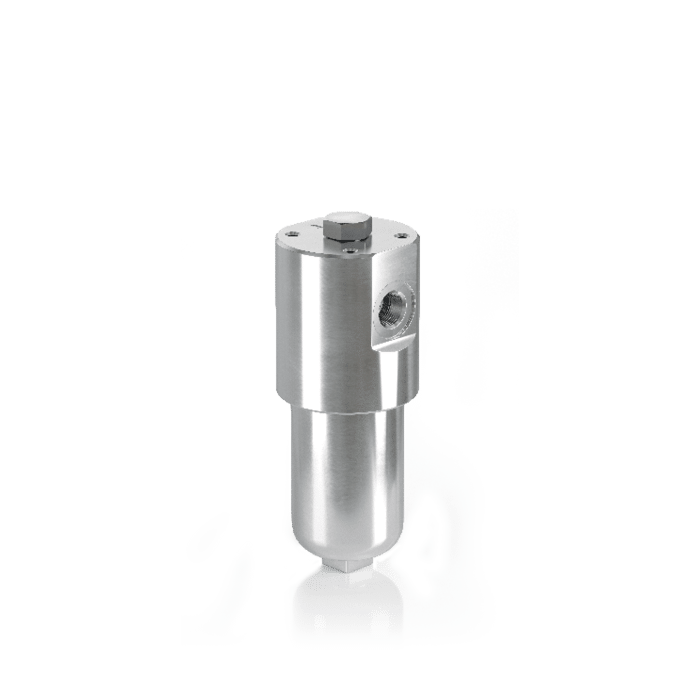

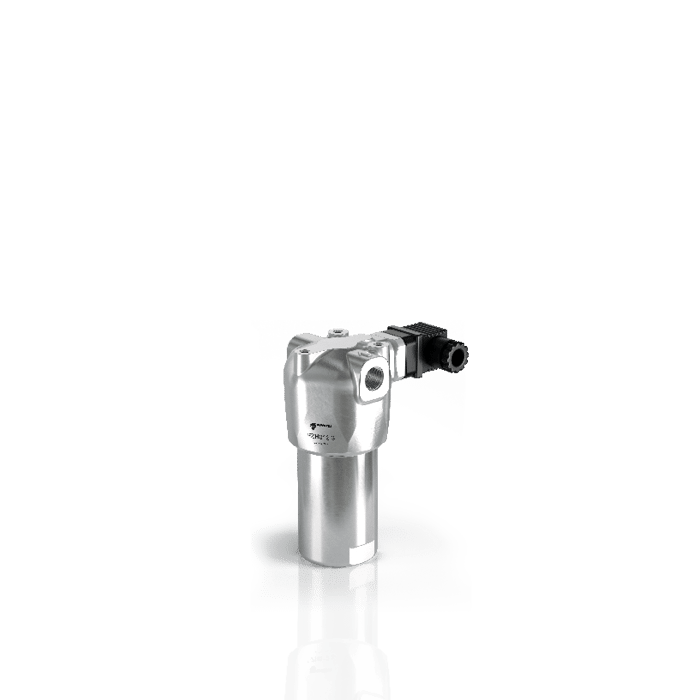

FZH – ATEX

In-line stainless steel pressure filter. Threaded connections from 1/4” to 1/2″” BSP/NPT/SAE.

High pressure, low flow stainless steel filter for various fluid applications and arduous conditions.
They can be mounted in potentially explosive areas as they are certified ATEX2014/34/EU – Category 2G – Areas 1 – 2 certified and U.K. Regulation S.I. 2016 No. 1107.

Stainless steel construction ensures peak protection when operating in corrosive environments or aggressive fluids. High pressure stainless steel Filters are used to protect individual valves or the entire hydraulic circuit from contamination.

Filter with NBR seal in configuration ZEROSPARK

II 3G Ex h IIC T6 Gc X

II 3D Ex h IIIC T85°C Dc X

Ambient

temperature Max fluid

temperature Temperature

class Max surface

temperature

15 °C ÷ +80 °C +80 °C T6 T85 °C

Filter with FPM / MFQ seal in configuration ZEROSPARK

II 3G Ex h IIC T6… T4 Gc X

II 3D Ex h IIIC T85°C…T115°C Dc X

Ambient

temperature Max fluid

temperature Temperature

class Max surface

temperature

-15 °C ÷ +80 °C +80 °C T6 T85 °C

-15 °C ÷ +95 °C +95 °C T5 T100 °C

-15 °C ÷ +110 °C +110 °C T4 T115 °C

See the relevant table for compatibility on fluids.
