FZP – ATEX

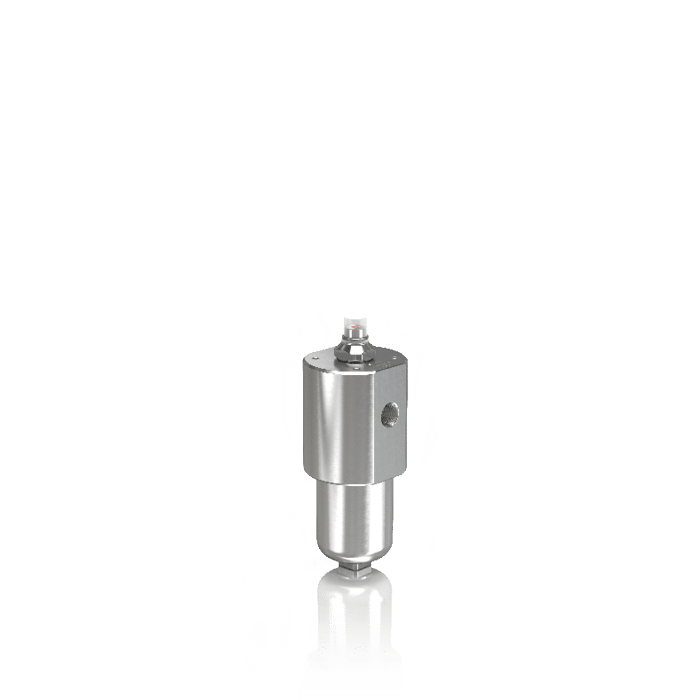

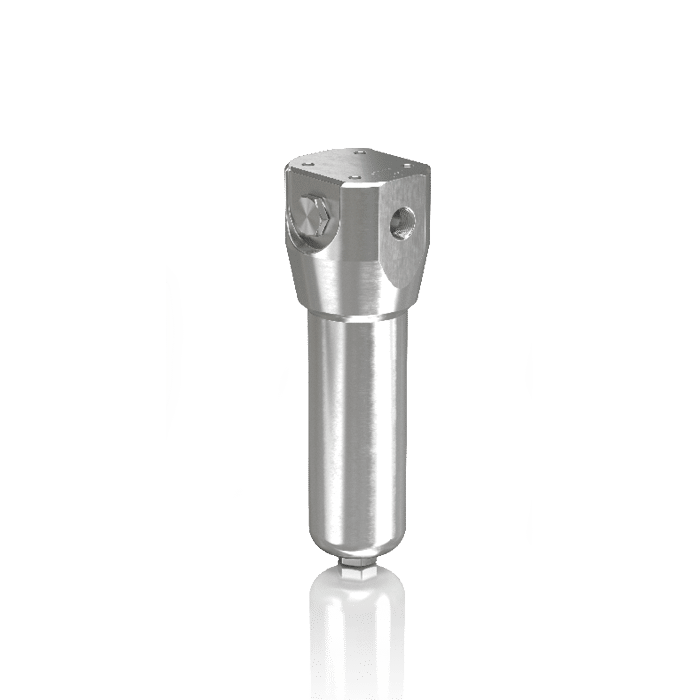

In-line stainless steel pressure filter. Threaded connections from 1/2” to 1 1/4″” BSP/NPT/SAE.

High pressure low flow stainless steel filter for various fluid applications and arduous conditions
They can be mounted in potentially explosive areas as they are certified ATEX2014/34/EU – Category 2G – Areas 1 – 2 certified and U.K. Regulation S.I. 2016 No. 1107.

Stainless steel filters suitable for low temperature applications, corrosive environments and or special fluids found in the offshore oil industry and demanding hydraulic applications.

Filter with NBR seal in configuration ZEROSPARK:

II 3G Ex h IIC T6 Gc X

II 3D Ex h IIIC T85°C Dc X

Ambient temperature: 15 °C ÷ +80 °C

Max fluid temperature: +80 °C

Temperature class: T6

Max surface temperature: T85°C

Filter with FPM / MFQ seal in configuration ZEROSPARK:

II 3G Ex h IIC T6… T4 Gc X

II 3D Ex h IIIC T85°C…T115°C Dc X

Ambient temperature: 15 °C ÷ +80 °C / -15 °C ÷ +95 °C / -15 °C ÷ +110 °C

Max fluid temperature: +80 °C /+95 °C / +110 °C

Temperature class: T6 / T5 / T4

Max surface temperature: T85°C / T100 °C / T115 °C

See the relevant table for compatibility on fluids.
