FTU

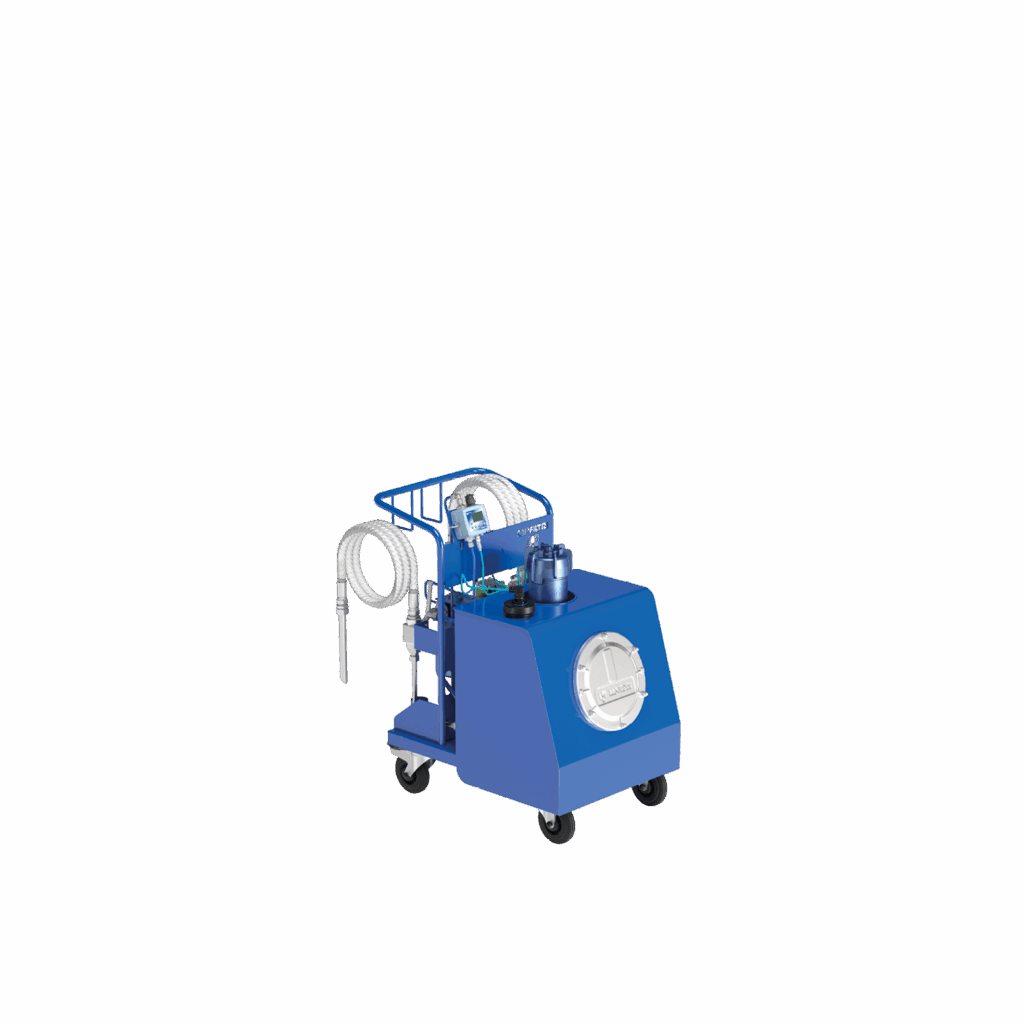

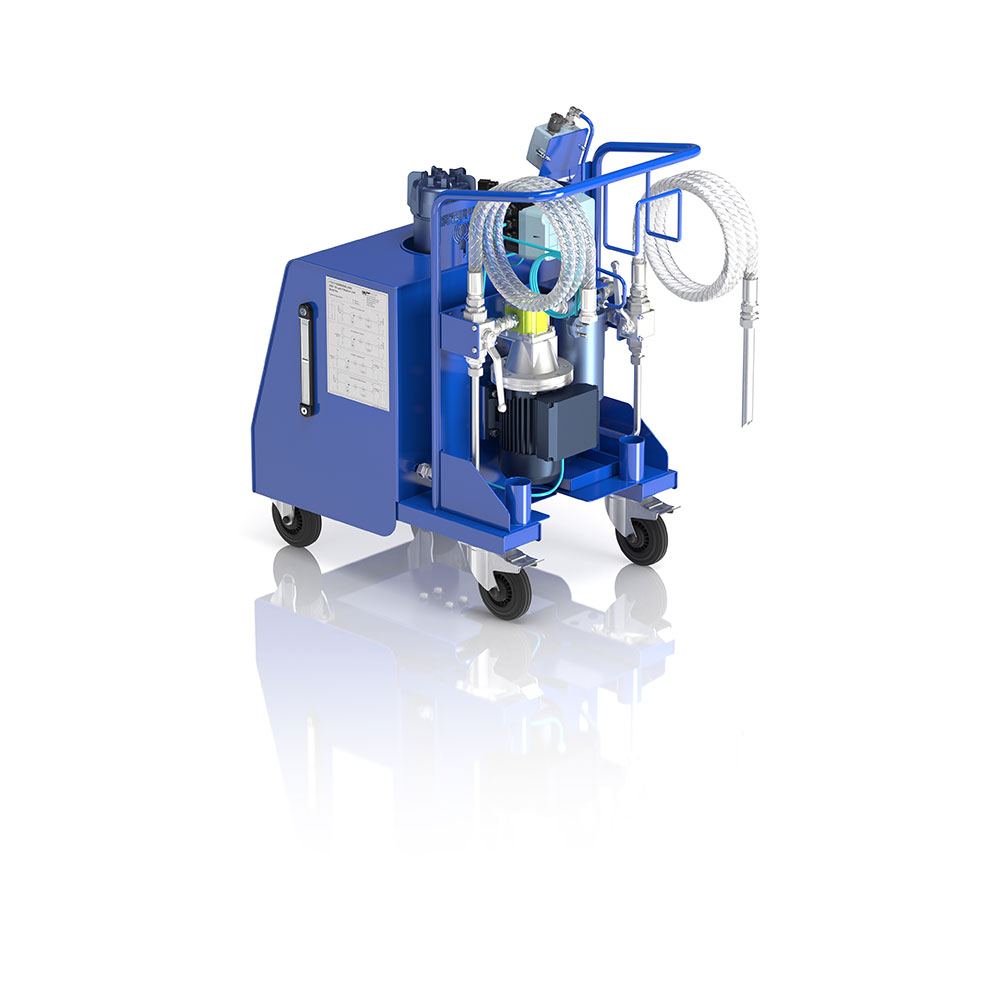

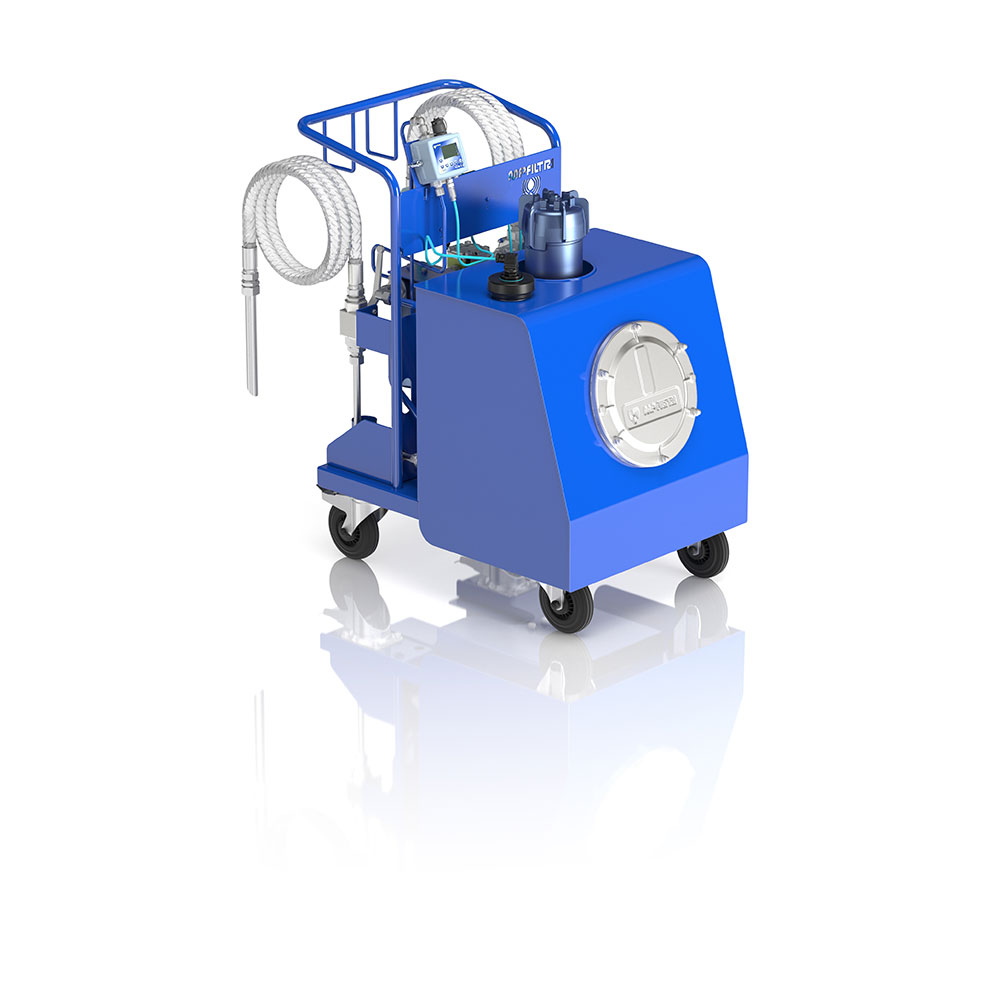

Fluid Transfer unit suitable for filling, recirculation – via onboard reservoir – and emptying of filtered hydraulic fluids and lubrication tanks. The FTU can be utilized either as additional filtration to a system with a high incidence of contamination, or can be used as a standalone recirculating filtration circuit to clean fluid to a predetermined contamination level – monitored by the onboard ICM – prior to transfer of fluid to the system.

• Electric control box
• Indicators:

  LMP filter with electric cut out switch

  Tank level gauge and electric level cut out switch

• Nitrile seals
• Flexible hoses 2 metres long, in suction and outlet
• Inlet pump protection:

  250mm suction strainer- metal mesh fitted to the inlet hose

  250mm suction strainer- metal mesh fitted inside the tank to the pump suction line

• Delivery filtration:

  LMP filter series

  Water removal “Spin-on” filter type

  Standard “Spin-on” filter type

• In-line contamination monitor (ICM)
• Compact size
• Easy to use and easy maintenance
• Reliable
