BELL-HOUSING
LMG

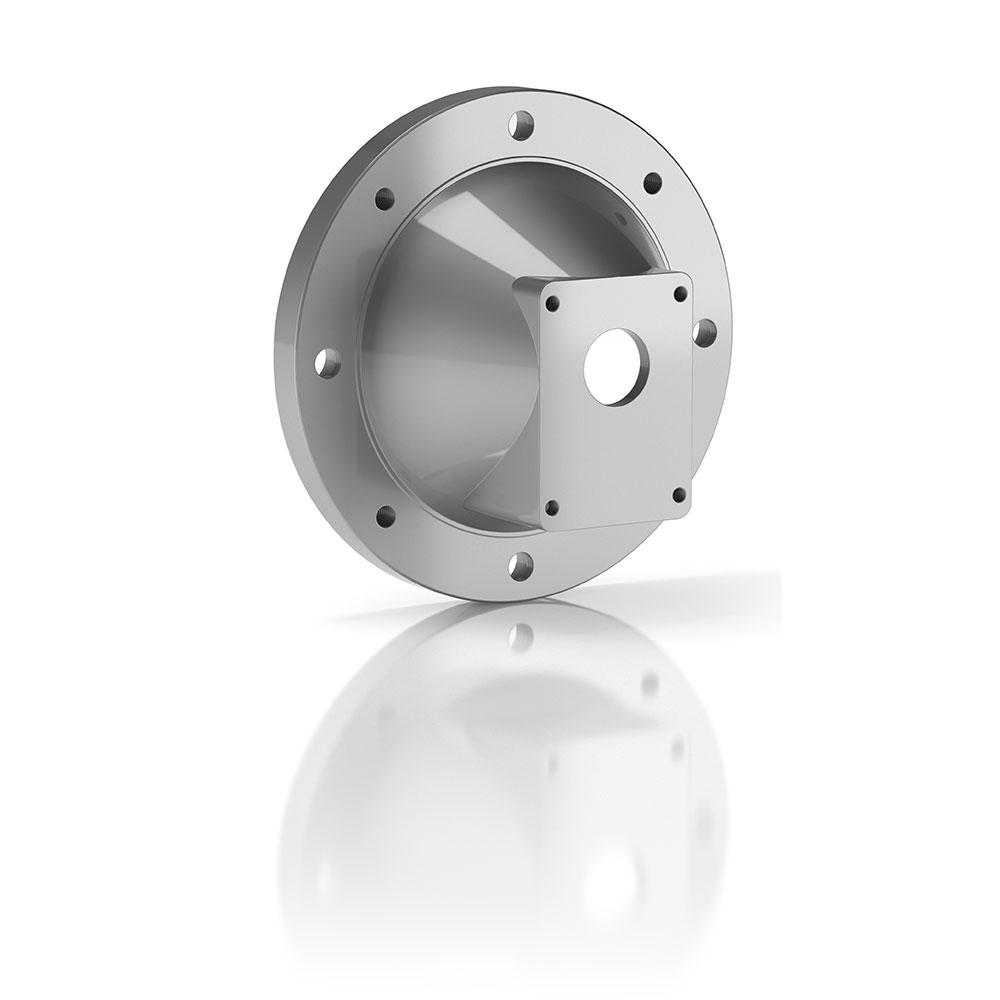

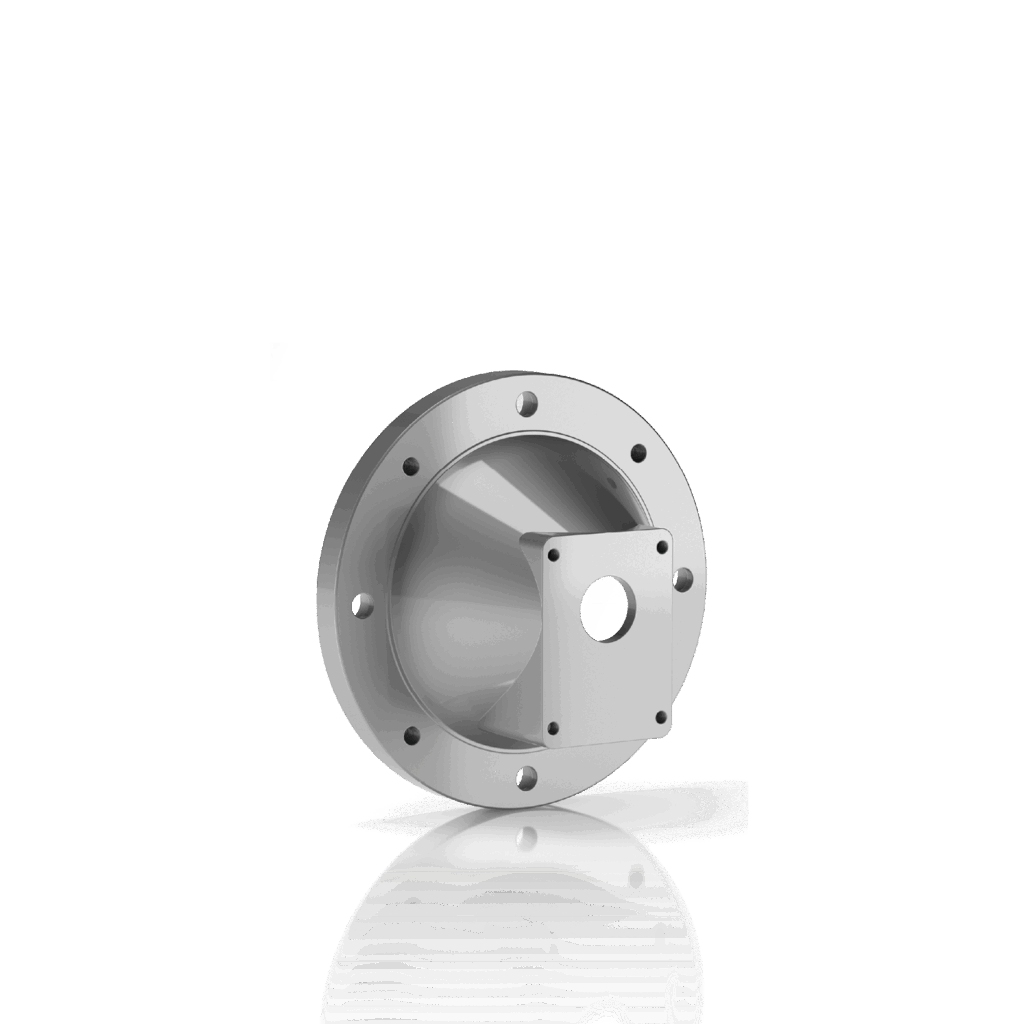

The bell housings LMG series are used as connection between IEC electrical motors from size 63 to 225 and gear pumps with rectangular flange. Made in die cast aluminum, they can be used for external mounting or for oil immersion applications.
-
With or without centering ring
-
Double drilling pump on request
-
Interchangeable with OMT – KTR – R+L HYDRAULICS
Applications
Industrial equipment
Mobile equipment
Download
LMG

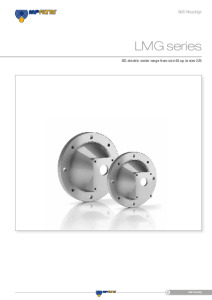

Catalog
PDF | 0.62 MB
AGRICULTURE & FORESTRY
Brochure
PDF | 1.51 MB
CONSTRUCTION & MATERIAL PROCESSING
Brochure
PDF | 1.56 MB
OIL & GAS
Brochure
PDF | 1.53 MB
WIND
Brochure
PDF | 1.52 MB
Related Products
Bell housings for Internal Combustion Engines
LME - LMEK (GKS Coupling)
Suitable for use with group 1 and group 2 gear pumps, as well as SAE A flange pumps and for Internal Combustion Engines from 3 – 35 Hp.
Low noise bell housings
LMS-LDS
Single & 2-piece bell-housings which reduce noise levels by up to 5dB(A) ideal for noise-sensitive environments, available for IEC electric motor range from size 100 up to size 315
Multi-components bell housings for pumps with ISO2019 or SAE flange
MULTI-COMPONENTS
Ideal for larger applications, our full line of components allow a wide range of motor & pump combinations to be connected with relatively few piece parts, suitable for IEC electric motor range from size 132 up to size 355
