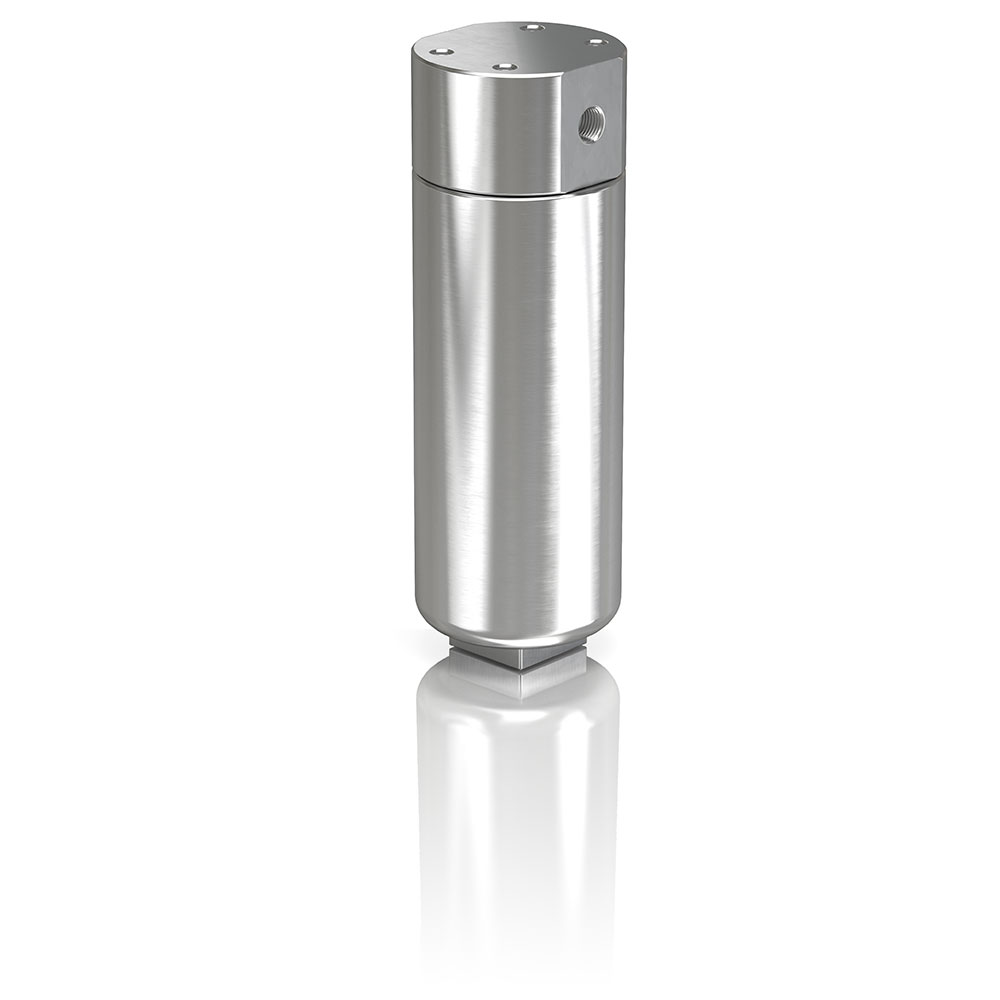

FZX – ATEX

In-line stainless steel pressure filter with threaded mount. Threaded connections from 1/4” to 1/2″” BSP/NPT and from 9/16″” to 3/4″” UNF/NPS for autoclave.
Very high pressure, low flow stainless steel filter for various fluid applications and arduous conditions.
They can be mounted in potentially explosive areas as they are certified ATEX2014/34/EU – Category 2G – Areas 1 – 2 certified and U.K. Regulation S.I. 2016 No. 1107.

Stainless steel filters suitable for low temperature applications, corrosive environments and or special fluids found in the offshore oil industry and demanding hydraulic applications up to 1000 bar.

Filter with NBR seal in configuration ZEROSPARK

II 3G Ex h IIC T6 Gc X

II 3D Ex h IIIC T85°C Dc X

Ambient

temperature Max fluid

temperature Temperature

class Max surface

temperature

15 °C ÷ +80 °C +80 °C T6 T85 °C

Filter with FPM / MFQ seal in configuration ZEROSPARK

II 3G Ex h IIC T6… T4 Gc X

II 3D Ex h IIIC T85°C…T115°C Dc X

Ambient

temperature Max fluid

temperature Temperature

class Max surface

temperature

-15 °C ÷ +80 °C +80 °C T6 T85 °C

-15 °C ÷ +95 °C +95 °C T5 T100 °C

-15 °C ÷ +110 °C +110 °C T4 T115 °C

See the relevant table for compatibility on fluids.
