MOBILE FILTRATION UNITS

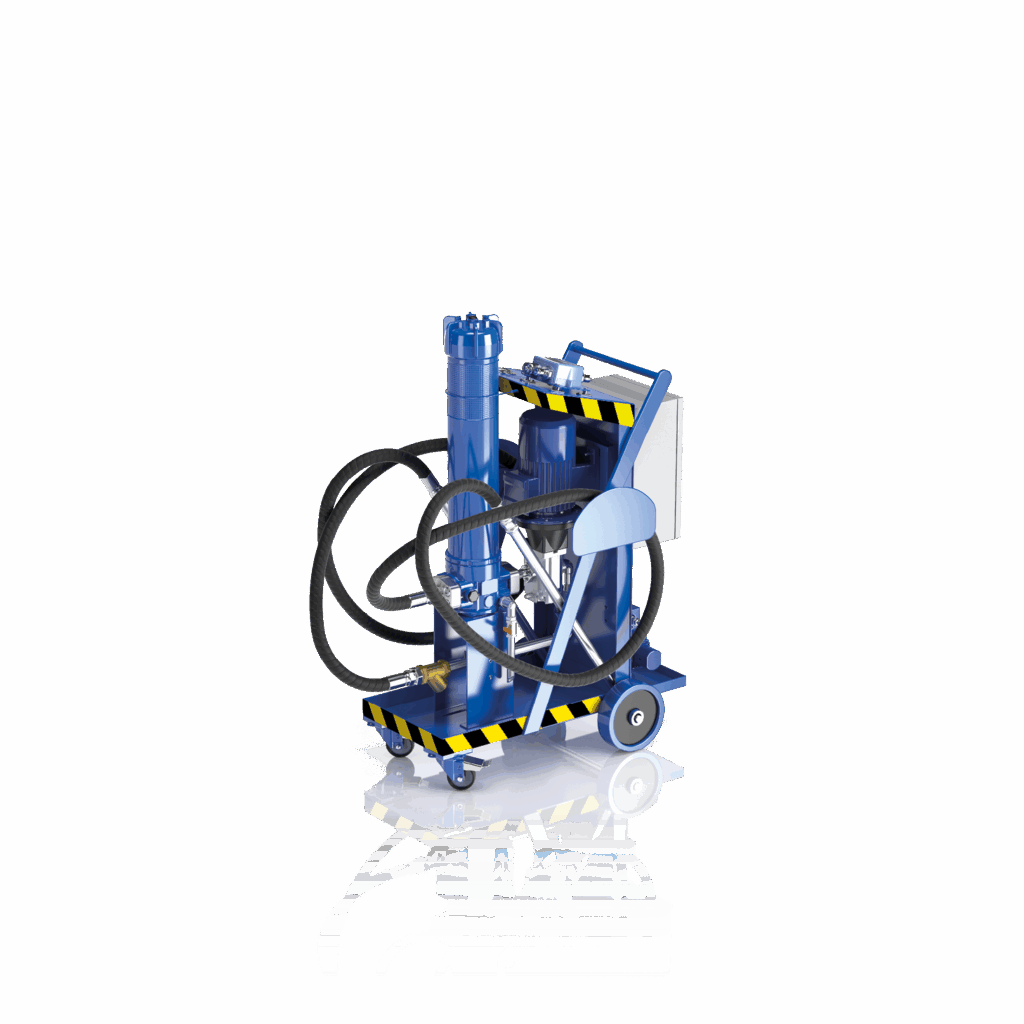

UFM051

  • The UFM051 is a mobile transfer and filtration unit

  • Easy to handle thanks to the use of four wheels and an ergonomic handle

  • It uses a LMP filter series of two lengths: standard and increased

  • Flow rate 50 l/min

  • Max working pressure 10bar

  • Single-phase and three-phase electric motor

  • Available with online contamination monitoring (ICM2.0)

  • Four (4) wheels and integrated handle for handling

  • Easy to use

  • High flow rate pump

  • Easy maintenance thanks to the LMP filter series

  • Suction filter to protect the pump

  • LMP filter available in two lengths (5 and 6) for a greater filtering surface

  • Absolute filtration

  • Wide selection of filter media

  • Version with three-phase motor for continuous and prolonged use

  • Visual differential gauge plus pressure gauge to monitor the pressure in the line

  • Electric differential gauge plus pressure gauge to monitor the pressure in the line

  • New ICM2.0 series particle counter with integrated second motor pump unit

Download

UFM051

Catalog

PDF | 2.45 MB
