HYDRAULIC FILTRATION

LOW AND MEDIUM PRESSURE FILTERS

Designed as in-line return, pressure or off-line recirculation filtration protecting the most sensitive hydraulic system components. Boasting a robust design and a wide choice of options, the LMP series offers a diverse range of housing models and elements to suit low to high flow rates and maximum circuit protection. LMP filters are available as in-line threaded, in-line multi-ported and flanged connections to integrated into circuit control blocks, manifolds/headers. LMP filters are also available in duplex configurations for continuous filtration without any system service interruptions.

Download

LOW AND MEDIUM PRESSURE FILTERS

CATALOG

PDF | 14.35 MB

LMP 112-116-118-119-120-122-123 MULTIPORT

Pmax 80 bar, 1160 psi Qmax 175 l/m, 46 gpm.

Inverted low pressure / very high flow rate filter

LMP 950 - 951

Pmax 30 bar, 435 psi Qmax 2400 l/m, 634 gpm.

In-line duplex filter (16 bar), medium flow rate

LMD 400 - 401 - 431

Pmax 16 bar, 232 psi Qmax 600 l/m, 159 gpm.

LMP 210 - 211

Pmax 60 bar, 870 psi Qmax 365 l/m, 96 gpm.

Low pressure / very high flow rate filter in parallel

LMP 952 - 953 - 954

Pmax 25 bar, 363 psi Qmax 4500 l/m, 1189 gpm.

In-line Medium pressure simplex

LDP

Pmax 60 bar, 870 psi Qmax 360 l/m, 95 gpm

In-line Medium pressure duplex filters

LDD

Pmax 60 bar, 870 psi Qmax 360 l/m, 95 gpm.

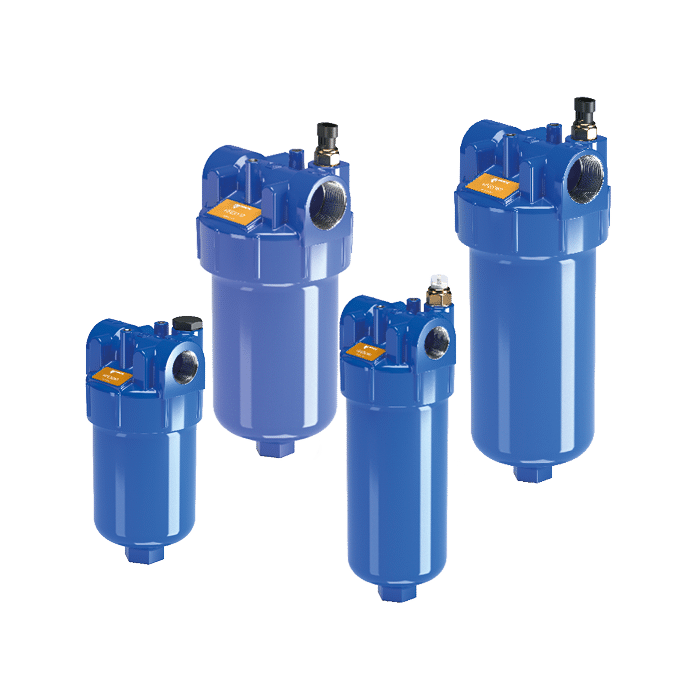

HFEX (Elixir®)

working pressure up to 3.5 MPa (35 bar), flow rates up to 300 l/min (79 gpm)

Medium pressure / high flow rate filter

LMP 430 - 431

Pmax 60 bar, 870 psi Qmax 780 l/m, 206 gpm.

LFEX (Elixir®)

Pmax 16 bar, 232 psi Qmax 300 l/m, 79 gpm.

In-line duplex filter (60 bar)

LMD 211

Pmax 60 bar, 870 psi Qmax 200 l/m, 53 gpm.

Duplex (16 bar), high flow rate, upside down mounting

LMD 951

Pmax 16 bar, 232 psi Qmax 1200 l/m, 317 gpm.
