UFM181

UFM181

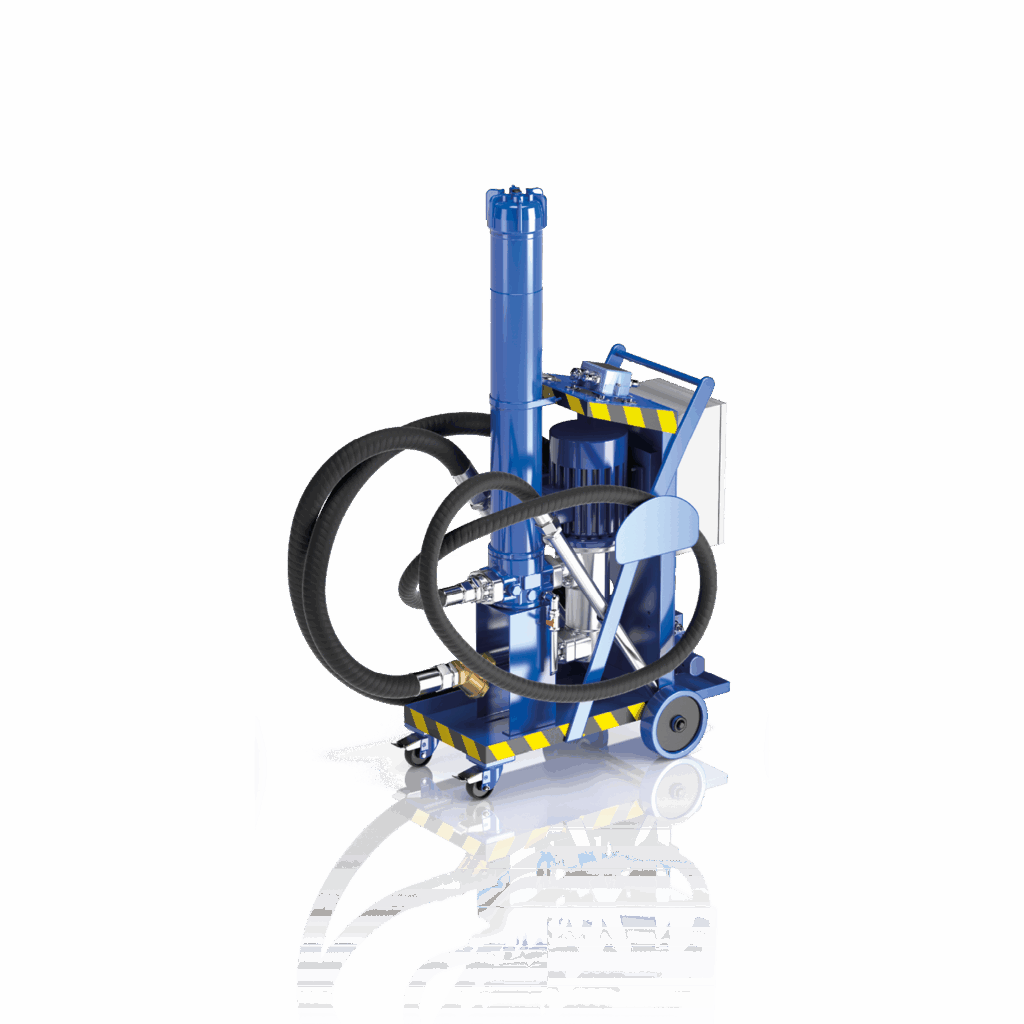

• The UFM181 is a mobile transfer and filtration unit for very large volumes (1,800/2,700lt)

• Easy to handle thanks to the use of four wheels and an ergonomic handle

• Use an LMP filter series with increased length

• Flow rate 180 l/min

• Max working pressure 10bar

• Three-phase electric motor. Available with online contamination monitoring (ICM2.0)

• Four (4) wheels and integrated handle for handling

• Easy to use

• Screw pump for high flow rates and the lowest noise level

• Easy maintenance thanks to the LMP filter series

• Suction filter to protect the pump

• LMP filter length 6 for a greater filtering surface

• Absolute filtration. Wide selection of filter media

• Version with three-phase motor for continuous and prolonged use

• Electric differential gauge plus pressure gauge to monitor the pressure in the line

• New ICM2.0 series particle counter with integrated second motor pump unit
